Citrix ADC MPX
• Six 10/100/1000Base‑T RJ45 copper Ethernet Ports.
• Two 10G/1G SFP+ Ethernet Ports.
For information on the soware releases supported on the Citrix ADC hardware platforms, see
Hardware Soware Release Matrix.

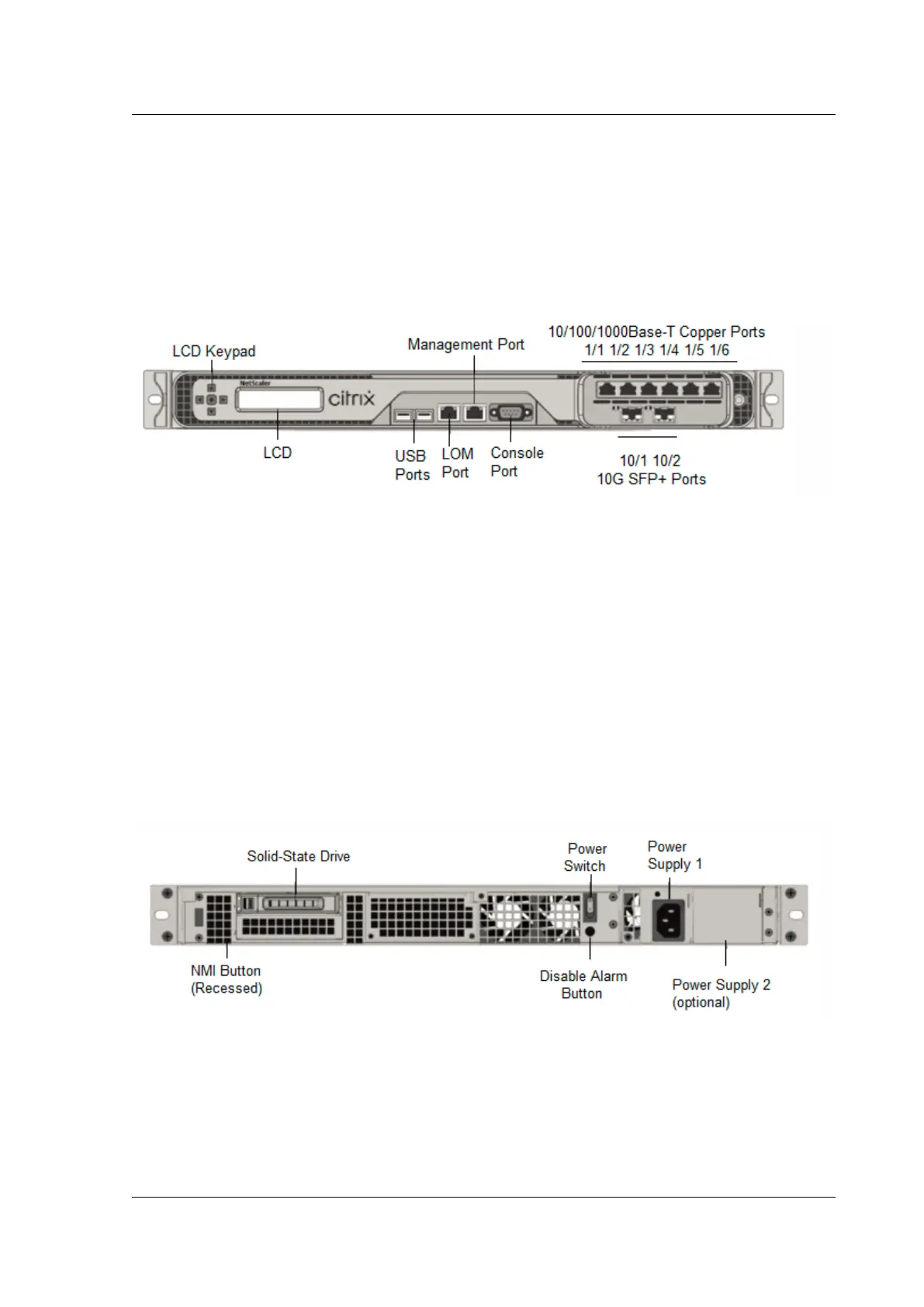

The following figure shows the front panel of the MPX 5900 appliance.
Figure 1. Citrix ADC MPX 5900, front panel
The Citrix ADC MPX 5900 appliances have the following ports:
• RS232 serial Console Port.
• One 10/100/1000Base‑T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• One 10/100/1000Base‑T RJ45 copper Ethernet Management Port, numbered 0/1. This port is
used to connect directly to the appliance for Citrix ADC administration functions.
• Six 10/100/1000Base‑T RJ45 copper Ethernet Ports, numbered 1/1 to 1/6 from le to right.
• Two 10G/1G SFP+ Ethernet Ports, numbered 10/1 to 10/2 from le to right.
• USB port (reserved for a future release).
The following figure shows the back panel of the MPX 5900 appliance.
Figure 2. Citrix ADC MPX 5900, back panel
The following components are visible on the back panel of the MPX 5900 appliances:
• One 240 GB or larger removable solid‑state drive (SSD).
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
