The following figure shows the front panel of the MPX 14020/14030/14040/14060/14080 (16x10G SFP+)
appliance.

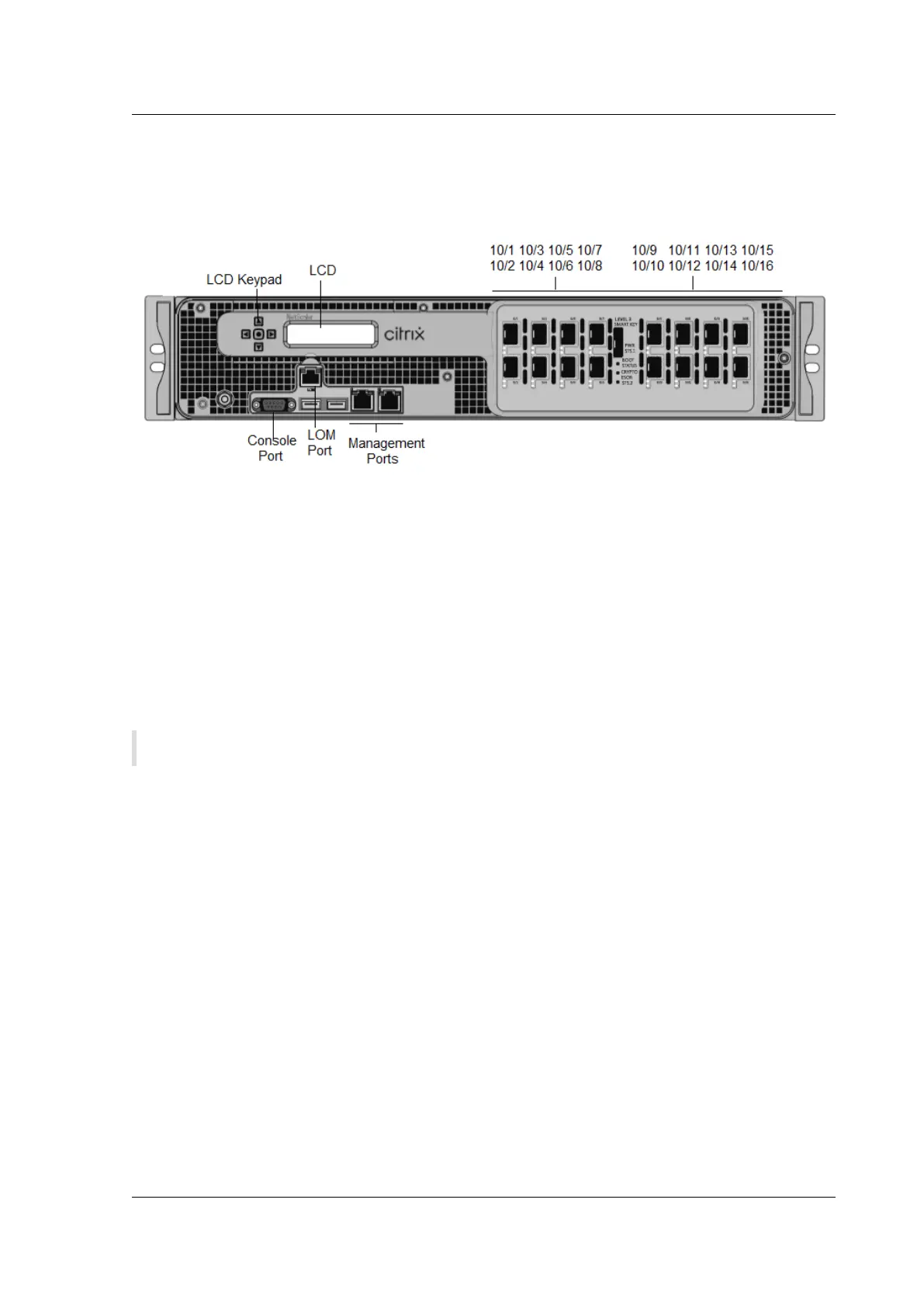

Figure 1. Citrix ADC MPX 14020/14030/14040/14060/14080/14100 (16x10G SFP+), front panel
The Citrix ADC MPX 14020/14030/14040/14060/14080/14100 appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base‑T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base‑T copper Ethernet Management Ports (RJ45), numbered 0/1and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Network Ports, sixteen 10G SFP+ ports (16x10G SFP+).
• USB port (reserved for a future release).
Note: The 10G SFP+ ports on these appliances support copper 1G SFP transceivers.
The following figure shows the back panel of the MPX 14020/14030/14040/14060/14080/ 14100 appli‑
ance.
Figure 2. Citrix ADC MPX 14020/14030/14040/14060/14080/14100, back panel
