Citrix ADC MPX
The Citrix ADC MPX 16000 series appliances have the following ports:
• RS232 serial Console port.
• One 10/100/1000Base‑T RJ45 copper Ethernet LOM port. Use this port to remotely monitor and
manage the appliance independently of the ADC soware.
• Two 10/100/1000Base‑T RJ45 copper Ethernet management ports, numbered 0/1 and 0/2.
These ports are used to connect directly to the appliance for ADC administration functions.
• Two USB ports (reserved for a future release).
• Eight 25G SFP28 ports, numbered 25/1 to 25/8. Four 100G QSFP28 ports, numbered 100/1 to
100/4. For information about supported transceivers per port, see 25G, 40G, 50G, and 100G
ports.

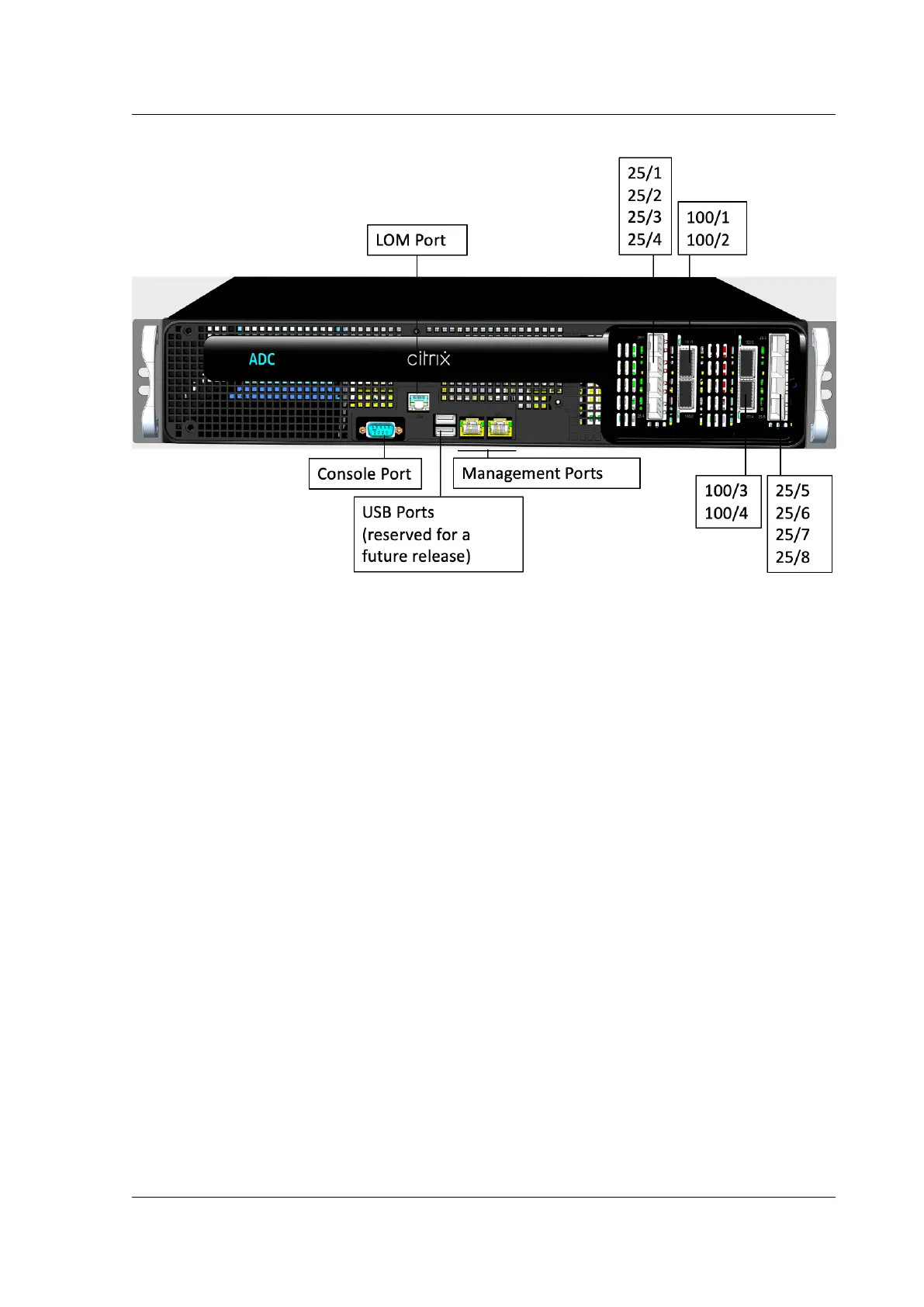

The following figure shows the back panel of the MPX 16000 appliance.
Figure 2. Citrix ADC MPX 16000, back panel
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 70
