Citrix ADC MPX
functions.
• Eight 50G ports, numbered 50/1 to 50/8.
• Sixteen 25G ports, numbered 25/1 through 25/16. Forinformationabout supported transceivers
per port, see 25G, 40G, 50G, and 100G ports.

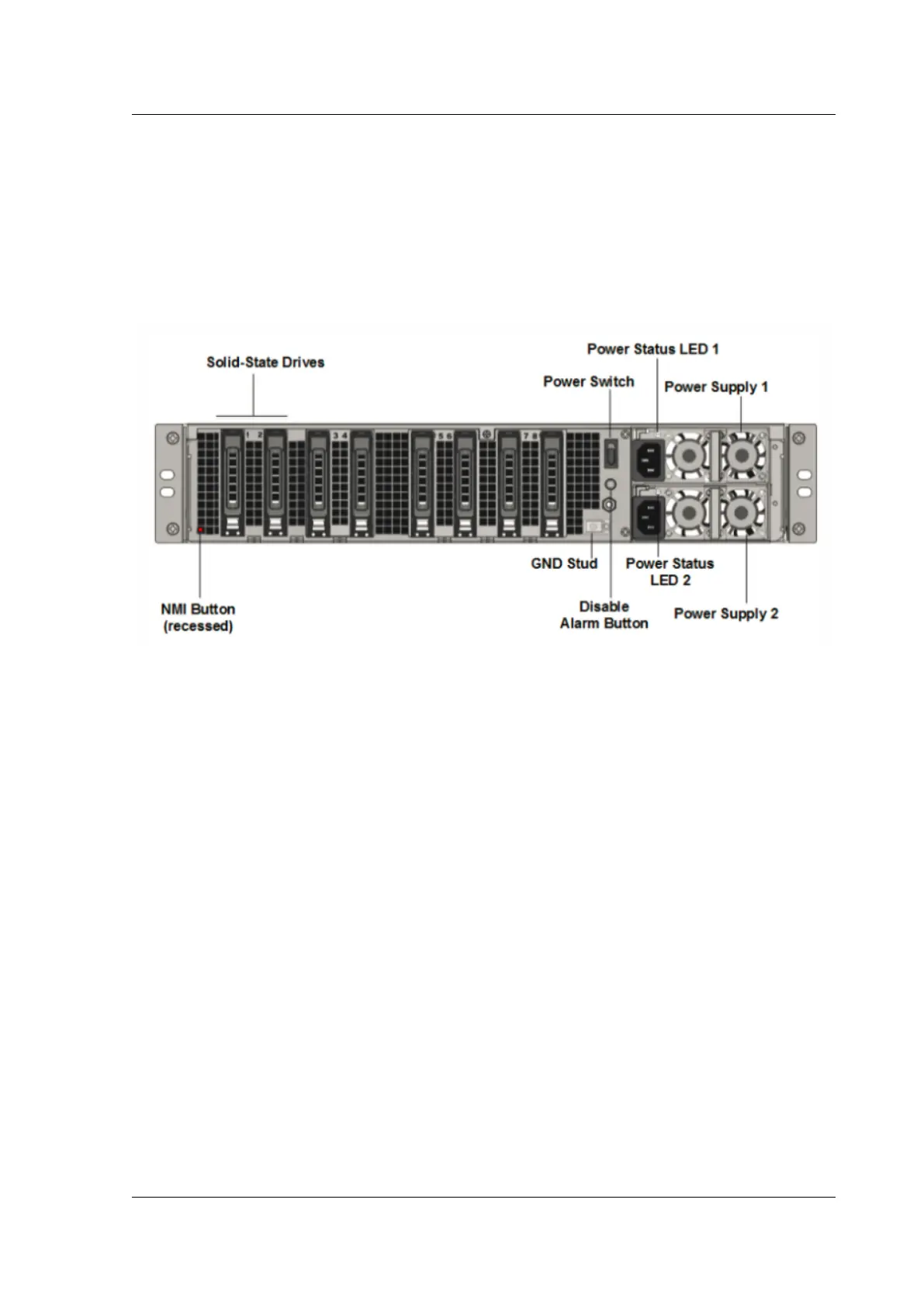

The following figure shows the back panel of the MPX 26000 appliances.
Figure 2. Citrix ADC MPX 26000, back panel
The following components are visible on the back panel of the Citrix ADC MPX 26000 appliances:
• Two 480 GB or larger removable solid‑state drives in a redundant array of independent disks
(RAID) configuration. In a RAID configuration, the same data is stored on multiple drives to im‑
prove performance, increase storage capacity, lower the risk of data loss, and provide fault tol‑
erance. The two SSDs store the same data. If one fails and you replace it, the new SSD mirrors
the other one.
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• Power switch, which turns power to the appliance on or o.
– Ifthe OS is functional, press the switch for less than two secondstopower down the system
with a graceful shutdown.
– If the OS is not responsive, press the power switch for more than 4 seconds to force the
power o.
• Two hot‑swappable 100–240 VAC, 1000 W power supply modules. Max power consumption is
672 W. Typical power consumption is 540 W. Each power supply has an LED indicating its status
as follows:
