Citrix ADC MPX
The Citrix ADC MPX 26000‑50S appliances have the following ports:
• RS232 serial console port.
• One 10/100/1000Base‑T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base‑T RJ45 copper Ethernet Management Ports, numbered 0/1 and 0/2.
These ports are used to connect directly to the appliance for Citrix ADC administration
functions.
• Four 50G ports, numbered 50/1 to 50/4.
• Sixteen 25G ports, numbered 25/1 through 25/16. Forinformationabout supported transceivers
per port, see 25G, 40G, 50G, and 100G ports.

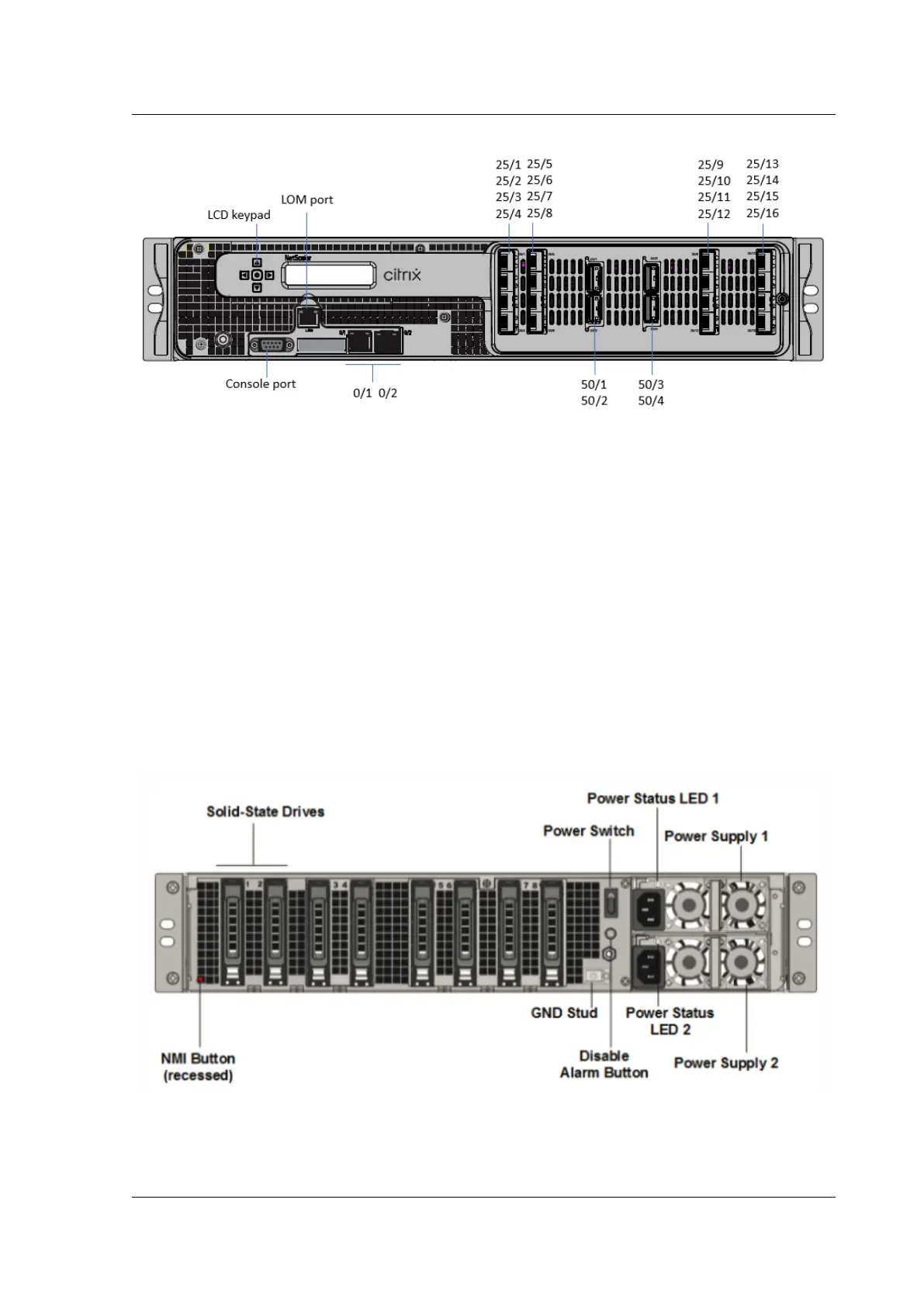

The following figure shows the back panel of the MPX 26000‑50S appliances.
Figure 2. Citrix ADC MPX 26000‑50S, back panel
The following components are visible on the back panel of the Citrix ADC MPX 26000‑50S appliances:
