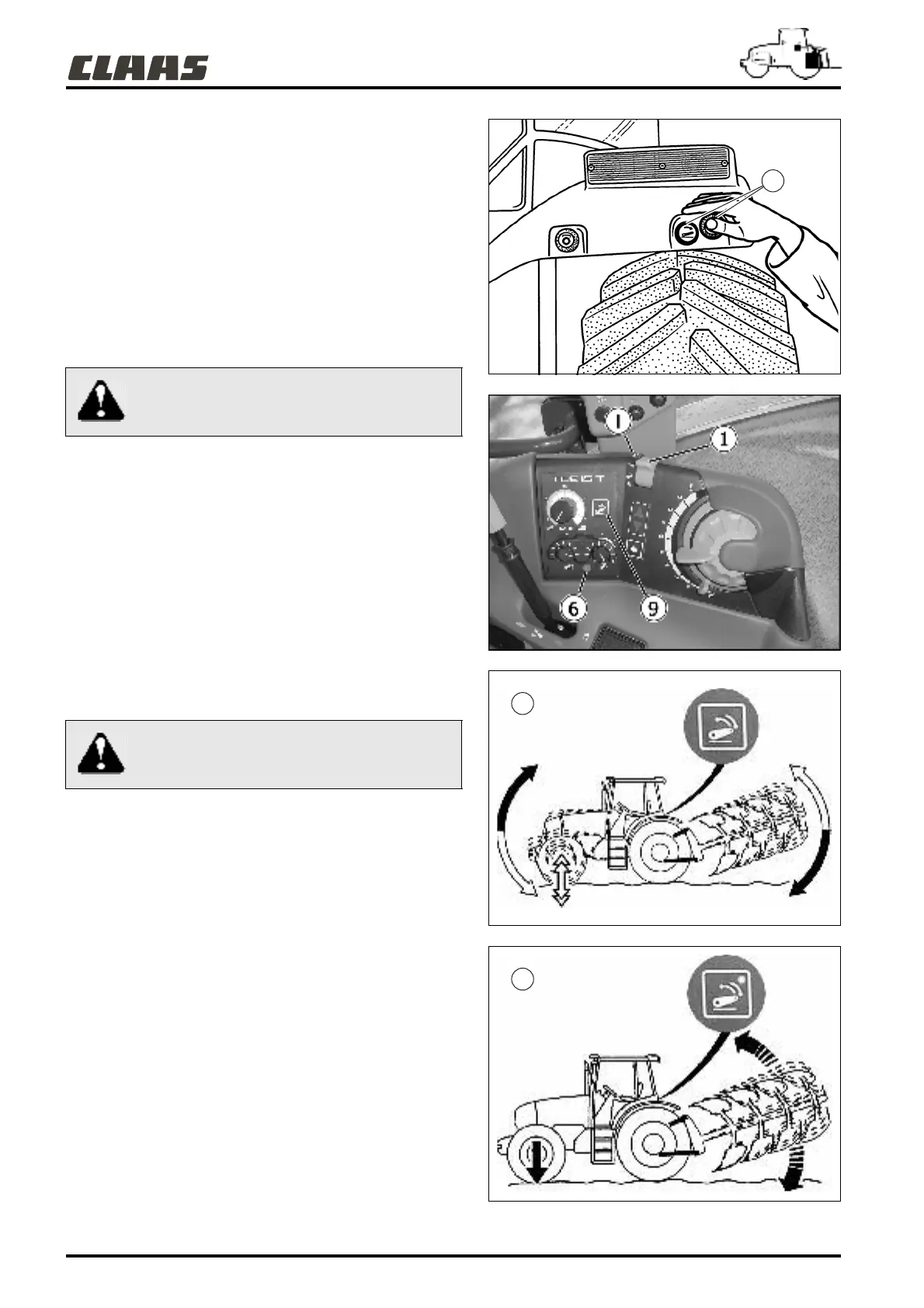

EXTERNAL CONTROL BUTTONS
Located on each rear wing, the 2 push buttons (A) raise or lower
the arms for hitching manoeuvres and implement adjustment.
- When a button is pressed, there is a movement of about
10 cm in the required direction.
- To obtain a greater movement, the control has to be released
and pressed again.
Important: Using the external controls puts the box into
safety mode. The safety warning light (6) comes on. To
unlock this safety measure, refer to the paragraph
"Conditions for linkage implementation".
TRANSPORT DAMPER
- To improve driving comfort with heavy implements, the driver
can activate the transport damper. All the swinging
movements caused by the weight of the rear carried
implement are absorbed by the linkage.
- To obtain the damper function, adjust the selector (1) on the
high position (I) and press key (9). The warning light of key (9)
comes on.
- To deactivate the damper function press key (9).
Without the damper (B).
With the damper (C).
382hsn12
382hsn29
382hsn30
382hsn31
During hitching operations or when using the
external linkage control, the operator must
remain outside the hitch frame.
Activate this function when on the road to
maintain good front wheel grip and keep good
steering efficiency.
A
B
C
