ARES 506-606 - 02.2005 - GB
E.18

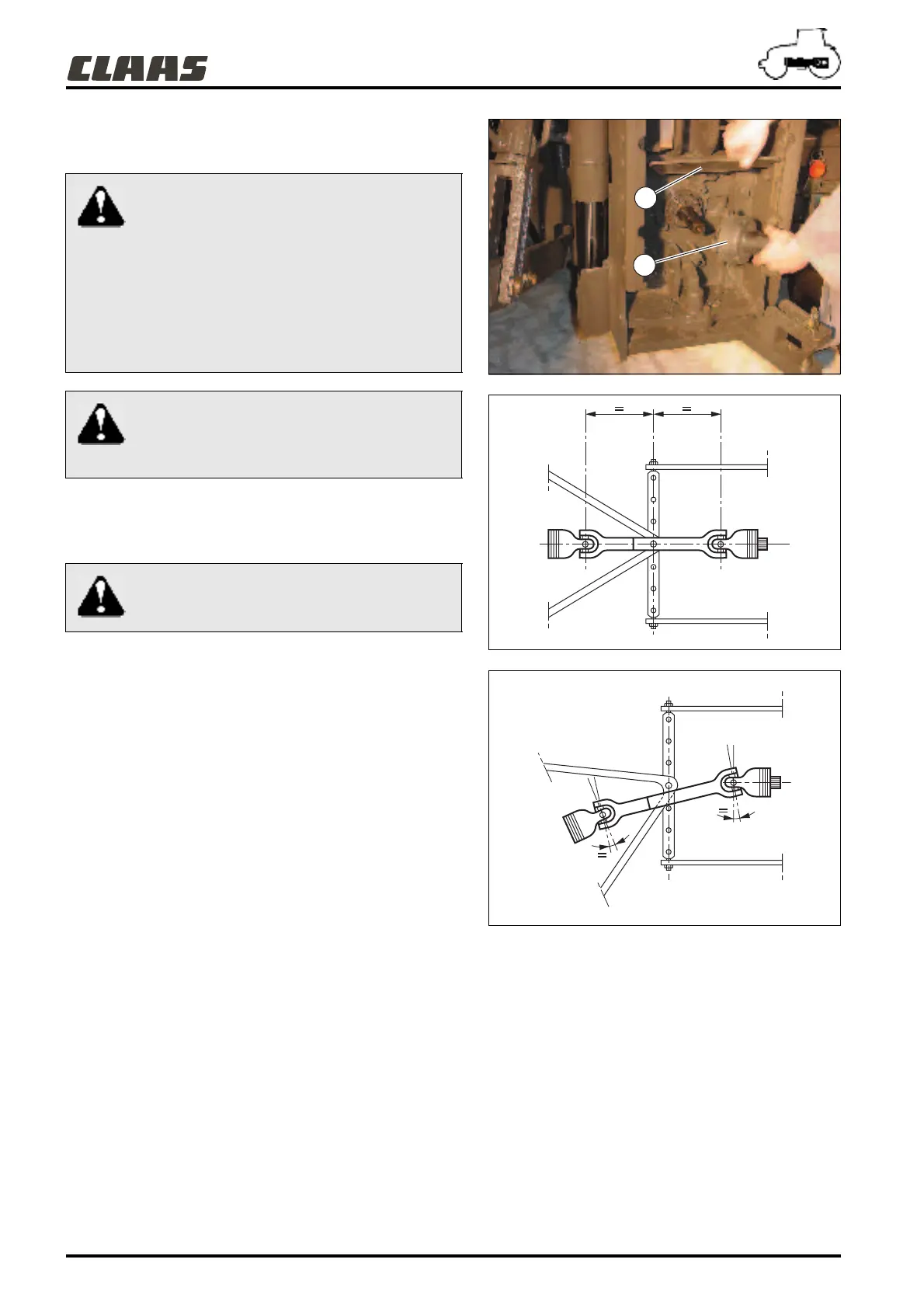

HITCHING IMPLEMENTS TO THE POWER
TAKE-OFF
To attach or remove an implement driven by the rear power
take-off, remove the safety cover (P) upwards. To release the
cover, pull it sideways to the right, then hinge it fully upwards.
The universal joint shaft must always be aligned with the tractor -
tool axis.
The 2 universal joints must be at an equal distance from the
rotation point, so in a bend the angles formed by the shaft joints
will be equal.
If this configuration cannot be achieved, use a constant velocity
joint.
343msn05
341hsn01
341hsn02
Do not wear loose clothing which could catch in
moving parts.
The engine must be stopped before coupling or
uncoupling the attachment's universal joint shaft.
All guards must be fitted when working.
When repairing, adjusting or lubricating an attachment in
the field, always set the PTO lever to neutral and stop the
engine.
Set the controls to neutral when not in use.
Only remove the protective sleeve (O) to
connect an attachment driven by the PTO.
Replace the sleeve as soon as the attachment is
disconnected.
When the power tzake-off is not in use, the
safety cover (P) and protector (O) must always
be in place.
P
O
