FreeSpeak Edge | User Guide
3.3.1 Guidelines

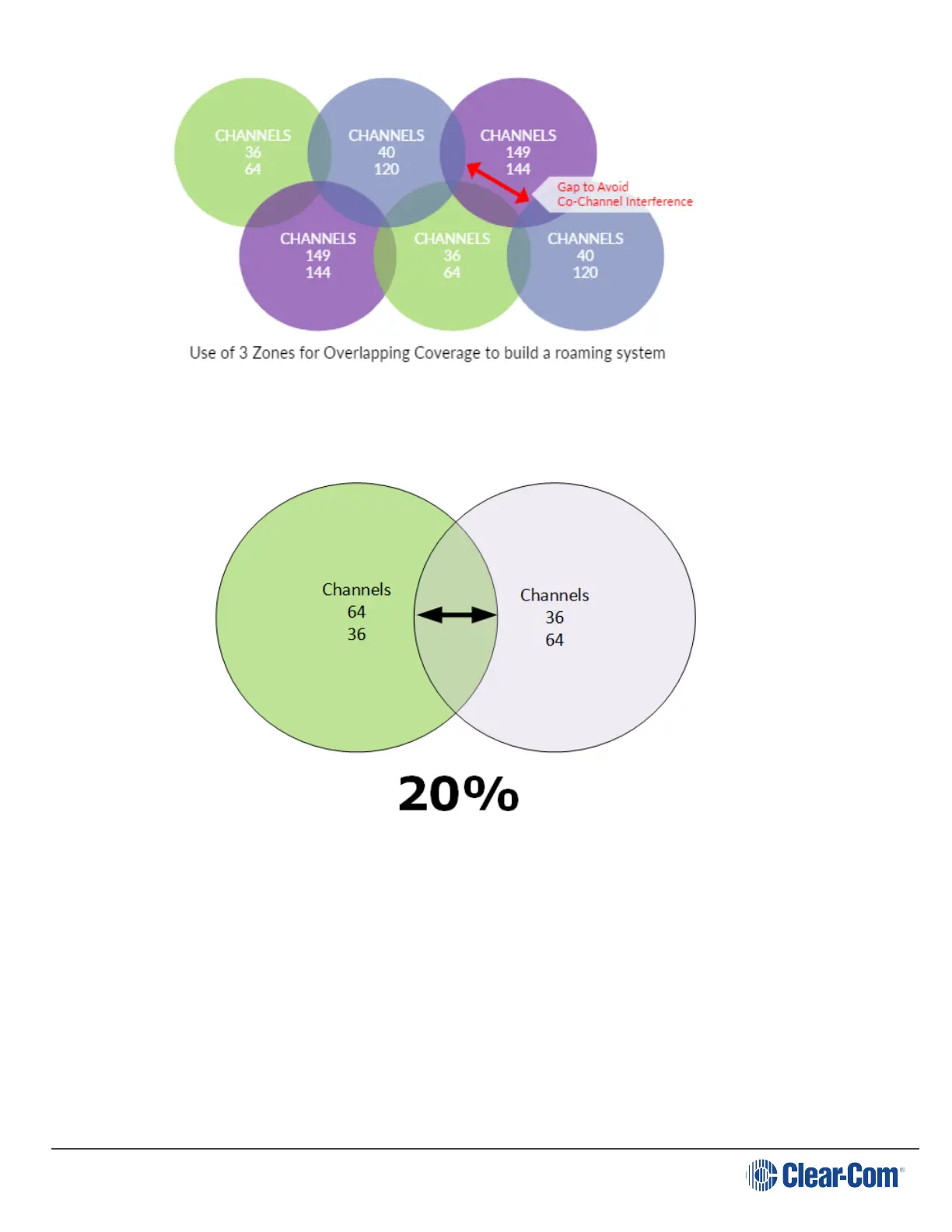

l Transceiver RF coverage zones ideally overlap by 20% of the coverage cell
l If transceivers are 3m (10 feet) or less apart, for best performance, Clear-Com
recommends that adjacent transceivers do not use adjacent channels. Without this gap
between channels and transceivers, there is some possibility of interference.
l Beltpacks must not see the same channel on more than one transceiver at any one time.
l Adjacent transceivers can use the same channels if the channel order is reversed. For
example; transceiver A, Channel 1 = 36, Channel 2 = 64. Transceiver B, Channel 1 = 64,
Channel 2 = 36. However, the set up point above, (beltpacks do not see more than one
transceiver with the same channel at any time) is preferred.
