FreeSpeak Edge | User Guide

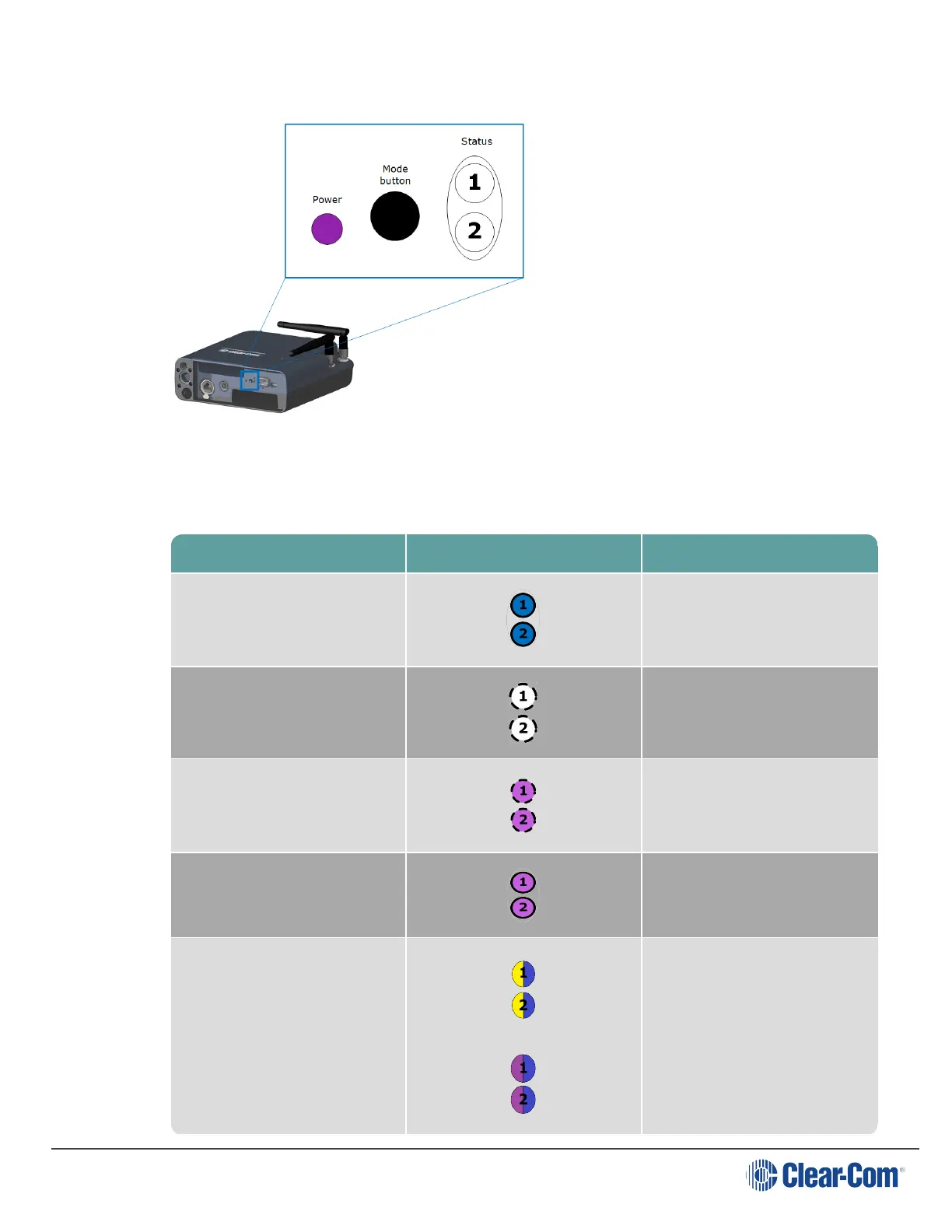

7.4 Edge transceiver status LEDs
The status LEDs are also visible from the top of the transceiver.
Transceiver start up sequence
Transceiver state Status LEDs LEDflash rate and color
Transceiver booting
1 and 2 steady blue (up to 3
mins)
No connection with the
Eclipse matrix frame
1 and 2 flash white (up to 2
mins)
Acquiring PTP
1 and 2 flash purple (up to 2
mins)
PTP locked 1 and 2 steady purple
DFS channel availability
check (1 minute per
channel). DFS radio channels
are scanned to check for
radar activity before they are
selected for use. Scanning
occurs during the PTP and
1 and 2 flash blue/purple (1
min) or blue/yellow (1 min)
