fixed in an upright position in order for the cooling mechanism to work properly.
Note: This unit MUST have a 4-inch clearance above and below to allow for safe operating
conditions.
Note: This unit MUSTNOT be installed above other heat sources because this will reduce the
performance.
The transcievers must be cabled to your AES67 network.
Wall Mounting

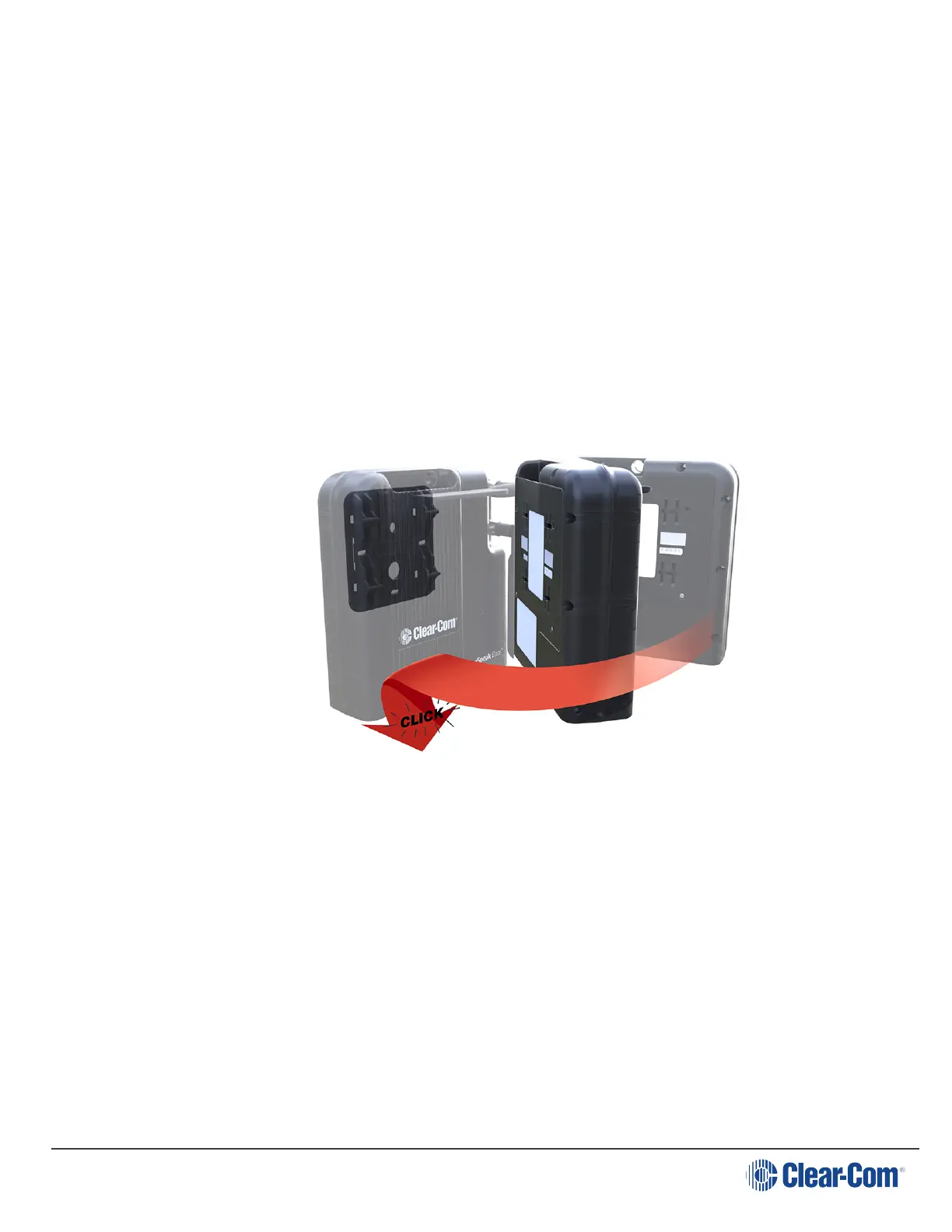

The transceiver can be attached to the wall mounting plate with a simple push and downward
press movement (lift and pull to remove).
The wall mounting plate has a variety of fixing options. Chose the method that is most suited
to the surface you are fixing the device to. The wall mounting plate contains four mounting
holes for size # 6 wood screws.
Microphone/camera stand mounting
The transceiver has two possible microphone stand connectors on the bottom of the device
(3/8 and 5/8 inch). It also has a spigot socket (5/8 inch).
Orientation and height of the Edge transceiver
The Edge transceiver will transmit audio in an omnidirectional RFpattern at any orientation.
However, in order to achieve optimum environmental performance (temperature and water
resistance) it must be fixed in an upright position. Please refer to the chart below for details.
Page 27
