FreeSpeak Edge | User Guide
l If you separate Admin and IVC traffic then they must be on different VLANs.
Note: The bandwidth usage per Edge transceiver is ~9.6 Mbps.
Warning: If you change the IP address of the AES67 ports (transceiver or E-IPA matrix card),
the devices will reset automatically. Reset can take up to five minutes.
When connecting the E-IPA-HX card to the Edge transceiver over your network certain
scenarios will work while others do not. This is down to the way the E-IPA card routes audio
and data between ports and processors.

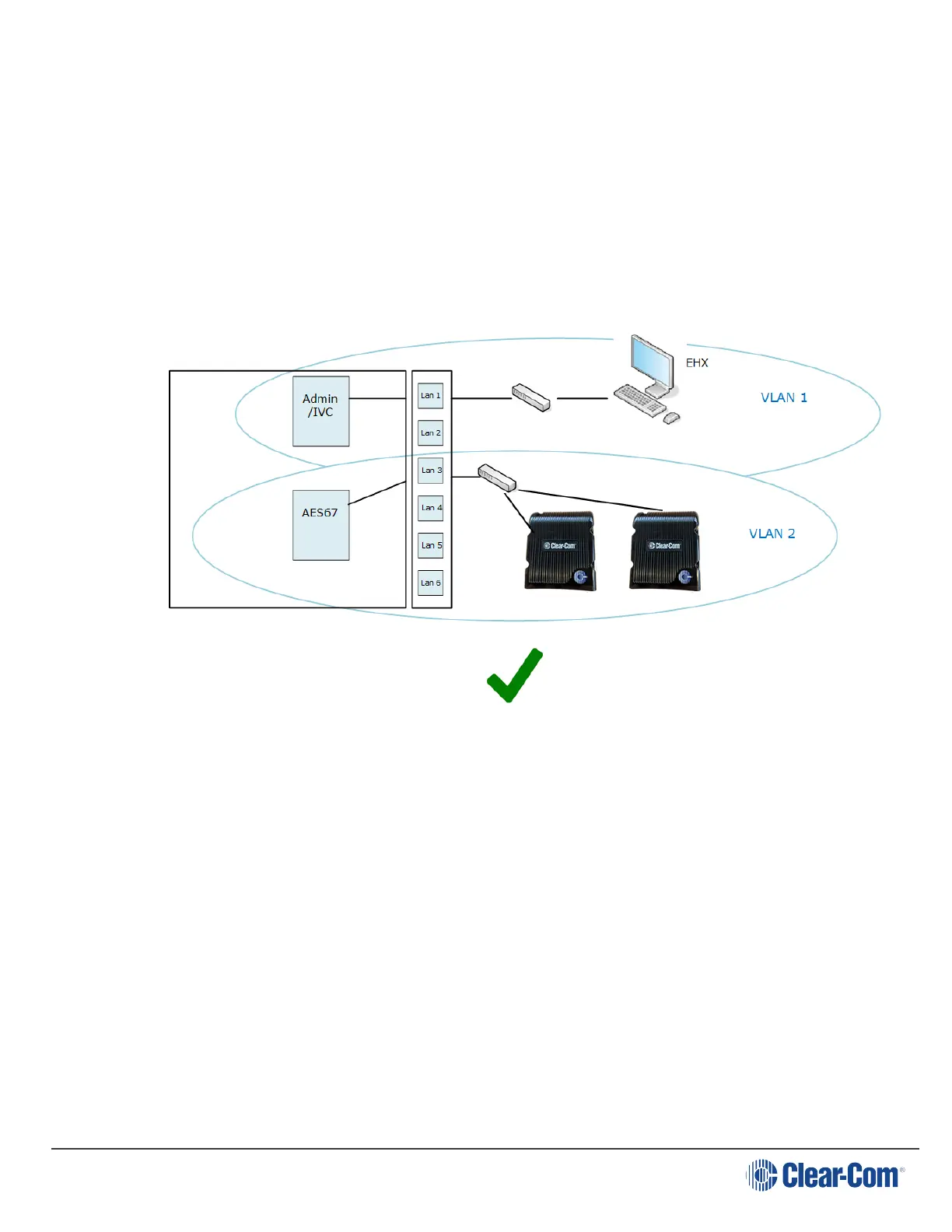

Example set ups:
Note: The illustration above is the preferred LAN connector (3) configuration for the FreeSpeak Edge
system.
Page 36
