FreeSpeak Edge | User Guide
You can charge the beltpack by using the beltpack charger. Place up to four beltpacks in the
charger bay. It takes about five hours to fully charge a beltpack.
Note: You can also remove a battery from a beltpack and charge the battery in the charger. It takes
about three hours to charge a battery.
6.4.1 Beltpack batteries
The following specifications apply to the BAT80 batteries.
l Capacity (mA) - 4400mAh
l Talk time approx - 12 hours
Note: If the beltpack loudspeaker is used, talk time is slightly shorter.
l Charge time:
l Cradle - 3.5 to 4 hours @ 25°C
l USB - 3.5 to 4 hours @ 25°C
l Battery life: how many cycles - 500 cycles

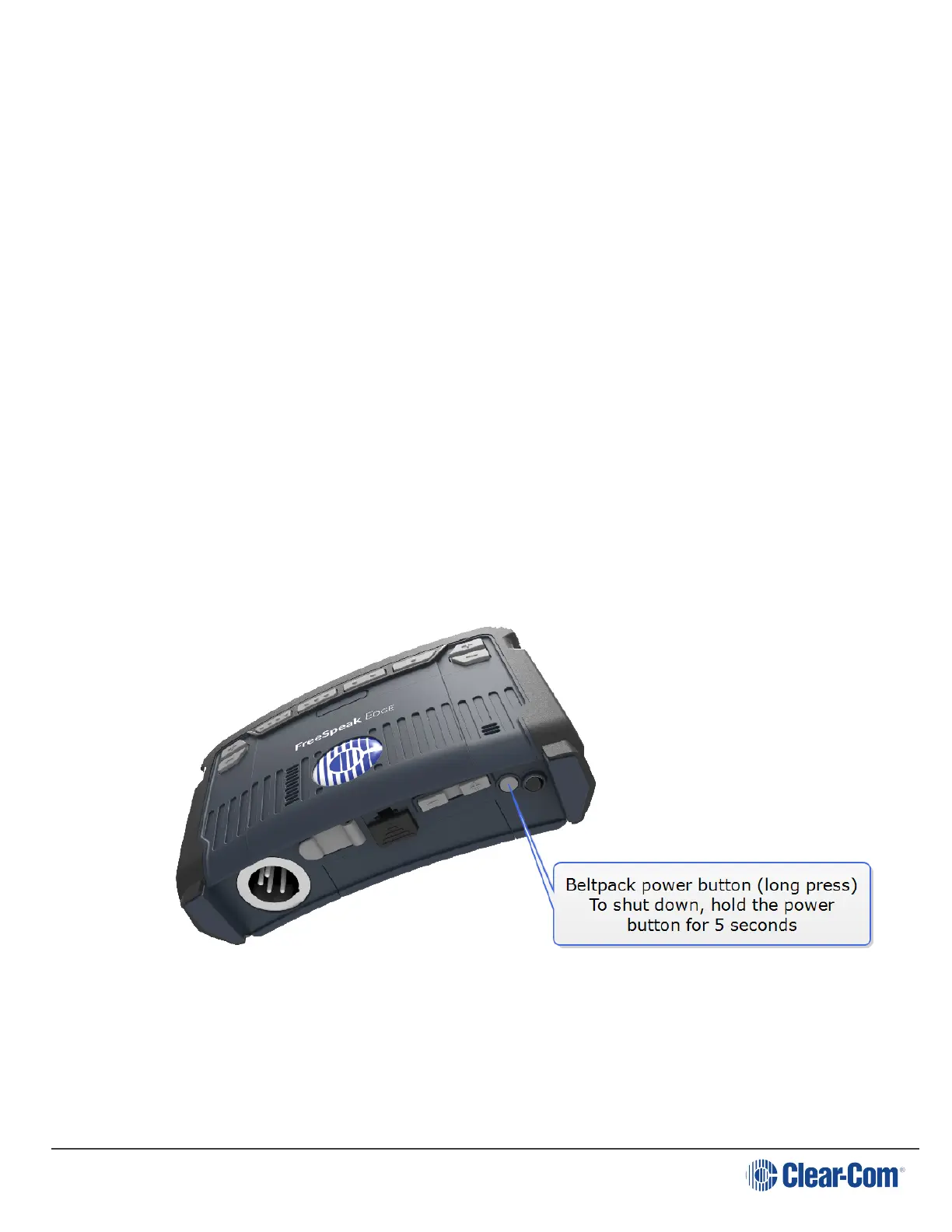

6.4.2 Powering on/off
The beltpack powers on and off using a long press on the power button.
Automatic power up
The beltpack powers up automatically with or without the battery when:
l The USB on the base of the beltpack is connected (PC)
l When the beltpack is inserted into the charging cradle
Page 52
