ClimateMaster Water-Source Heat Pumps
28
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Tranquility
®
Compact (TC) Series
Rev.: July 7, 2020

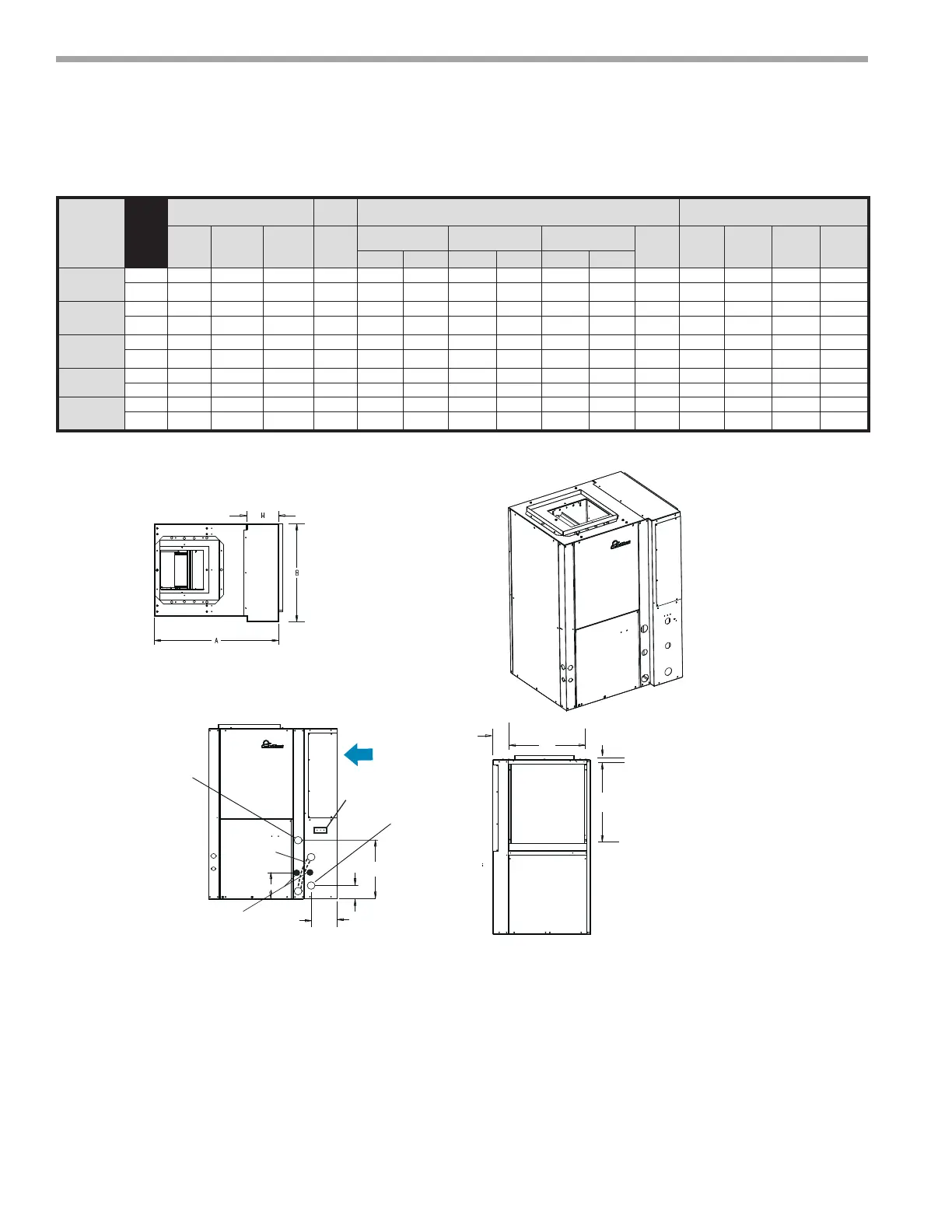

TCV with Right Hand Waterside Economizer – Dimensional Data
Vertical
Model
Overall Cabinet WSE WSE Connections
Return Connection
Using Return Air Opening
A
Width
B
Length
C
Height
H
Width
In Out Cond. 3/4” FBT
Water
In/Out
FPT
Q
Return
Width
R
Return
Height
S T
D E F G AA BB
006-012
in 26.1 21.2 22.0 7.1 2.1 5.5 8.1 5.5 5.1 5.5 1/2" 16.1 10.0 4.2 0.4
cm 66.3 53.8 55.9 18.0 5.3 14.0 20.6 14.0 13.0 14.0 40.9 25.4 10.7 1.0
015-018
in 28.9 23.2 38.9 7.4 2.6 6.0 10.8 6.0 7.1 6.0 1/2" 18.1 20.0 3.8 0.3
cm 73.4 58.9 98.8 18.8 6.6 15.2 27.4 15.2 18.0 15.2 46.0 50.8 9.7 0.8
024-030
in 29.0 24.7 40.0 7.4 2.6 6.0 11.6 6.0 7.1 6.0 3/4" 18.1 20.0 3.8 0.3
cm 73.7 62.7 101.6 18.8 6.6 15.2 29.5 15.2 18.0 15.2 46.0 50.8 9.7 0.8
036-042
in 29.0 28.7 45.0 7.4 2.6 6.0 12.1 6.0 7.1 6.0 3/4" 22.7 24.0 4.6 0.1
cm 73.7 72.9 114.3 18.8 6.6 15.2 29.5 15.2 18.0 15.2 57.7 61.0 11.7 0.3
048-060
in 31.2 37.2 46.0 7.0 3.1 5.8 12.1 5.8 7.1 5.8 3/4" 29.3 24.0 5.0 0.1
cm 79.2 94.5 116.8 17.8 7.9 14.7 30.7 14.7 18.0 14.7 74.4 61.0 12.7 0.3
Right Return TCV with WSE
3. Filters same size as standard unit.
4. Factory supplied controller (aquastat) is shipped inside unit. Open
waterside economizer panel (WSP), remove, slide onto dinrail, and
connect molex.
5. WSE to unit piping to be field fabricated below or in front. Must leave
room to remove front access panel(CCP) to service unit.
Notes:
1. Units are shipped with air filter rails that are not suitable
for supporting return air ductwork. An air filter frame with
duct mounting collar is available as an accessory, see the
ClimateMaster Accessory Submittal set for futher information
on this frame.
2. Condensate drains are 3/4” FPT, both are internally trapped,
externally vent both drains before joining.
Q
R
T
S
WSE
AIR COIL
SIDE
WSP
CCP
CONDENSATE
3/4” (2) DRAINS
Note 5
Note 4
Return
Air
F
D
AA
E
In
In
Out
G
BB
Top View
Front View Right
Return
Supply Water In
(from loop)
To Water Out
(from loop)
Out
6. For Discharge air connection dimensions see page 26.
