ClimateMaster Tranquility TCH 024 - Blower Performance Data - TC024

climatemaster.com
43
Tranquility
®
Compact (TC) Series
Rev.: July 7, 2020
THE SMART SOLUTION FOR ENERGY EFFICIENCY

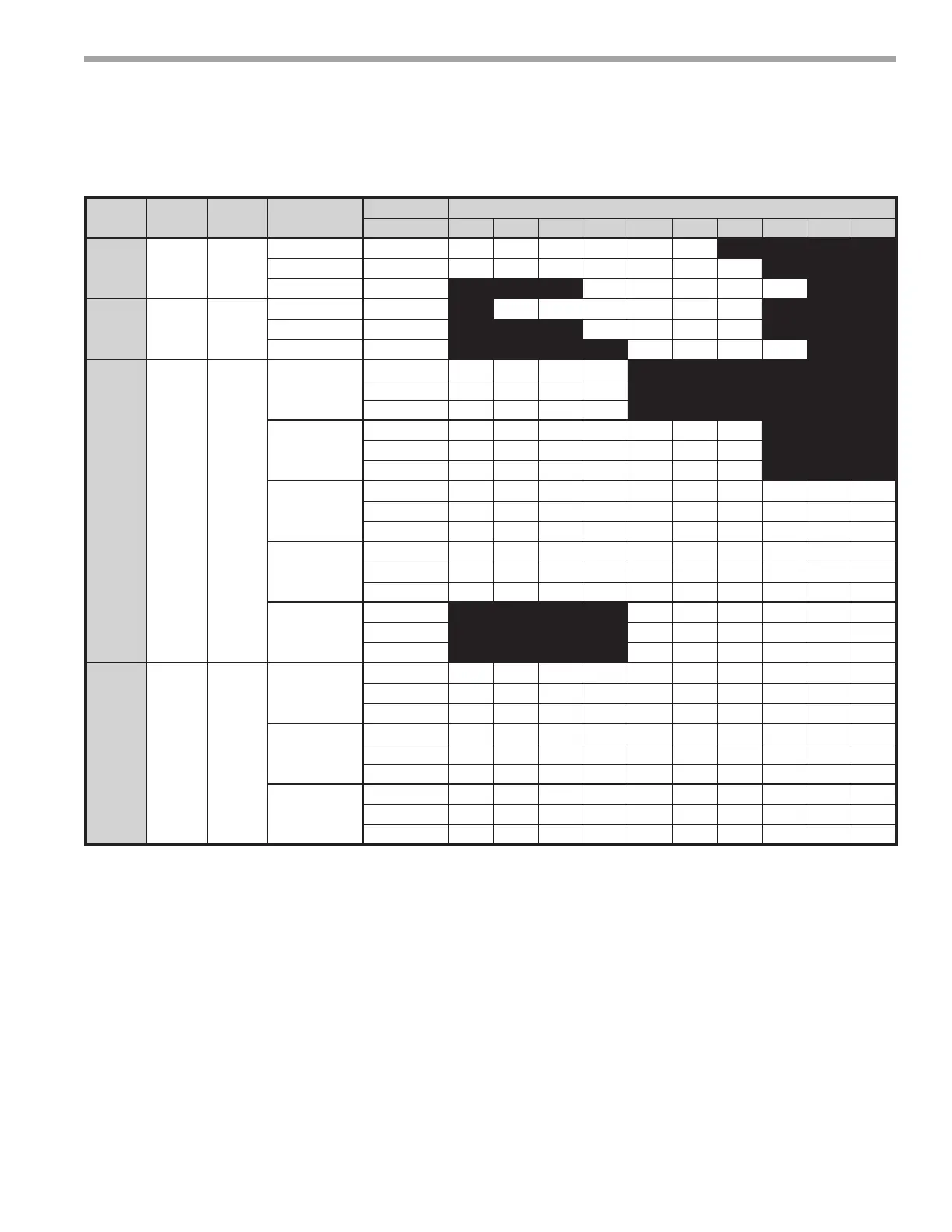

Blower Performance Data – TC024
Rated
CFM
Min CFM
Motor
Type
Motor Speed
Setting
External Static Pressure (in. wg)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
850 600 PSC
Low CFM 760 741 722 694 665 618
Medium CFM 941 912 874 836 789 732 665
High CFM 950 884 827 732 656
850 600
PSC -
High
Static
Low CFM 979 931 884 827 751 675
Medium CFM 988 922 846 713
High CFM 979 903 798 665
800 600
ECM -
Constant
Torque
1
RPM 817 865 915 973
Power (W) 116 122 128 135
CFM 755 728 695 653
2
RPM 877 920 966 1012 1070 1142 1198
Power (W) 146 152 159 166 174 185 193
CFM 836 810 782 750 708 657 616
3
RPM 938 974 1017 1057 1102 1158 1227 1283 1323 1355
Power (W) 181 187 194 201 209 218 230 239 246 252
CFM 910 887 861 834 804 762 714 674 642 619
4
RPM 1015 1048 1084 1121 1159 1199 1244 1309 1369 1412
Power (W) 232 240 247 254 262 270 278 291 303 312
CFM 996 975 952 929 904 876 845 798 755 725
5
RPM 1219 1255 1293 1331 1384 1446
Power (W) 323 331 340 348 361 374
CFM 999 975 951 923 884 840
800 600
ECM -
Constant
Volume
Minimum CFM
RPM 706 788 867 941 1013 1080 1143 1203 1259 1311
Power (W) 71 89 107 124 141 159 177 195 213 230
CFM 600 600 600 600 600 600 600 600 600 600
Default CFM
RPM 882 943 1002 1059 1114 1168 1220 1271 1319 1366
Power (W) 145 165 185 205 225 245 266 285 306 326
CFM 800 800 800 800 800 800 800 800 800 800
Maximum CFM
RPM 1077 1122 1162 1200 1233 1263 1288 1310 1329 1343
Power (W) 284 300 315 332 351 364 379 396 412 428
CFM 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
See ECM control section for details on setting airow.
Airow is controlled within 5% up to the Max ESP shown with wet coil.
Do not select Dehumidication mode if HP CFM is on setting 1.
ClimaDry is factory wired to operate in stage 2 airow.
Black areas denote ESP where operation is not recommended.
PSC: Units factory shipped on medium speed. Other speeds require eld selection.
CT ECM: Units factory shipped on Speed Tap 2 for Fan-Only and Speed Tap 3 for Heating/Cooling.
All airow is rated and shown above at the lower voltage if unit is dual voltage rated, e.g. 208V for 208-230V units.
Only two speed PSC fan (H & M) available on 575V units.
Performance stated is at the rated power supply. Performance may vary as the power supply varies from the rated.
All data is shown wet coil with clean 1” lter.
All data is ran at 80 °F DB and 67 °F WB.
CFM Tolerance is 7%.
RPM/Watt Tolerance 10%.
