ClimateMaster Tranquility TCH 024 - TC with Waterside Economizer Option

ClimateMaster Water-Source Heat Pumps
64
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Tranquility
®
Compact (TC) Series
Rev.: July 7, 2020

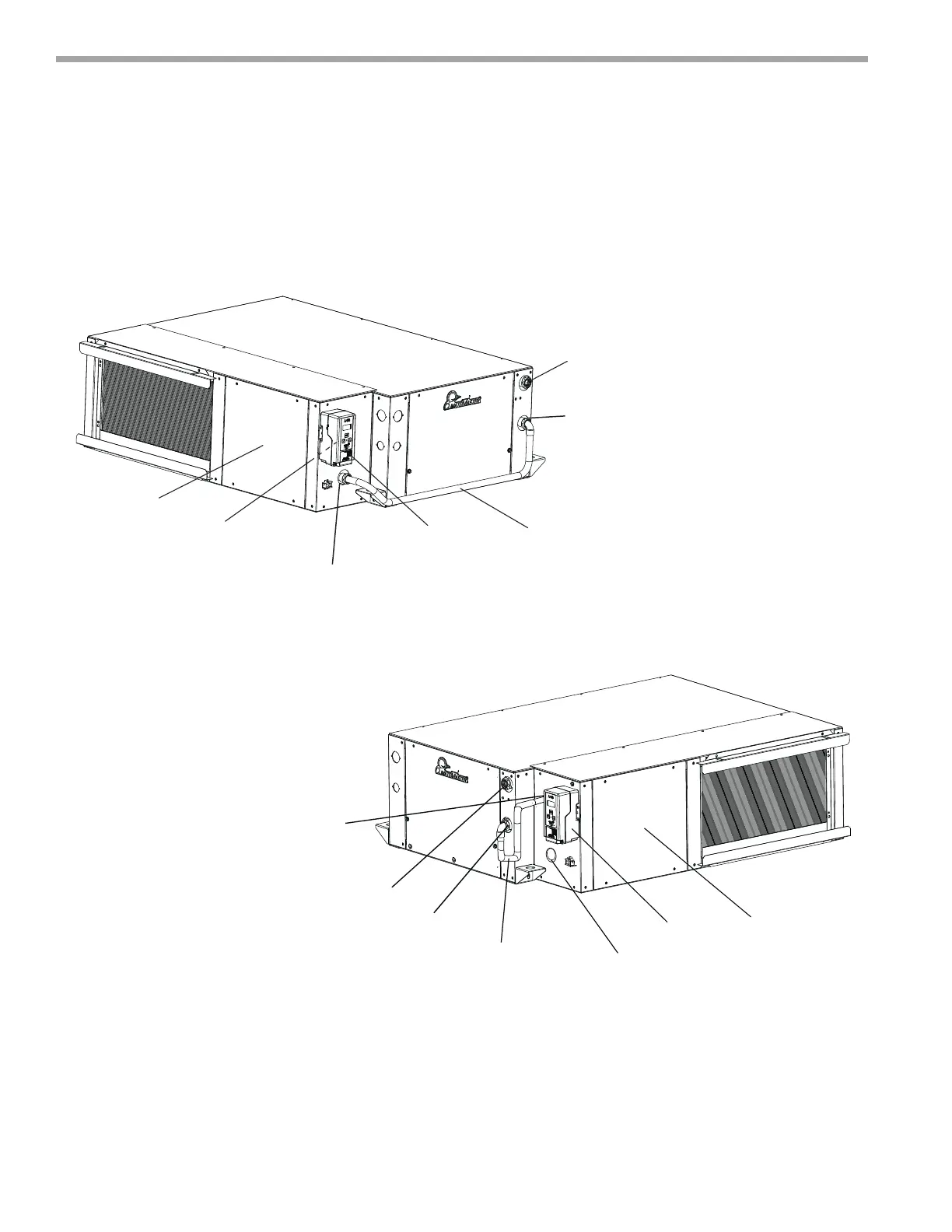

TC with Waterside Economizer Option
Water In
(on right
side of
controller)
Access
Panel
Water
Out
Field
Fabricated
Tube
Controller
WSE
CCP
WSE
Out
Unit
In
Water
In
Access
Panel
Water
Out
Field
Fabricated
Tube
Controller
WSE
Unit
In
WSE
Out
CCP
Notes:
1. Field to fabricate tube and connect from WSE - OUT to Unit - IN. Do not block compressor/control box
service panel (CCP). Hoses are not recommended.
2. Access panel for access to 3 way valve and air bleed vents (2) at top of WSE coil headers. For vertical
units and 1 at the top and 1 at the bottom for horizontal units.
3. Horizontal units require two external drain traps. Vertical units are internally trapped. Can connect 2
drains after vents.
4. Controllers are shipped inside, remove, slide on DIN rail, and connect molex.
TCH - Economizer on Left Side
TCH - Economizer on Right Side
Figure 23:
