Tranquility
®
Compact (TC) Series
Rev.: July 7, 2020
THE SMART SOLUTION FOR ENERGY EFFICIENCY

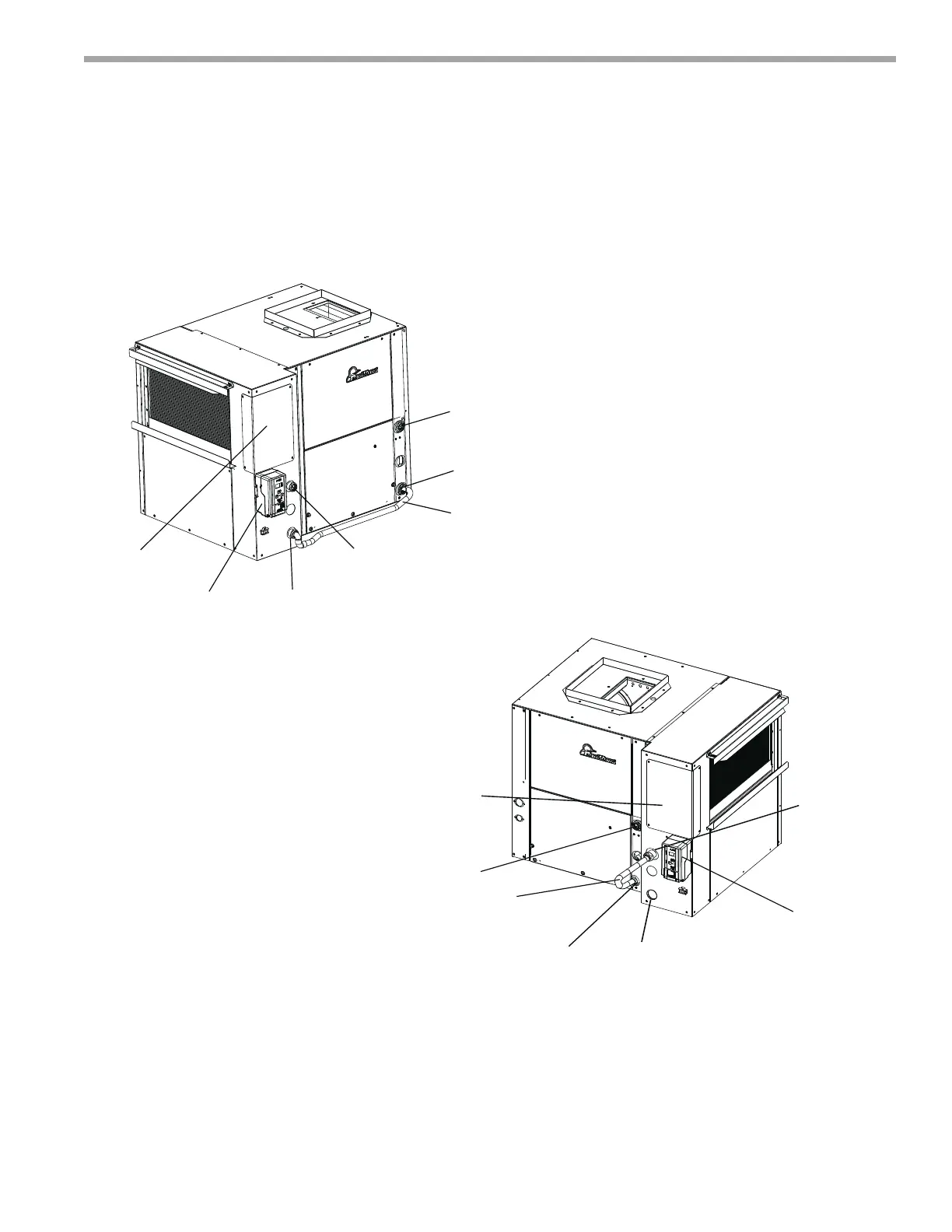

TC with Waterside Economizer Option, Cont’d.
Water In
Access
Panel
Water
Out
Field
Fabricated
Tube
Controller
WSE
CCP
Unit In
WSE Out
Water In
Access
Panel
Water
Out
Field
Fabricated
Tube
Controller
WSE
CCP
Unit In
WSE
Out
TCV - Economizer on Left Side
TCV - Economizer on Right Side
Notes:
1. Field to fabricate tube and connect from WSE - OUT to Unit - IN. Do not block compressor/control box
service panel (CCP). Hoses are not recommended.
2. Access panel for access to 3 way valve and air bleed vents (2) at top of WSE coil headers. For vertical
units and 1 at the top and 1 at the bottom for horizontal units.
3. Horizontal units require two external drain traps. Vertical units are internally trapped. Can connect 2
drains after vents.
4. Controllers are shipped inside, remove, slide on DIN rail, and connect molex.
