Tranquility
®
Compact (TC) Series
Rev.: July 7, 2020
THE SMART SOLUTION FOR ENERGY EFFICIENCY

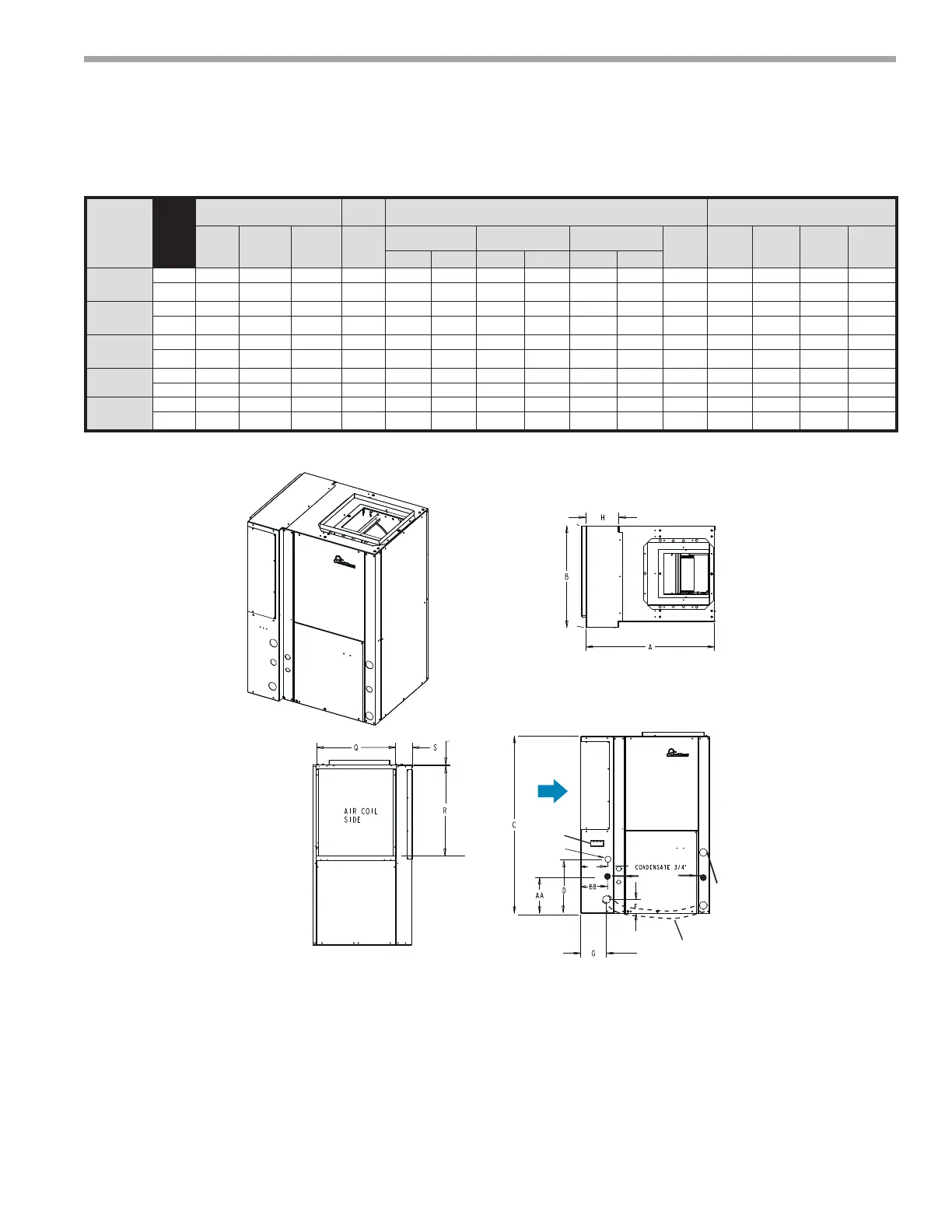

TCV with Left Hand Waterside Economizer – Dimensional Data
Vertical
Model
Overall Cabinet WSE WSE Connections
Return Connection
Using Return Air Opening
A
Width
B
Length
C
Height
H
Width
In Out Cond. 3/4” FBT
Water
In/Out
FPT
Q
Return
Width
R
Return
Height
S T
D E F G AA BB
006-012
in 26.1 21.2 22.0 7.1 8.1 5.5 2.1 5.5 5.1 5.5 1/2" 16.1 10.0 4.2 0.4
cm 66.3 53.8 55.9 18.0 20.6 14.0 5.3 14.0 13.0 14.0 40.9 25.4 10.7 1.0
015-018
in 28.9 23.2 38.9 7.4 10.8 6.0 2.6 6.0 7.1 6.0 1/2" 18.1 20.0 3.8 0.3
cm 73.4 58.9 98.8 18.8 27.4 15.2 6.6 15.2 18.0 15.2 46.0 50.8 9.7 0.8
024-030
in 29.0 24.7 40.0 7.4 11.6 6.0 2.6 6.0 7.1 6.0 3/4" 18.1 20.0 3.8 0.3
cm 73.7 62.7 101.6 18.8 29.5 15.2 6.6 15.2 18.0 15.2 46.0 50.8 9.7 0.8
036-042
in 29.0 28.7 45.0 7.4 12.1 6.0 2.6 6.0 7.1 6.0 3/4" 22.7 24.0 4.6 0.1
cm 73.7 72.9 114.3 18.8 29.5 15.2 6.6 15.2 18.0 15.2 57.7 61.0 11.7 0.3
048-060
in 31.2 37.2 46.0 7.0 12.1 5.8 3.1 5.8 7.1 5.8 3/4" 29.3 24.0 5.0 0.1
cm 79.2 94.5 116.8 17.8 30.7 14.7 7.9 14.7 18.0 14.7 74.4 61.0 12.7 0.3
3. Filters same size as standard unit.
4. Factory supplied controller (aquastat) is shipped inside unit. Open
waterside economizer panel (WSP), remove, slide onto dinrail, and
connect molex.
5. WSE to unit piping to be field fabricated, run below or in front. Must
leave room to remove front access panel (CCP) to service unit.
Notes:
1. Units are shipped with air filter rails that are not suitable
for supporting return air ductwork. An air filter frame with
duct mounting collar is available as an accessory, see the
ClimateMaster Accessory Submittal set for futher information
on this frame.
2. Condensate drains are 3/4” FPT, both are internally trapped,
externally vent both drains before joining.
Supply Water
in (from loop)
WSP
CCP
Water out
(to loop)
(2) Drains
Note 5
Note 4
Return
Air
In
In
Out
Out
E
WSE
T
Top View
Front View Left Return
Left Return TCV with WSE
6. For Discharge air connection dimensions see page 26.
