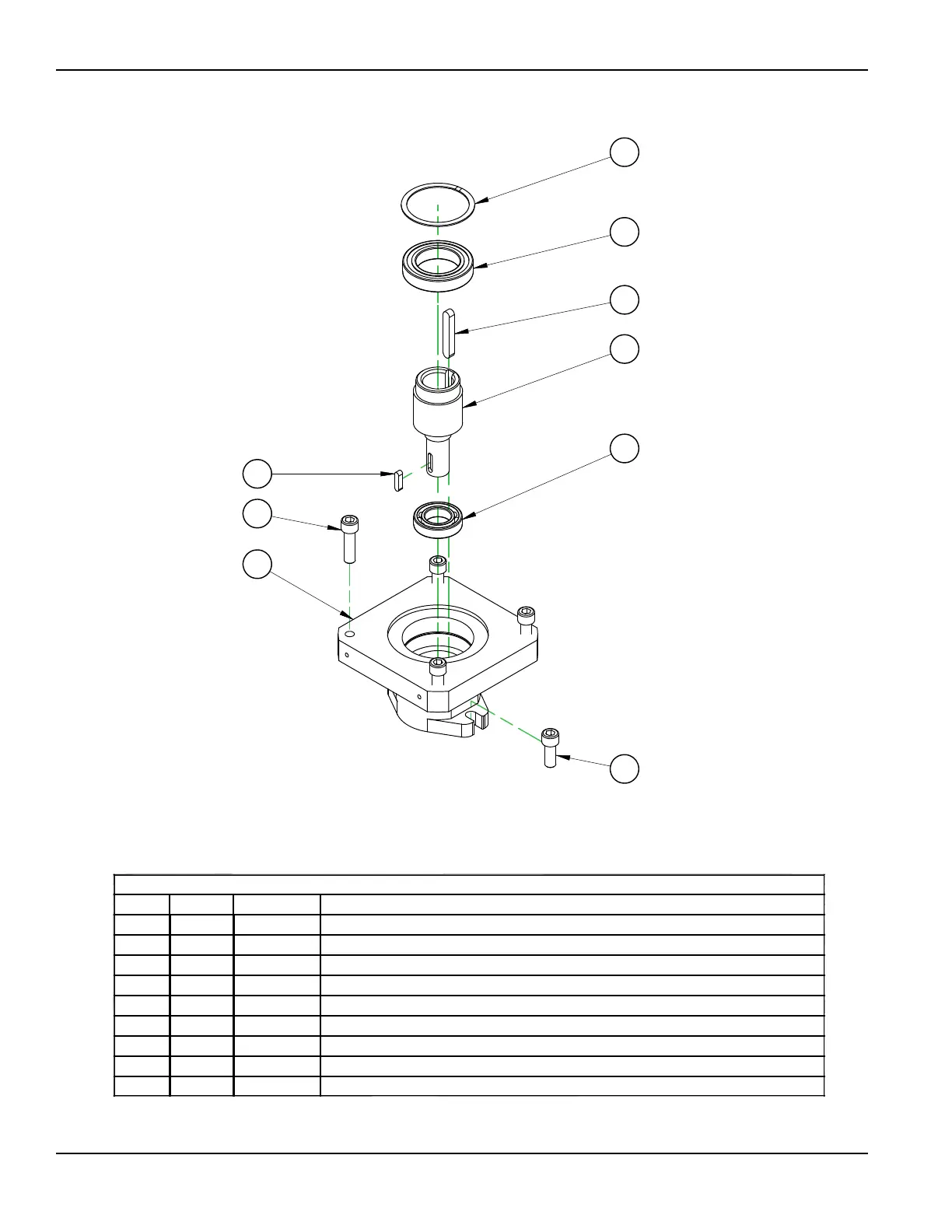

FIGURE B-23. SERVO MOTOR RDU ADAPTER ASSEMBLY (P/N 51536)
PARTS LIST
DESCRIPTION
PART No.
QTY
ITEM
BRG BALL 1.1811 ID X 2.1654 X .50
1252411
SCREW 1/2-13 X 1-1/4 SHCS
1264622
SCREW 1/2-13 X 1-3/4 SHCS
2053443
BRG BALL 1.9685 ID X 3.1496 OD X .6299
2257514
RING SNAP 3.149 ID (80mm) SPIRAL MED DUTY
391311
5
KEY 1/4 X 1/4 X 1.00 RAD BOTH ENDS
4890916
SHAFT BB5000 RDU TO SERVO
5153017
HOUSING ADAPTER BB5000 RDU INPUT TO PLANETARY
5153118
KEY 10mm x 8mm x 2.5 LONG RADIUS BOTH END
5319519
9
2
3
1
4
6
5
7
8
