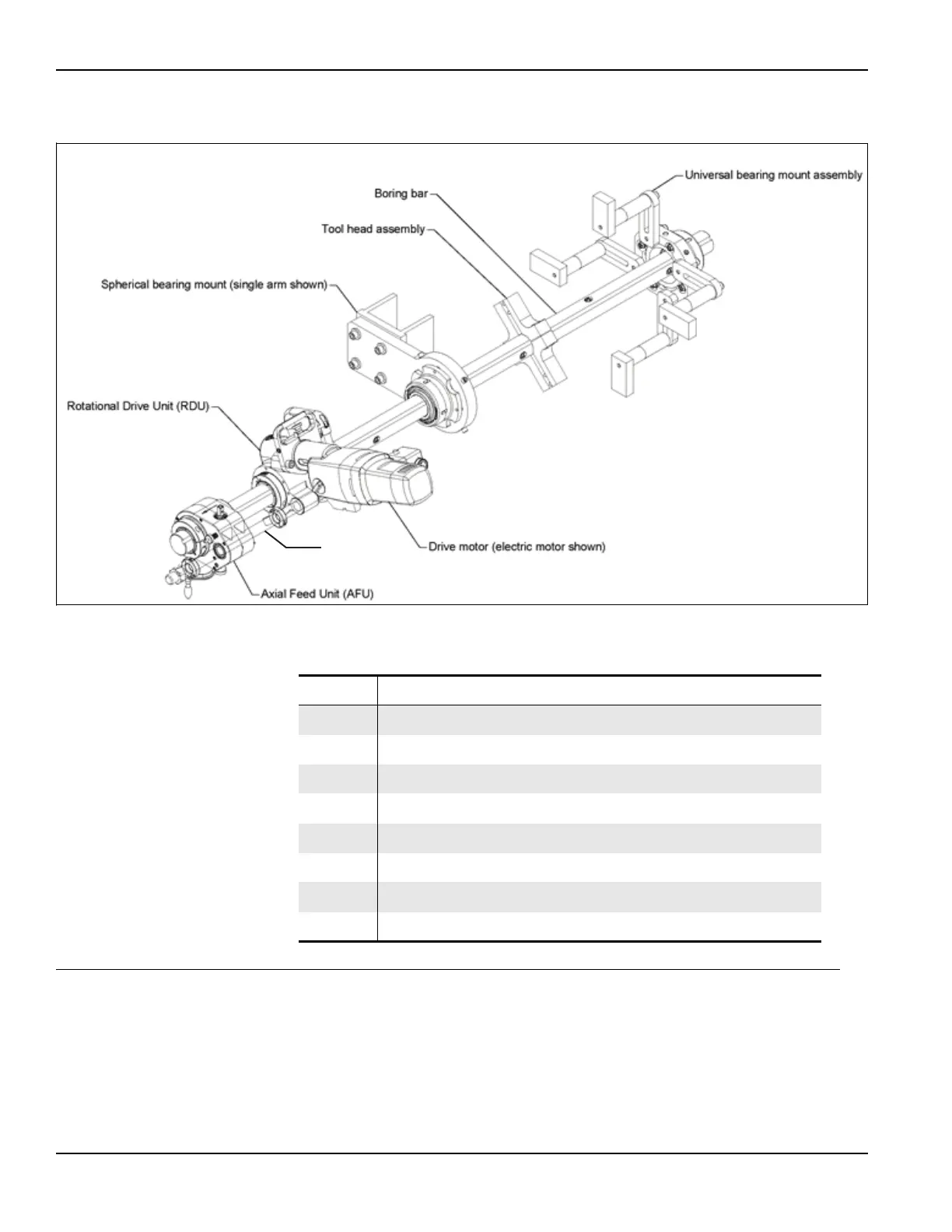

Figure 2-1 shows the BB4500-BB5000 major components, defined in Table 2-1.
FIGURE 2-1. BB4500-BB5000 COMPONENTS WITH EIBENSTOCK MOTOR (BB5000 SHOWN)
2.1 BB4500 FEATURES
The BB4500’s modular design and diverse setup options offer innovative solutions
to difficult on-site maintenance problems. The BB4500 is designed for on-site
repair and servicing of heavy equipment at chemical plants, public utilities, mills,
mines, power stations, fluid transmission, and distribution systems.
2
3
4
5
7
8
6
1
Leadscrew
TABLE 2-1. BB5000 COMPONENT IDENTIFICATION
Number Component
1 Rotational drive unit (RDU)
2 Spherical bearing mount (single arm shown)
3 Tool head assembly
4 Boring bar
5 Universal bearing mount assembly
6 Drive motor (electric Eibenstock motor shown)
7 Leadscrew
8 Axial feed unit (AFU)
