Climax BB5000 - Igure A-8. Hydraulic Motor Assembly (P;N 39848)

P/N 92974, Rev. 1 Page 73
F

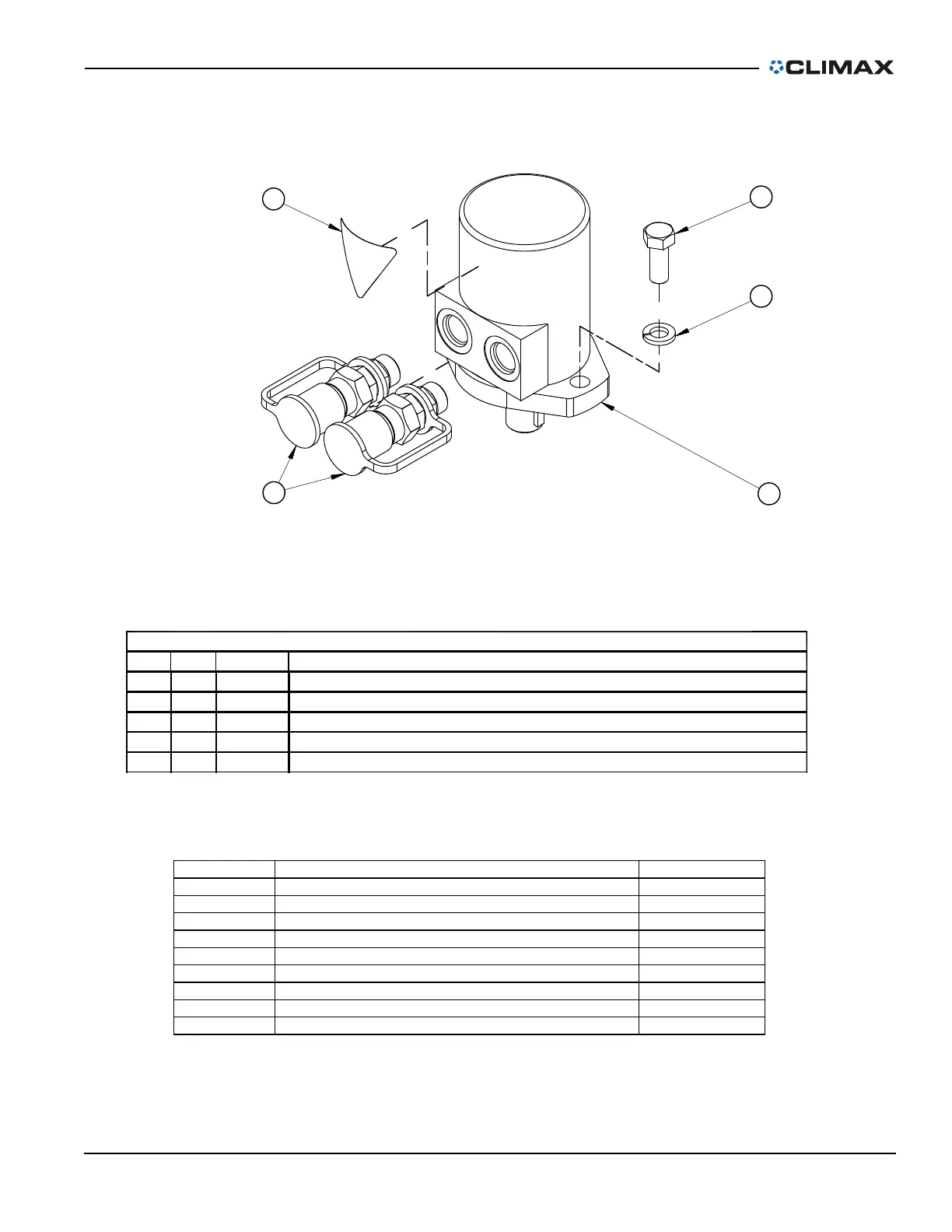

IGURE A-8. HYDRAULIC MOTOR ASSEMBLY (P/N 39848)
PARTS LIST
DESCRIPTIONP/N:QTY
ITEM
WASHER LOCK 1/2
1123821
SCREW 1/2-13 X 1-1/4 HHCS
1182622
SEE CHARTA/R
13
KIT FTG 1/2 HYD QUICK COUPLERS
3982814
LABEL WARNING HOT SURFACE GRAPHIC 1.95" TALL TRIANGLE YELLOW (KB)
78619 15
PART No
DESCRIPTION MOTOR HYD P/N
39837 MOTOR ASSY HYD 2.2 CU IN KEYED 1/2 FTG
27477
39843
MOTOR ASSY HYD 3.6 CU IN KEYED 1/2 FTG
20684
39844
MOTOR ASSY HYD 5.7 CU IN KEYED 1/2 FTG S-SERIES
21530
39845
MOTOR ASSY HYD 7.3 CU IN KEYED 1/2 FTG
20231
39846
MOTOR ASSY HYD 8.9 CU IN KEYED S-SERIES 1/2 FTG
21531
39847
MOTOR ASSY HYD 14.1 CU IN KEYED 1/2 FTG
34585
43451
MOTOR ASSY HYD 11.3 CU IN KEYED 1/2 FTG
21532
43452 MOTOR ASSY HYD 17.9 CU IN KEYED 1/2 FTG 21534
43552 MOTOR ASSY HYD 22.5 CU IN KEYED SHAFT 30567
2
1
3
4
5
