Page 54 BB4500-BB5000 Operating Manual
4.3.1.4 Servo drive (BB5000 only)
If using the servo drive with the BB5000, do the following to start the servo drive
(see Figure 3-16 on page 45):
1. Pull the E-stop up.
2. Press and hold the RESET button for three seconds, or until the fault light
turns off.
3. Select the rotation direction.
4. Press START.
To stop, press the STOP button.
4.4 SHUTDOWN
To protect tool bits from chipping, always place the feed box in neutral before
stopping the bar rotation.
Do the following to shut down the machine:
1. Disengage the axial feed by pushing the feed shaft until the pins on both
sides of the feed box are free of the drive bushings.

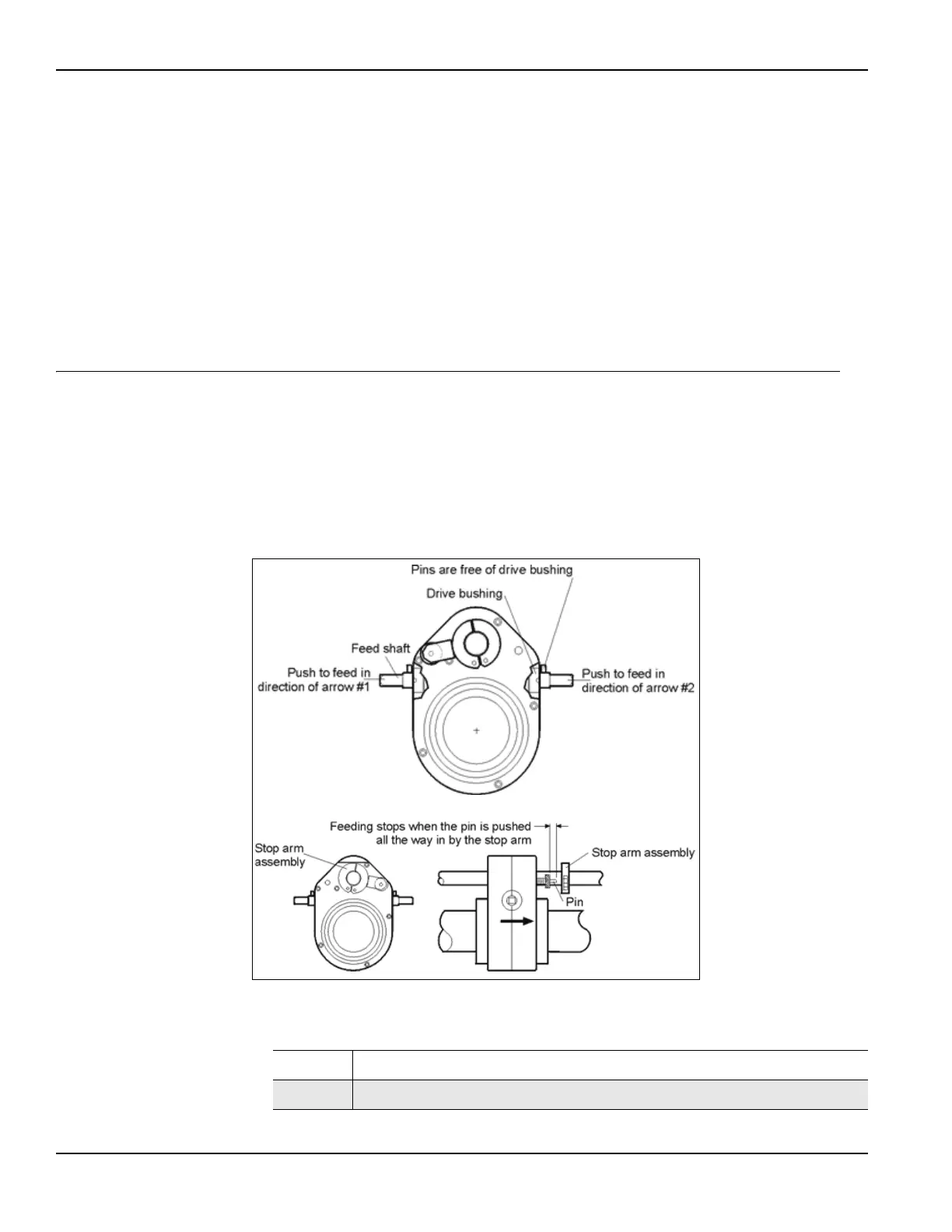

FIGURE 4-1. DISENGAGING THE AXIAL FEED
TABLE 4-1. AXIAL FEED DISENGAGEMENT IDENTIFICATION
Number Component
1 Push to feed in direction of arrow #1
2
3
4
7
8
6
6
15
