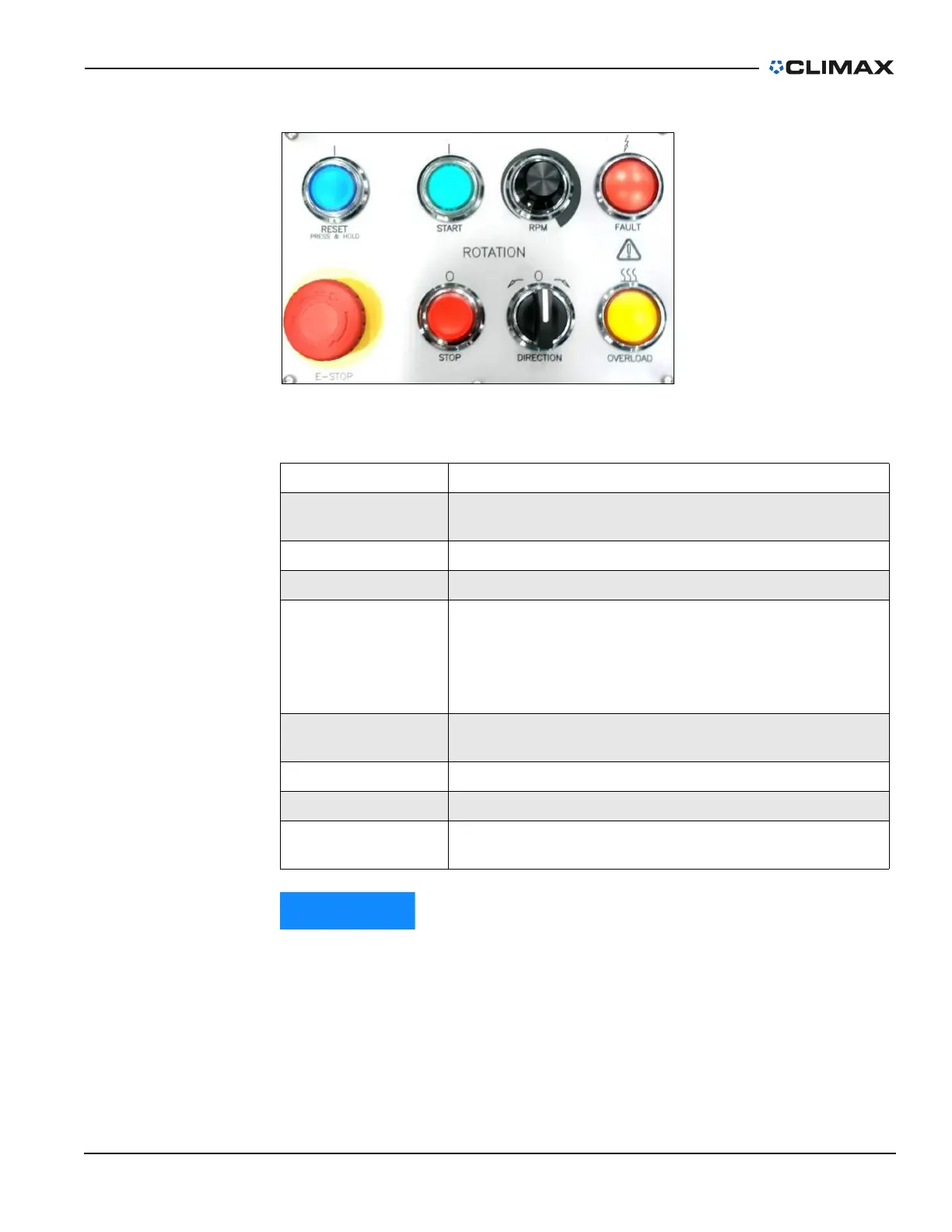

FIGURE 3-16. SERVO MOTOR PENDANT CONTROLS
The 230V and 460V units cannot be converted between voltages.
There is no servo drive for the BB4500.
TABLE 3-9. SERVO MOTOR CONTROL FUNCTIONS
Function Action
Reset
Press and hold for three seconds to start the control system
on power up, or to reset after an E-Stop.
Start Hold for three seconds to start the spindle rotation.
RPM Controls the rotational bar speed from 3–230 RPM.
Fault light
Indicates that the servo drive has stopped due to a fault con-
dition, such as the following:
• Motor overload
• Loss of feedback
• Motor is disconnected
E-stop
Press to immediately stop all machine functions and discon-
nect the motor from power.
Stop Press to stop the spindle rotation.
Direction Turn to change the direction of bar rotation.
Overload indicator
Warns that a fault condition is imminent unless the load is
reduced.
