Climax BB5000 - Igure B-27. Servo Drive Motor Non -Ce Assembly (P;N 71072)

Page 110 BB4500-BB5000 Operating Manual

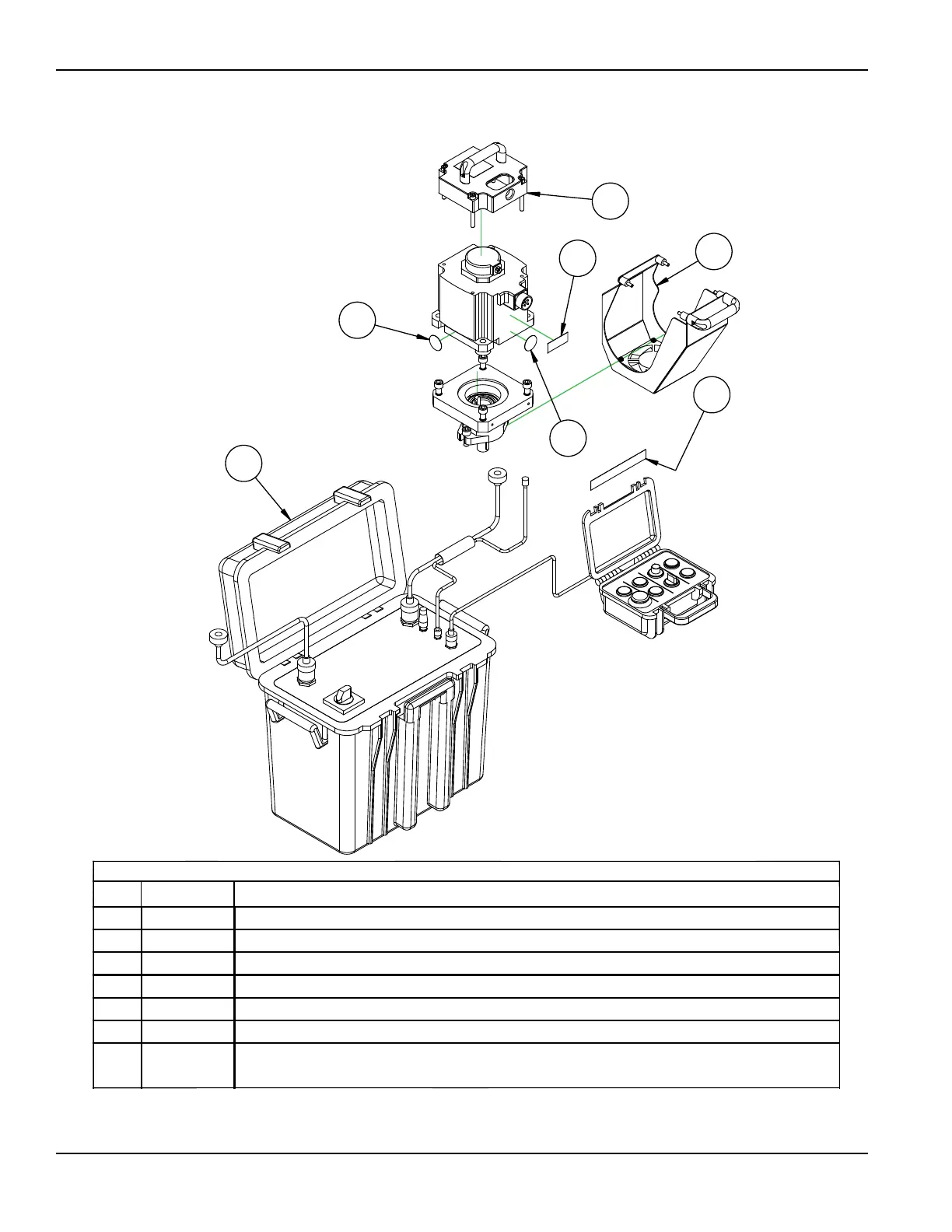

FIGURE B-27. SERVO DRIVE MOTOR 460V NON-CE ASSEMBLY (P/N 71072)
PARTS LIST
DESCRIPTION
PART No.ITEM
ADAPTER BB5000 RDU TO SERVO MOTOR
515361
GUARD ASSY BB5000 SERVO MOTOR
529372
LABEL WARNING HOT HAND
534643
LABEL WARNING VOLTAGE
534824
LABEL WARNING VOLTAGE CABLE
53483
5
SHROUD FAN BB5000 SERVO ASSY
567736
ASSY BB5000 SERVO DRIVE 460VAC CONTROLS MOTOR AND CABLES
NOT CE 2ND GEN
71067
7
2
4
3
5
7
3
6
