P/N 92974, Rev. 1 Page 25

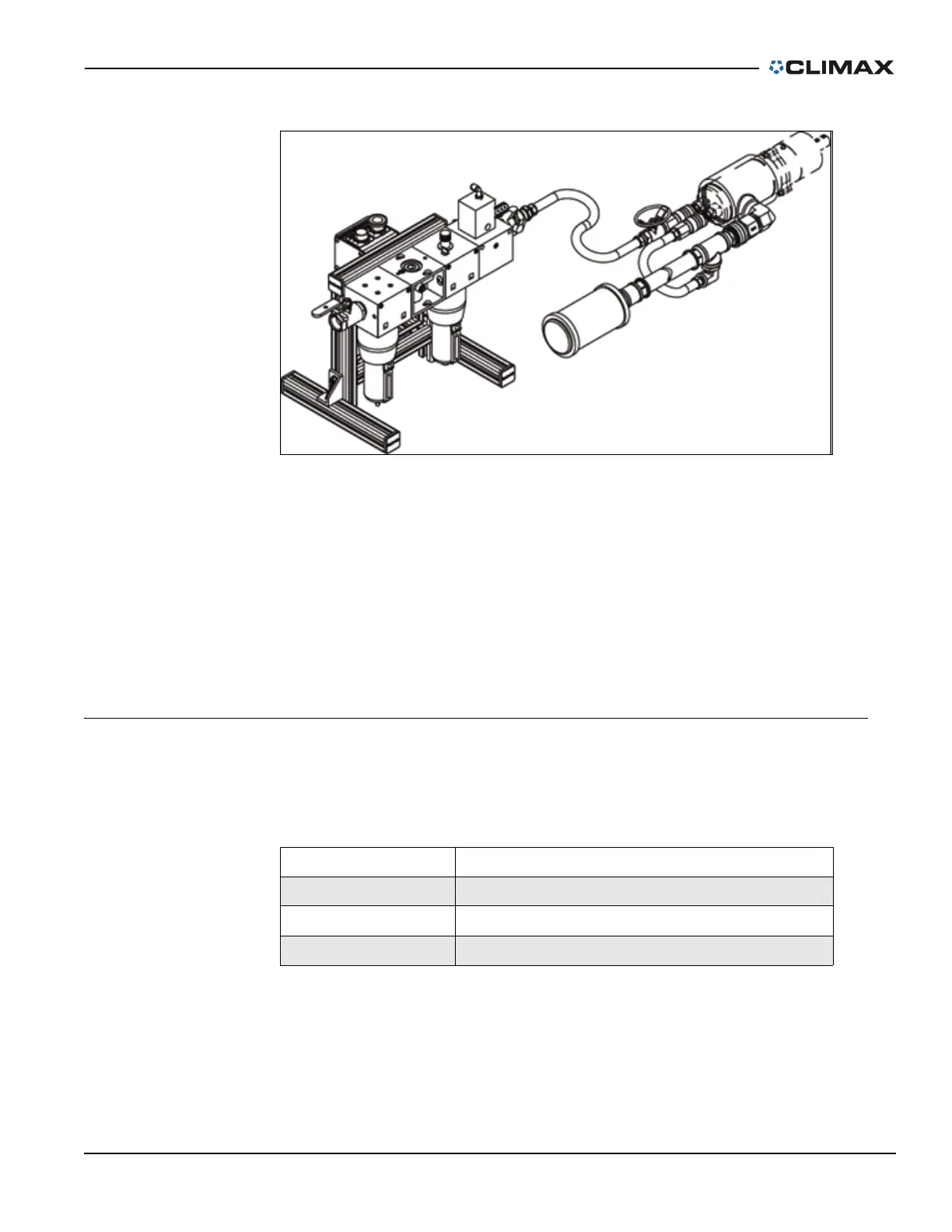

F
IGURE 2-12. PNEUMATIC CONDITIONING UNIT
Emergency shutdown
To stop machine operation immediately, press the emergency stop button on the
PCU.
Before restarting the BB4500-BB5000, check the following:
1. Close the speed adjustment valve.
2. Pull the emergency stop button up.
3. Press the START button (repeat step 1 if necessary).
2.5 DIMENSIONS
Table 2-16 shows the BB4500 and BB5000 dimensions.
The following figures show the BB4500-BB5000 machine and operating dimen-
sions.
TABLE 2-16. DIMENSIONS
Component Width x diameter x height
Machine 52.5” x 27” x 16.5” (1,334 x 686 x 419 mm)
72" (1,828.8 mm) bar 74.5” x 6.5” x 7” (1,892 x 165 x 178 mm)
HPU 49.5” x 30.5” x 41” (1,257 x 775 x 1,041 mm)
