P/N 92974, Rev. 1 Page 21
2.4.3 Electric motor
Two electric versions of the BB5000 are available, as described in Table 2-9 on
page 22. The motor has an integrated rotation reverse switch, while the pendant
controller has an off/off switch, emergency stop, and a speed control knob.

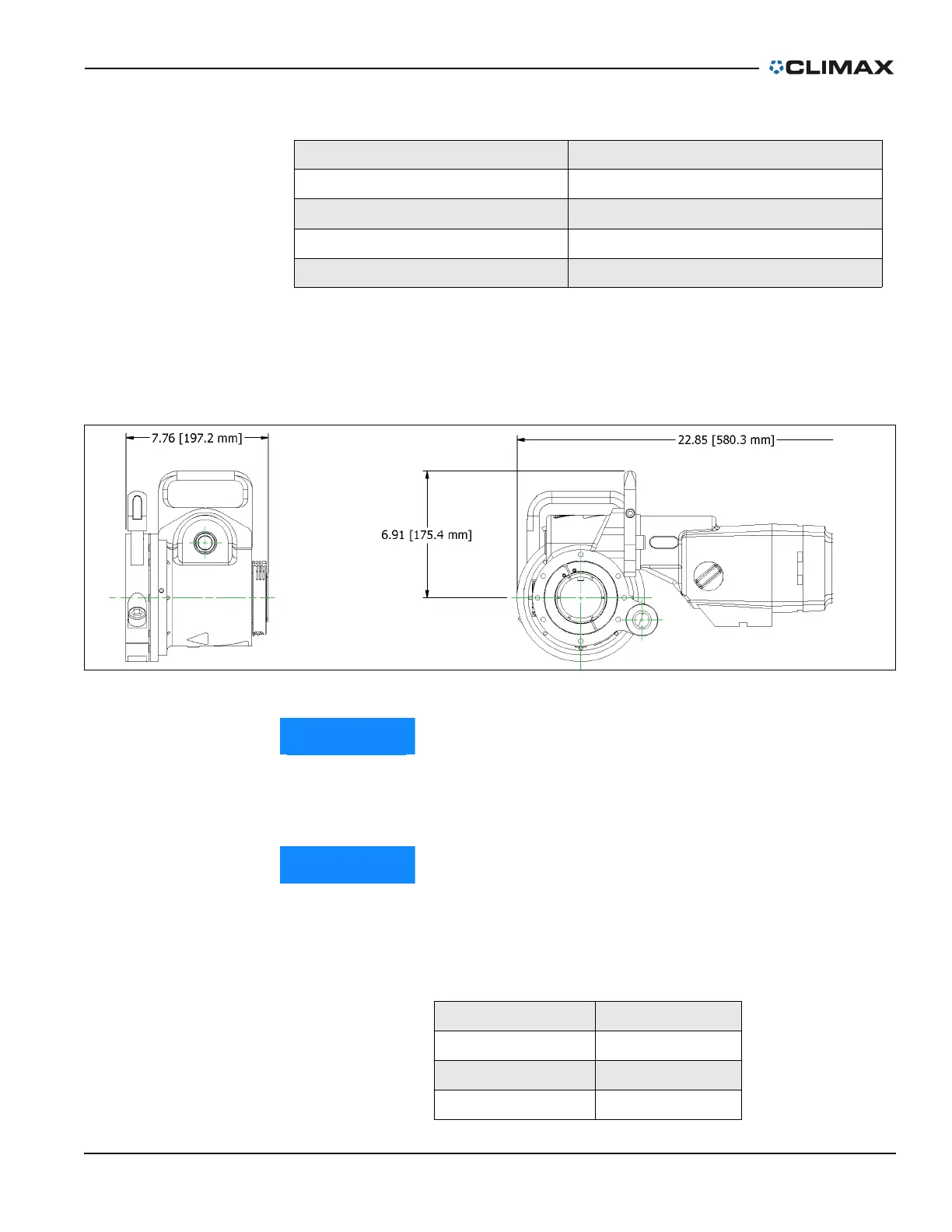

FIGURE 2-10. RDU AND EIBENSTOCK MOTOR DIMENSIONS
The second-generation Eibenstock motor is incompatible with the third-
generation RDU. The second-generation Eibenstock motor requires the
fourth-generation RDU.
Table 2-8 shows the four mains power plugs for the control box that
CLIMAX offers. If the plug needed is not included in Table 2-8, the end
user must cut off the factory-installed plug and install their own.
Speed maximum: 3,000 RPM
Speed permissible instantaneous: 3,450 RPM
Nominal rated full load hp: 4.7 hp (3.5 kW)
Motor torque rated: 12.3 ft-lbs (16.7 Nm)
Motor torque maximum: 37.0 ft-lbs (50.1 Nm)
TABLE 2-7. BB5000 SERVO MOTOR SPECIFICATION (CONTINUED)
TABLE 2-8. CONTROL BOX
120V Controller: L5-30P twist-lock
120V Controller: ISO 309/CEE17
230V Controller: CEE 7/7 Schuko
230V Controller: 6L-15P twist-lock
