Page 20 BB4500-BB5000 Operating Manual
The 4.7 hp servo motor with a 12:1 worm gear reduction RDU provides quiet,
reversible and extreme torque for operating the BB5000.

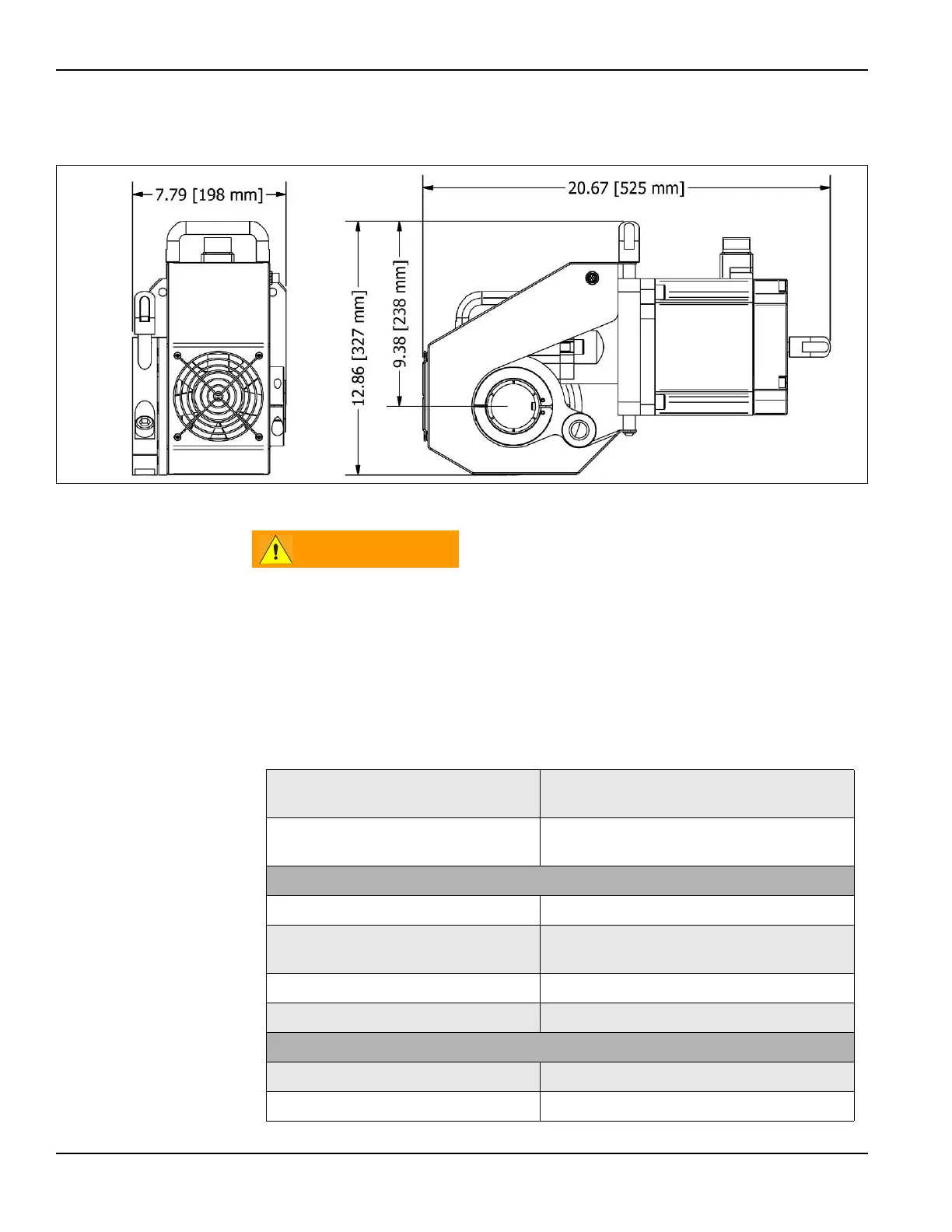

FIGURE 2-9. BB5000 SERVO DRIVE DIMENSIONS
Handle cables carefully. Do not pull on them, step on them, or allow
them to be kinked. Pelikan cases are water resistant, not water-proof.
Do not turn on the power unless all cables are plugged in. Do not
unplug cables unless disconnected from mains power.
Servo drives for the BB5000 are available in 230V (16 amps) or 460V (8.5 amps).
TABLE 2-7. BB5000 SERVO MOTOR SPECIFICATION
Input power for the 230V system:
200V–240V, 50/60 Hz dual-rated, 16 amp,
3-phase
Input power for the 460V system:
380V–480V, 50/60 Hz dual-rated, 8.5 amp,
3-phase
Bar
Bar speed: 3–230 RPM
Bar rated torque (continuously
running):
3–167 RPM: 147.9 ft-lbs (200.4 Nm)
Bar maximum torque: 3–230 RPM: 443.7 ft-lbs (600.4 Nm)
Rotation: Variable speed and reversible
Motor
Manufacturer: Mitsubishi
Speed rated continuous: 2,000 RPM
