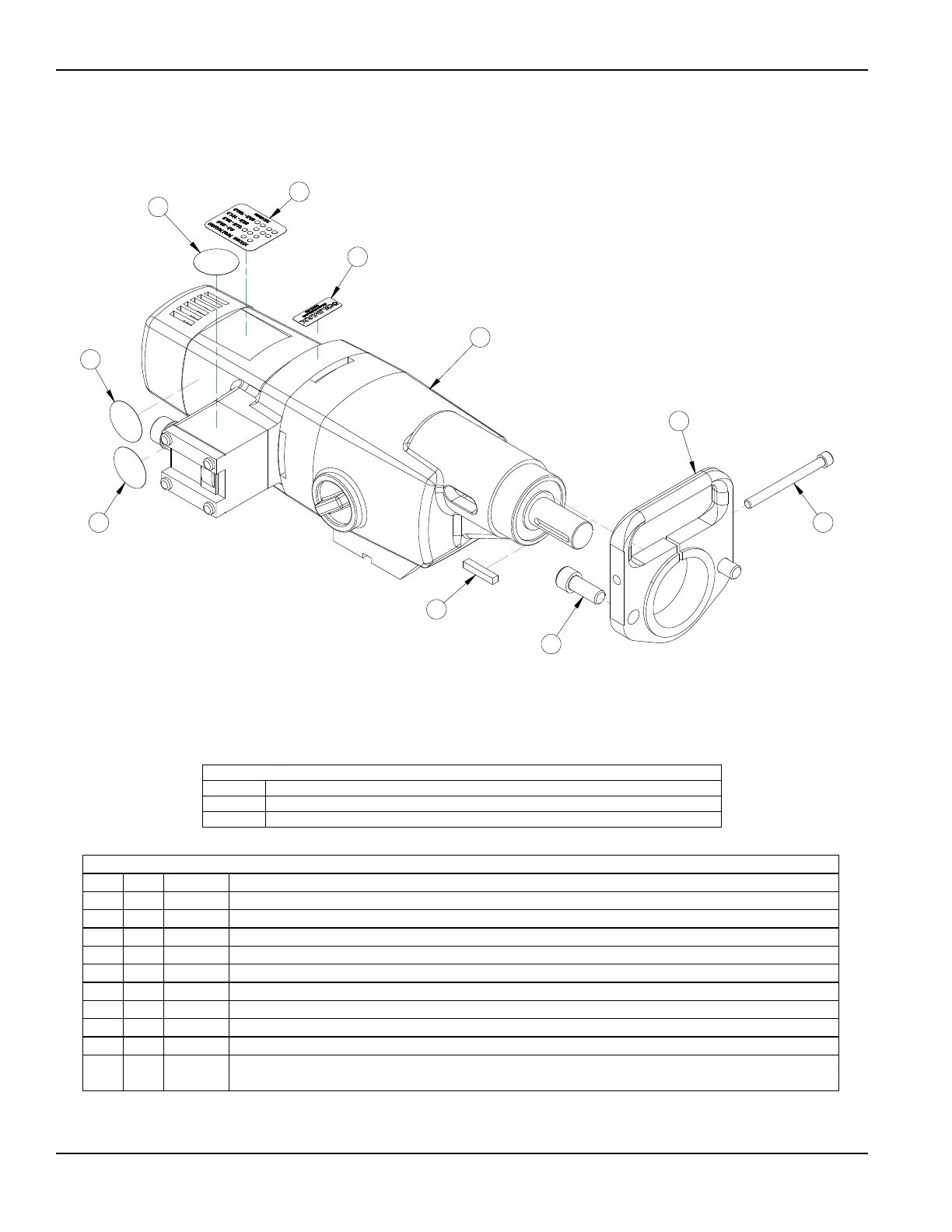

FIGURE A-13. EIBENSTOCK MOTOR ASSEMBLY (P/N 88012)
PARTS LIST
DESCRIPTIONP/N:QTY
ITEM
SCREW 5/16-18 X 3-1/2 SHCS
1187311
SCREW 1/2-13 X 1-1/4 SHCS
1264622
KEY 1/4 SQ X 1.37 SQ BOTH ENDS1572413
LABEL CLIMAX LOGO .66 X 1.75563001
4
LABEL WARNING - WEAR EAR PROTECTION590371
5
LABEL WARNING - CONSULT OPERATOR'S MANUAL 1.5 DIA5904416
FLANGE MOTOR MTG ELEC RDU BB5000756481
7
LABEL WARNING - DO NOT EXPOSE TO WATER
7882418
LABEL EIBENSTOCK RPM RANGES
8439319
NFIS MOTOR ELECTRIC 4 SPEED REVERSIBLE 120V CE EIBENSTOCK EAU 34/4.3 CB GEN 2
NFIS MOTOR ELECTRIC 4 SPEED REVERSIBLE 230V CE EIBENSTOCK EAU 34/4.3 CB GEN 2
88004
88005
110
1
7
2
3
5
8
6
10
4
9
AVAILABLE CONFIGURATIONS
PART NO DESCRIPTION
88008 MOTOR ELECTRIC ASSY EIBENSTOCK 120 V 4 SPEED REVERSIBLE GEN 2
88009
MOTOR ELECTRIC ASSY EIBENSTOCK 230 V 4 SPEED REVERSIBLE GEN 2
