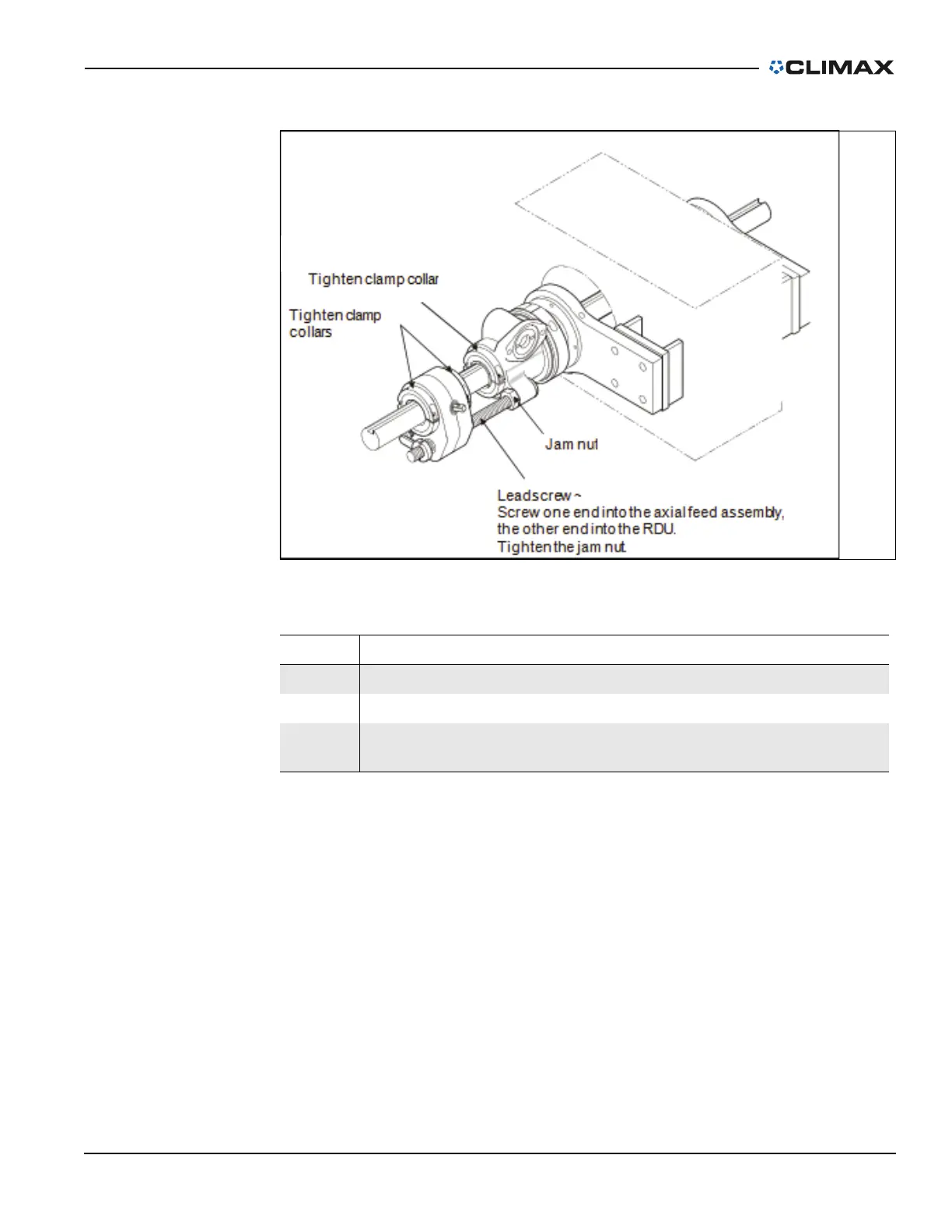

FIGURE 3-11. CLAMP COLLARS ON THE AFU
6. Hold the motor assembly so that the motor shaft is able to slide into the
RDU housing. The key in the motor shaft must align with the keyway in
the main drive worm.
7. Push the motor into the housing until the flange is snug against the drive
housing face.
8. Tighten the mounting screws.
9. Install the leadscrew into the AFU. Check that the jam nut is on the other
end of the leadscrew.
10. Slide the AFU onto the bar, if not already done so to position it between the
mounting support brackets.
11. Thread the leadscrew into the RDU housing. Secure the leadscrew by tight-
ening the jam nut snug against the face of the drive housing.
TABLE 3-5. CLAMP COLLARS INSTALLATION IDENTIFICATION
Number Component
1 Tighten the clamp collars
2 Jam nut
3
Leadscrew (Screw one end into the AFU, the other end into the RDU.
Tighten the jam nut.)
