4 – Operation
BodyGuard 595™Color Vision Operator Manual
30
1.
Lift the door latch (on the right side of the door) to open the BodyGuard 595
Color Vision™ pump door and remove the administration set from the sterile
packaging leaving the end caps on the line.
2.
Connect the administration set to the medication bag.
3.
Hold the section of tubing with the black key (small plastic block) and make sure
the flow direction is in line with the flow direction arrows inside the pump door.
4.
Insert the IV tubing into the pump by placing the key into the keyway as shown
by the arrow in the diagram. Insert the tubing from left to right, and avoid
stretching or pulling the tubing. Check that the key located on the tube is placed
in its correct position in the tubing guide.

NOTE: the key can only be fitted into the key space one way. If you are having
troubles fitting it do not force it in. Try to turn the line around to ensure you
have correctly lined up with the direction of flow.
5.
For products equipped with Anti-Stretch locator, locate the round blue Anti-
Stretch locator in the round space on the left side.
6.
Verify that the distal flow valve is on the right hand side of the pump.
7.
Close the pump door until the catch clicks.

NOTE: ensure that the tubing is inserted completely into the pumping channel.
Warning: use aseptic technique. Patient infection may result from the use of
non-sterile components. Maintain sterility of all disposable components and
use only once single use consumables marked .

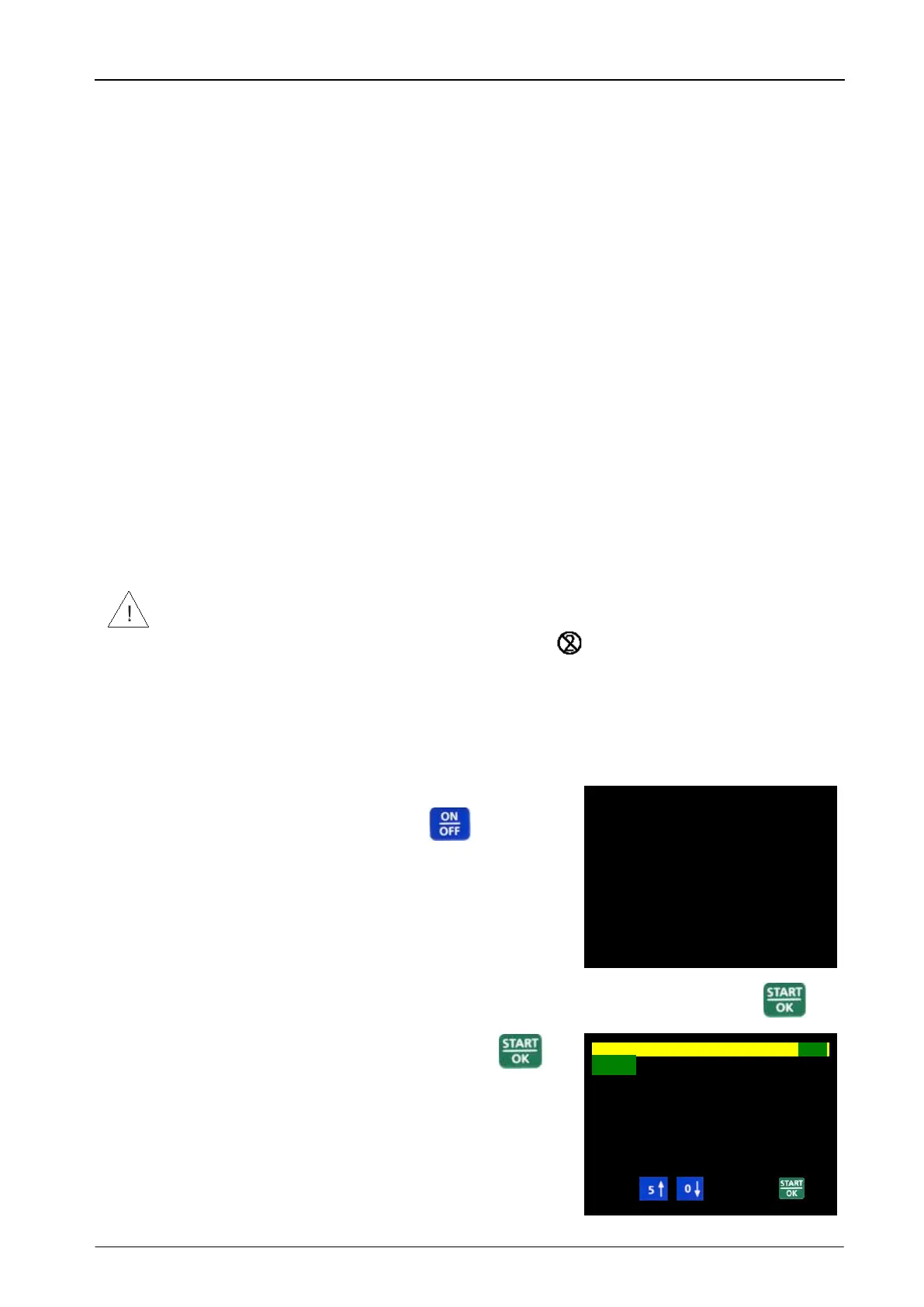

Priming the Set
1.
Once the set is loaded turn on the BodyGuard 595
Color Vision™ pump, by pressing .
2.
The screen than will prompt for level one code. Enter code 700 and press
3.
From the menu select "Prime" by pressing .
Enter level one access code again.
BodyGuard 595
Color Vision Pain Manager
Pump Serial Number: V123456
Production Date: 1-Jan-2000
Software Version
BGCV595_01L
Protocol Sample
EPIDURAL 10:00 - 70% █ ■
Prime
Select Protocol
Change Bag
View Protocol Settings
View Shift Totals
View Patient History
View Event Log
Clinician Bolus
Select , and press
