1 – Introduction
BodyGuard 595™Color Vision Operator Manual
8

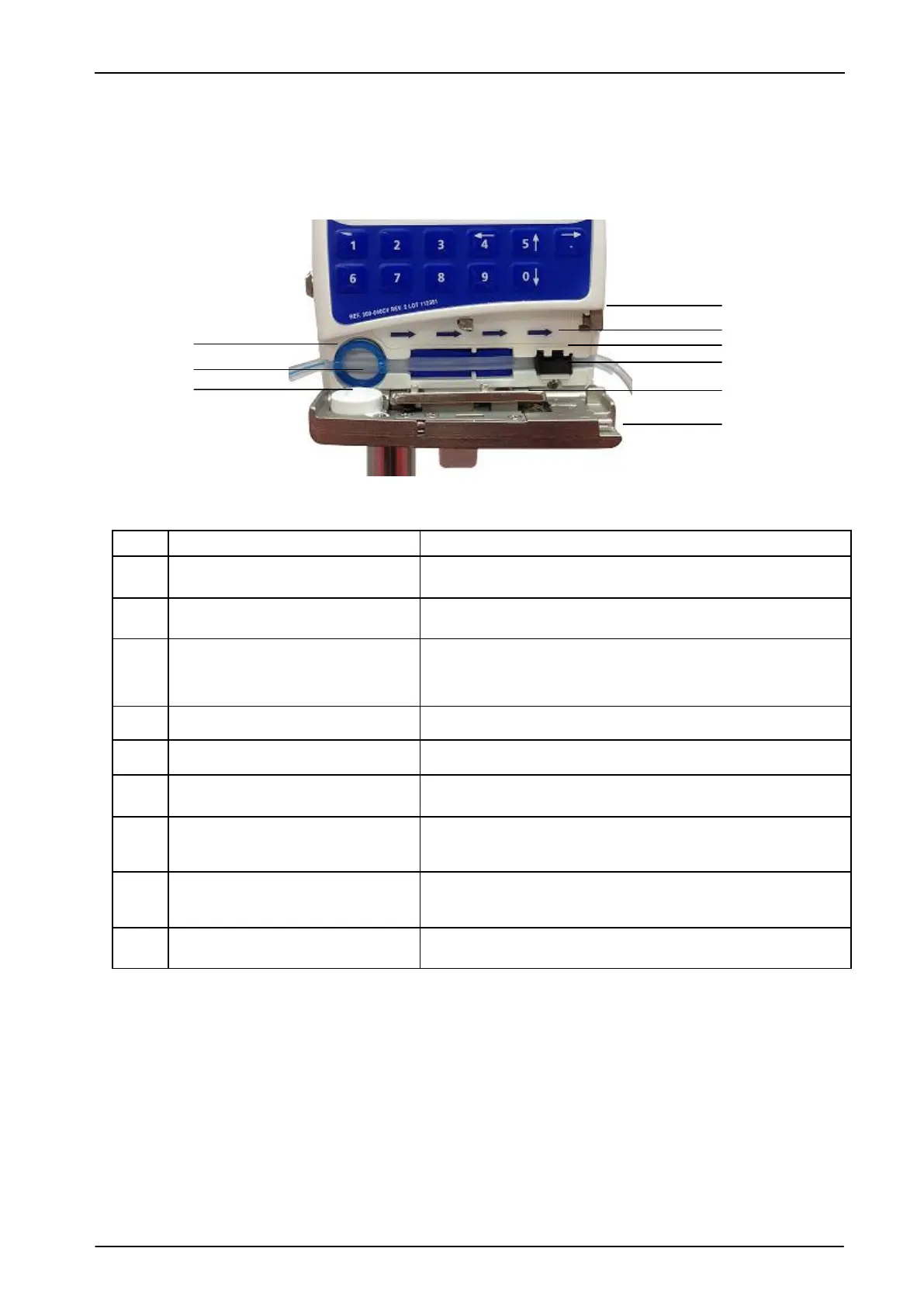

BodyGuard 595 Color Vision™ Pain Manager with Door Open
#
Area
Function
1.
Latch Holder
Holds the door closed when latch is in vertical
position.
2.
Flow Direction
Shows direction of pump operation.
3.
Pressure Sensor
Detects downstream tubing restriction and
occlusion. Alarm level can be adjusted to suit
patient needs.
4.
Keyway
Guides the administration line.
5.
Pressing Plate
Connected to the door by two springs.
6.
Pump Door
Covers the pressing plate.
7.
Anti-Stretch locator
Locates the tube in the correct length from the
key (Optional).
8.
Air sensor – Front
Ultrasonic air detector, which is mounted on the
front housing.
9.
Air sensor - Door
Mounted on the door.
9
7
8
1
2
3
4
5
6
