Repair procedures, tests, and adjustments
Manpack Transceiver 2110 series Repair Guide 77
Disassembling the transceiver
To disassemble the transceiver:
1 Disconnect any cables or antennas attached to the front panel.
1 Remove the battery pack from the base of the transceiver.
1 Stand the transceiver on its front panel.
1 Remove the six screws from the back panel and ease the panel away from the
chassis.
1 Disconnect the battery connector.
1 Loosen the labelled screw about 5 mm, then push the screw back into the hole.
1 Stand the transceiver upright.
1 Remove the six screws from the front panel.
1 Locate the open end of the housing over a block of wood that fits within the housing
and is approximately 100 mm high, then push the housing down to expose the
chassis.

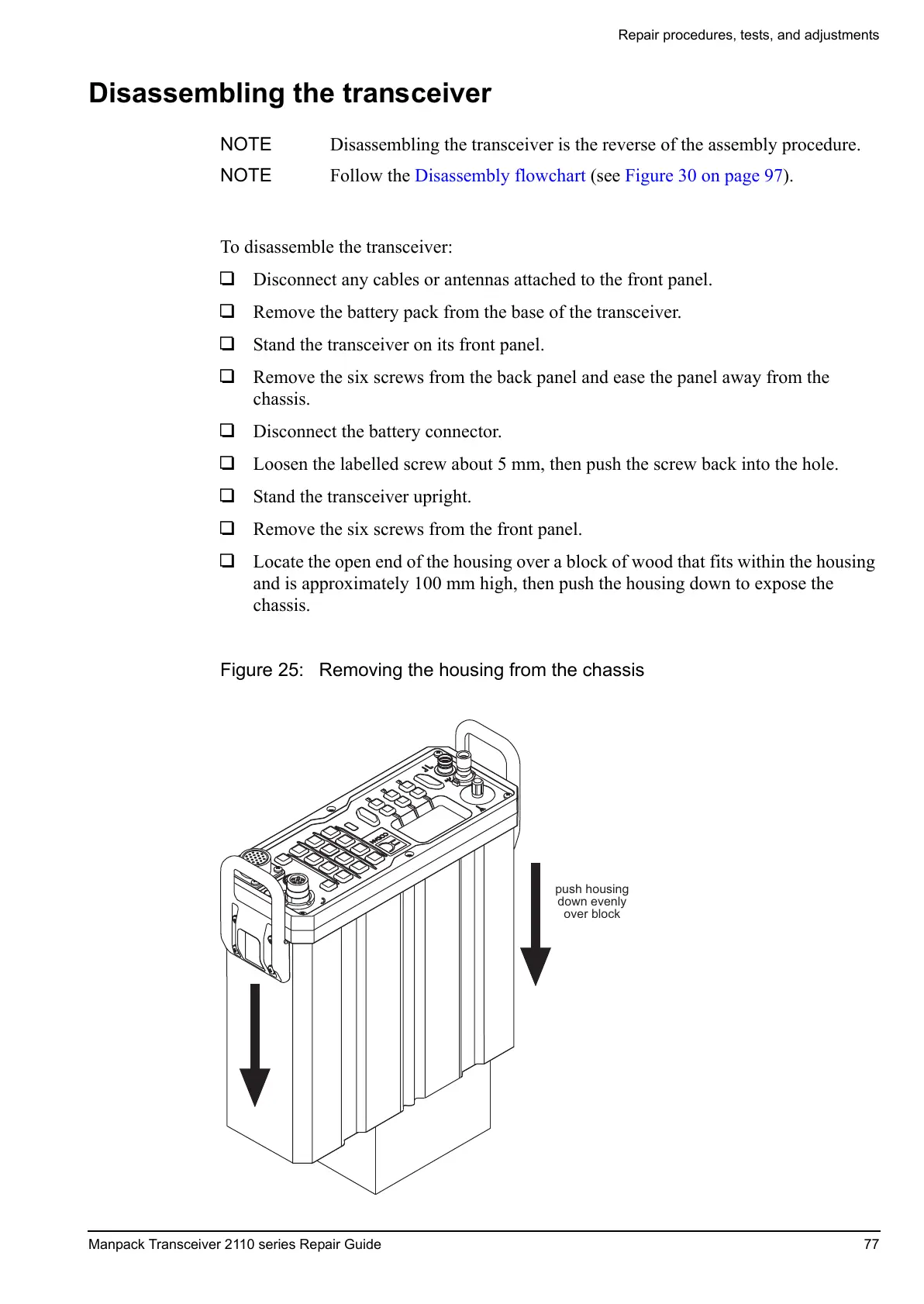

Figure 25: Removing the housing from the chassis
NOTE Disassembling the transceiver is the reverse of the assembly procedure.
NOTE Follow the Disassembly flowchart (see Figure 30 on page 97).
push housing
down evenly
over block
To Next Page
