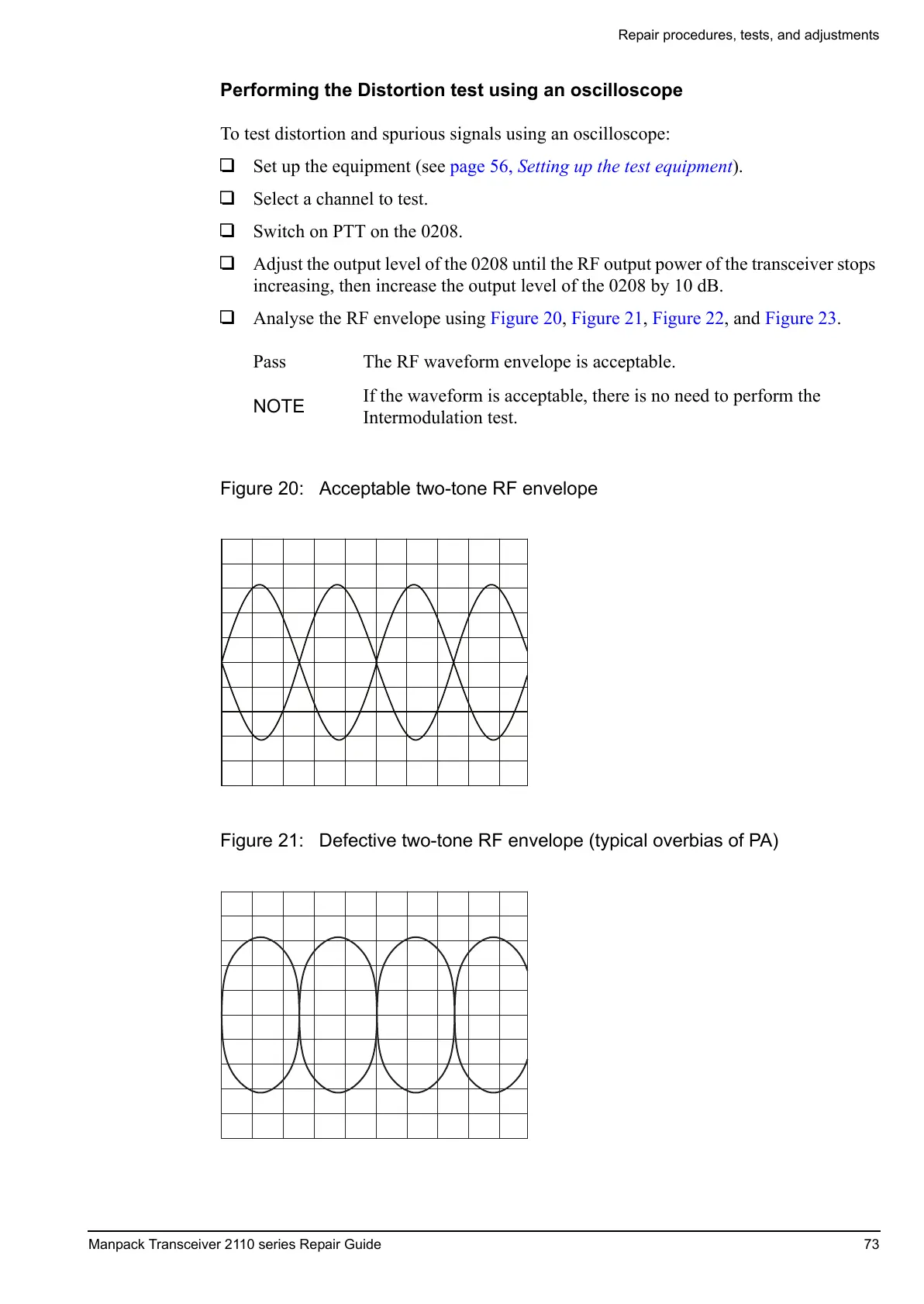

Performing the Distortion test using an oscilloscope
To test distortion and spurious signals using an oscilloscope:
1 Set up the equipment (see page 56, Setting up the test equipment).
1 Select a channel to test.
1 Switch on PTT on the 0208.
1 Adjust the output level of the 0208 until the RF output power of the transceiver stops
increasing, then increase the output level of the 0208 by 10 dB.
1 Analyse the RF envelope using Figure 20, Figure 21, Figure 22, and Figure 23.
Figure 20: Acceptable two-tone RF envelope
Figure 21: Defective two-tone RF envelope (typical overbias of PA)
Pass The RF waveform envelope is acceptable.
NOTE
If the waveform is acceptable, there is no need to perform the
Intermodulation test.
