Repair procedures, tests, and adjustments
58 Manpack Transceiver 2110 series Repair Guide

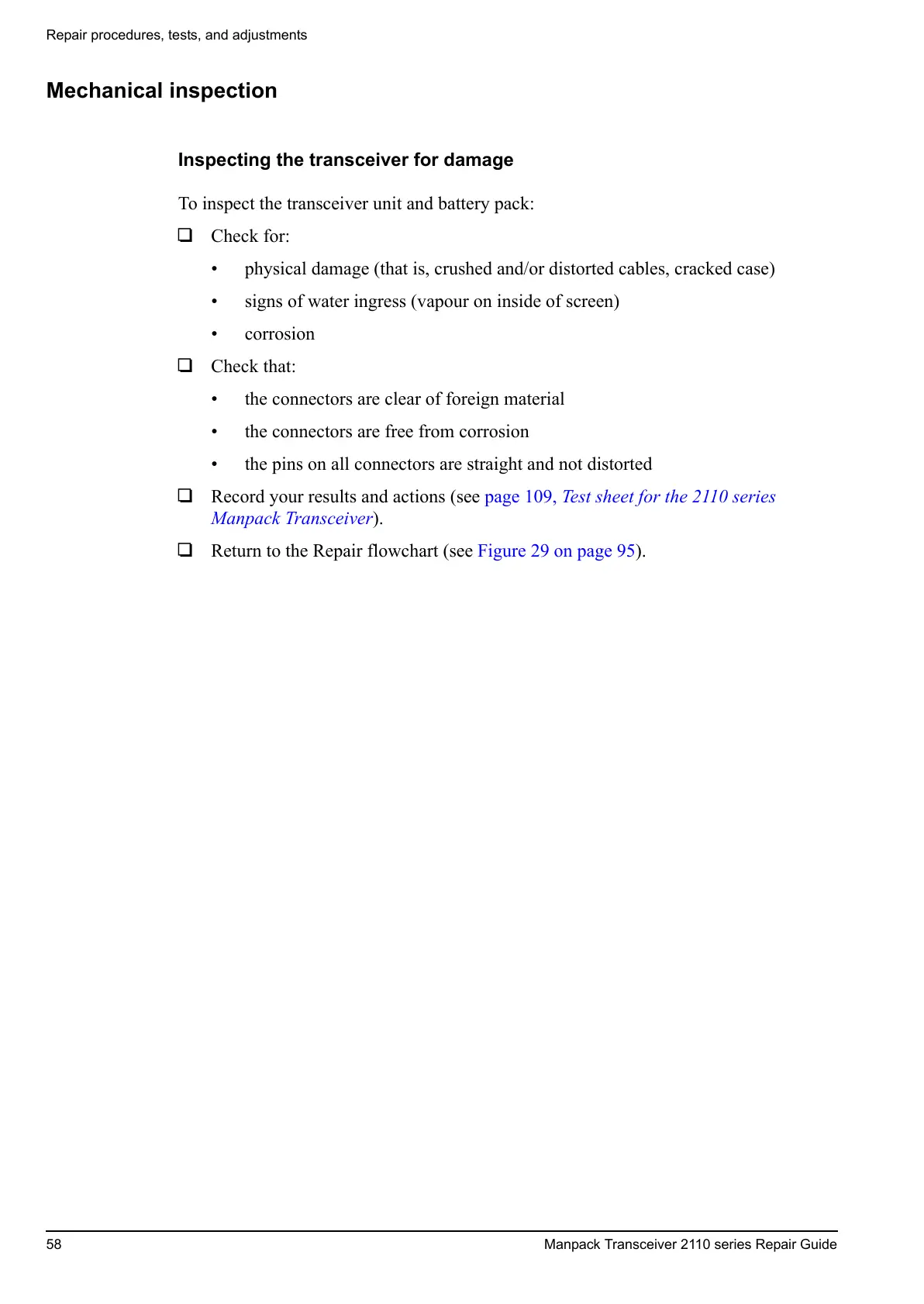

Mechanical inspection
Inspecting the transceiver for damage
To inspect the transceiver unit and battery pack:
1 Check for:
• physical damage (that is, crushed and/or distorted cables, cracked case)
• signs of water ingress (vapour on inside of screen)
• corrosion
1 Check that:
• the connectors are clear of foreign material
• the connectors are free from corrosion
• the pins on all connectors are straight and not distorted
1 Record your results and actions (see page 109, Test sheet for the 2110 series
Manpack Transceiver).
1 Return to the Repair flowchart (see Figure 29 on page 95).
