Codan 2110 series Repair Guide

Repair procedures, tests, and adjustments
54 Manpack Transceiver 2110 series Repair Guide

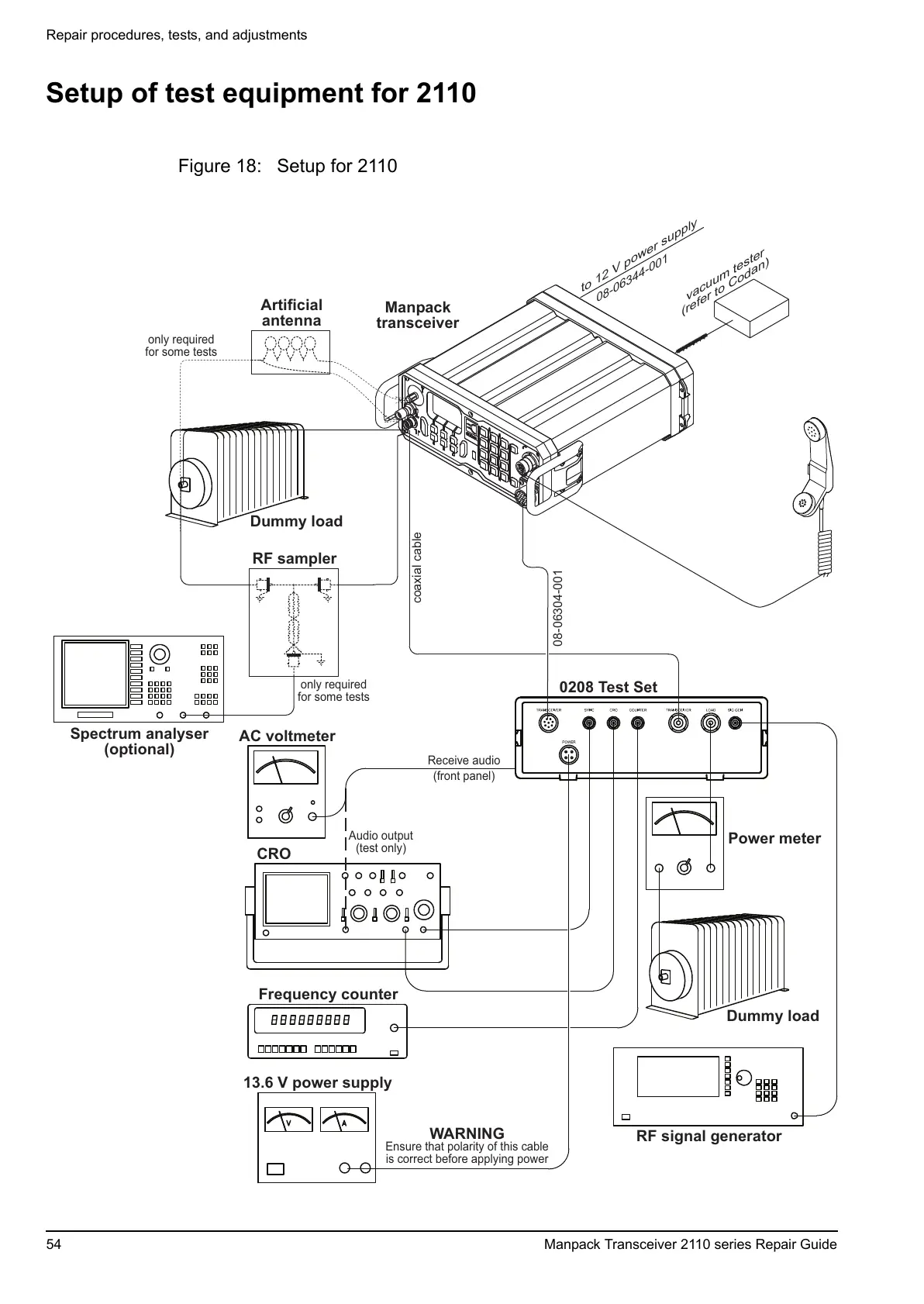

Setup of test equipment for 2110
Figure 18: Setup for 2110
0208 Test Set
AC voltmeter
CRO
Frequency counter
13.6 V power supply
Power meter
Dummy load
RF signal generator
(front panel)
Receive audio
Audio output
(test only)
Manpack
transceiver
08-06304-001
coaxial cable
to 12 V power supply
Dummy load
Artificial
antenna
Spectrum analyser
(optional)
RF sampler
08-06344-001
vacuum tester
(refer to Codan)
WARNING
Ensure that polarity of this cable
is correct before applying power
only required
for some tests
only required
for some tests
