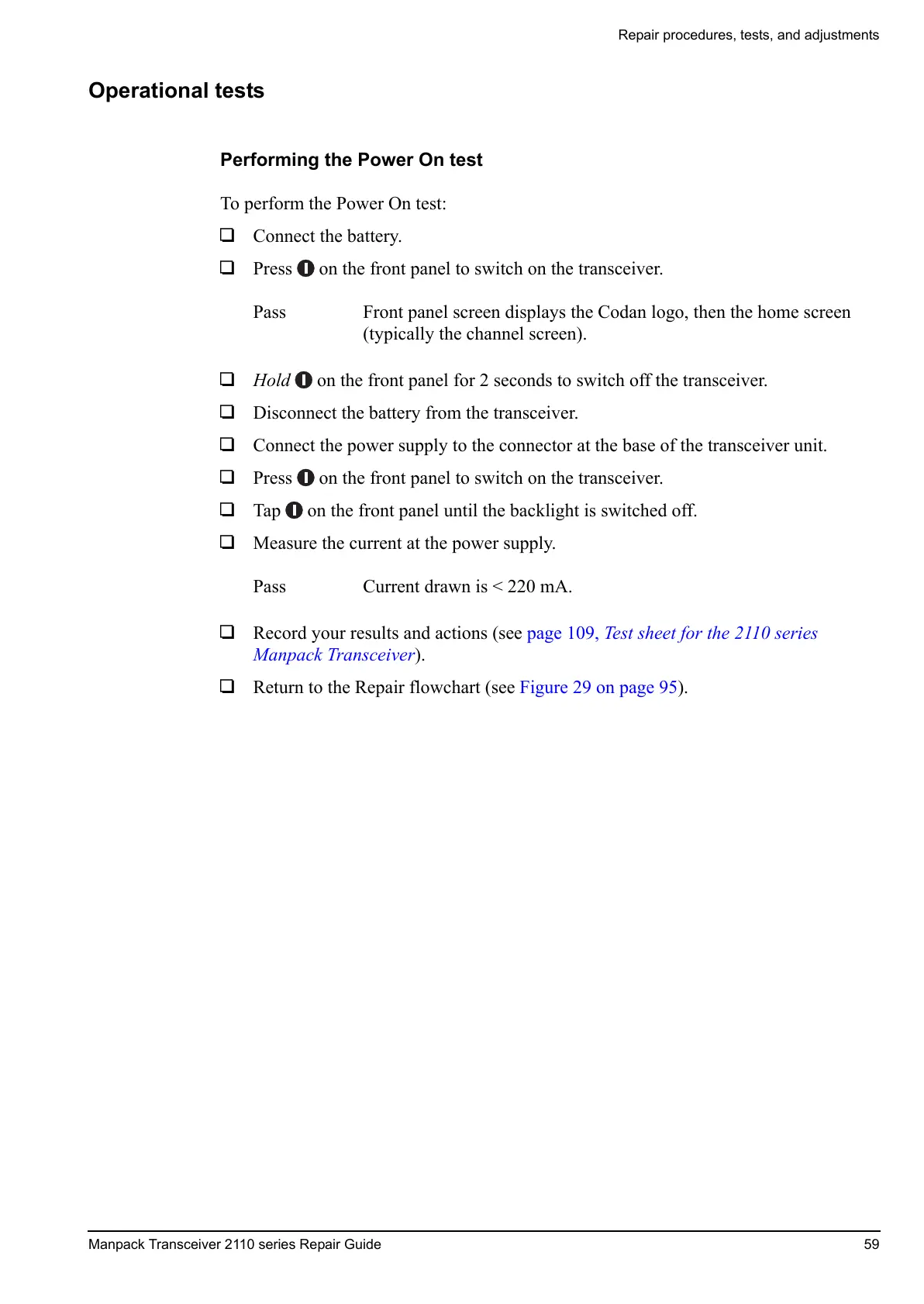

Repair procedures, tests, and adjustments
Manpack Transceiver 2110 series Repair Guide 59
Operational tests
Performing the Power On test
To perform the Power On test:
1 Connect the battery.
1 Press on the front panel to switch on the transceiver.
1 Hold on the front panel for 2 seconds to switch off the transceiver.
1 Disconnect the battery from the transceiver.
1 Connect the power supply to the connector at the base of the transceiver unit.
1 Press on the front panel to switch on the transceiver.
1 Tap on the front panel until the backlight is switched off.
1 Measure the current at the power supply.
1 Record your results and actions (see page 109, Test sheet for the 2110 series
Manpack Transceiver).
1 Return to the Repair flowchart (see Figure 29 on page 95).
Pass Front panel screen displays the Codan logo, then the home screen
(typically the channel screen).
Pass Current drawn is < 220 mA.
