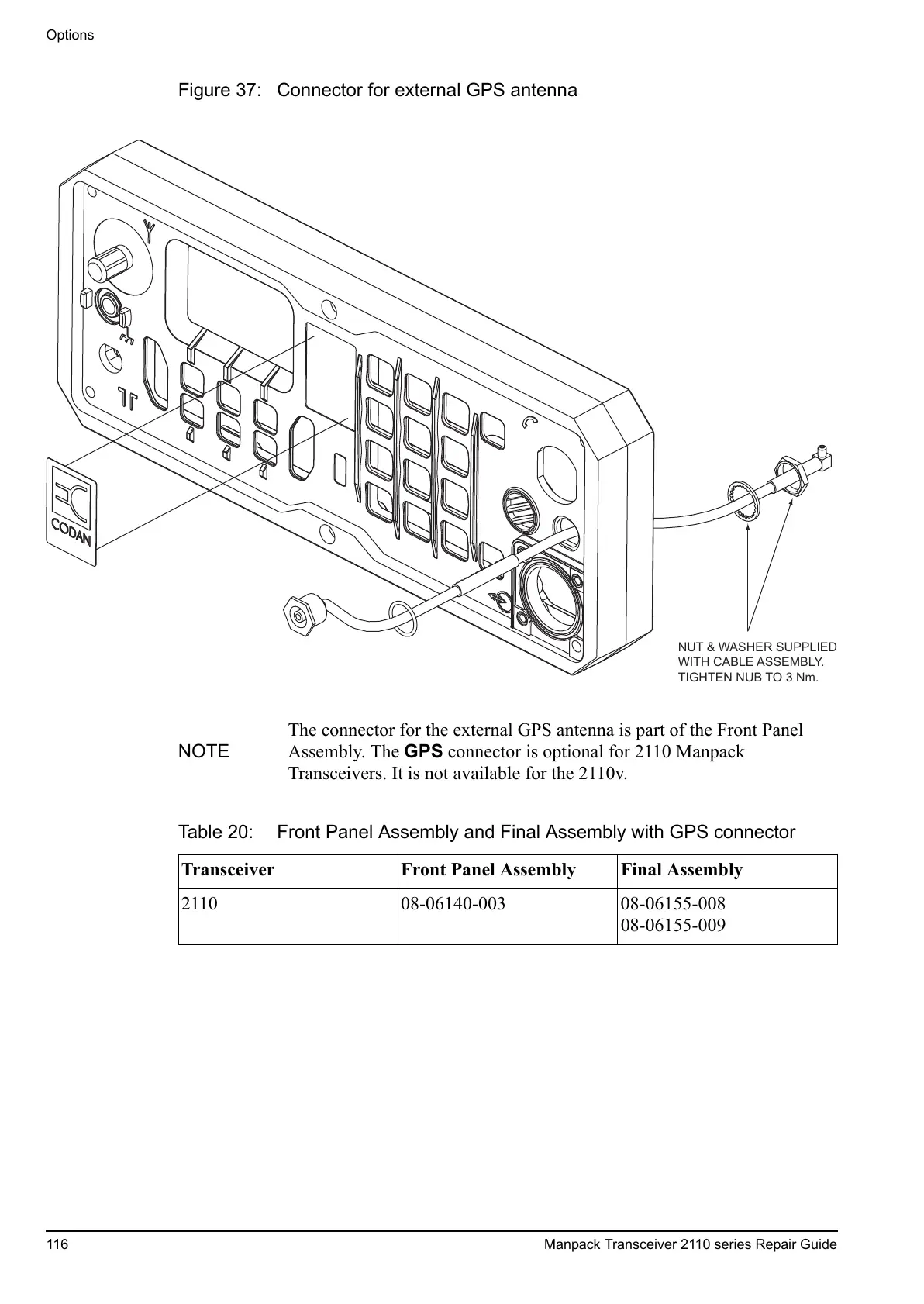

116 Manpack Transceiver 2110 series Repair Guide

Figure 37: Connector for external GPS antenna

NOTE

The connector for the external GPS antenna is part of the Front Panel

Assembly. The GPS connector is optional for 2110 Manpack

Transceivers. It is not available for the 2110v.

Table 20: Front Panel Assembly and Final Assembly with GPS connector

Transceiver Front Panel Assembly Final Assembly

2110 08-06140-003 08-06155-008

08-06155-009

NUT & WASHER SUPPLIED

WITH CABLE ASSEMBLY.

TIGHTEN NUB TO 3 Nm.
