Repair procedures, tests, and adjustments

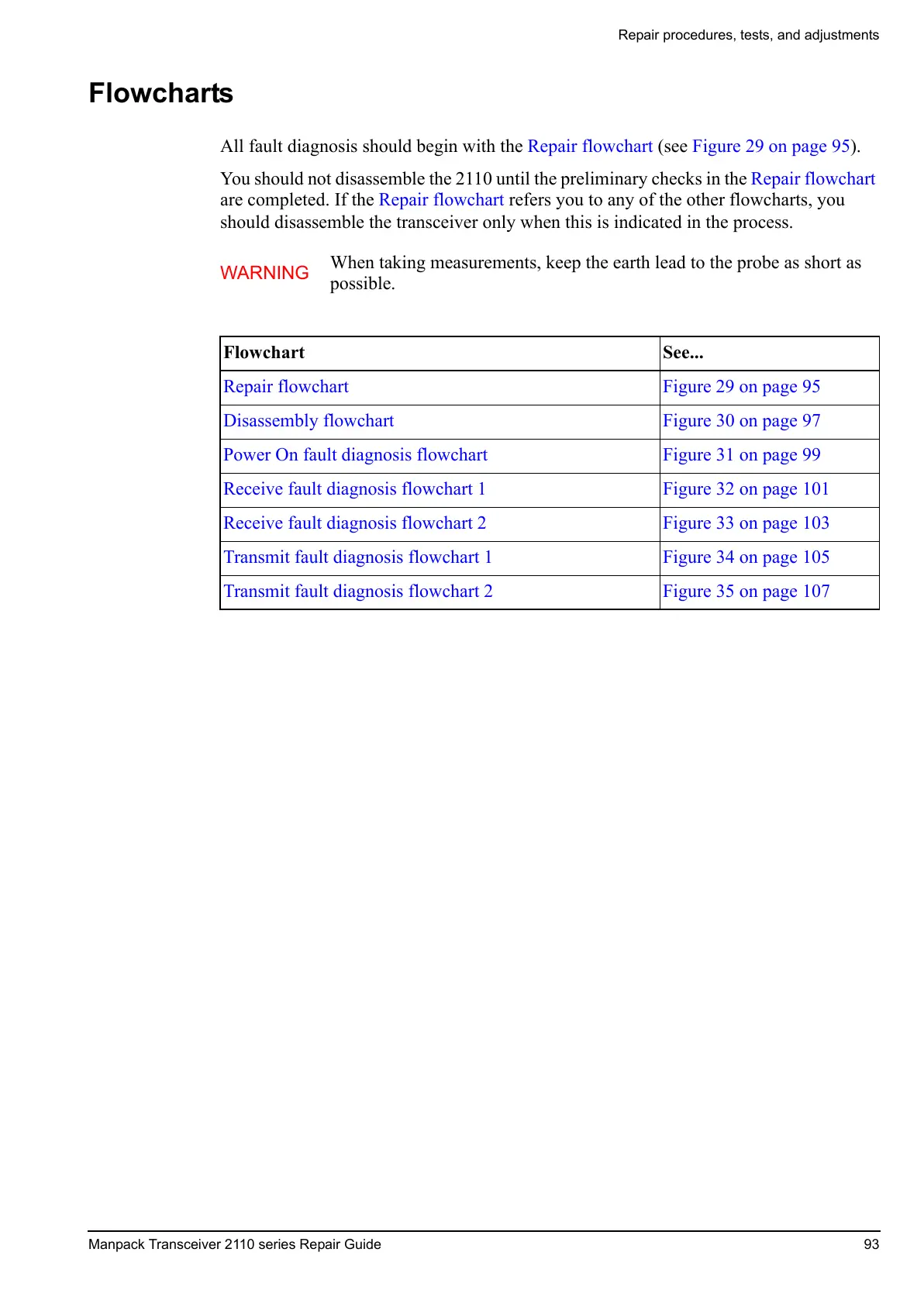

Manpack Transceiver 2110 series Repair Guide 93
Flowcharts
All fault diagnosis should begin with the Repair flowchart (see Figure 29 on page 95).
You should not disassemble the 2110 until the preliminary checks in the Repair flowchart
are completed. If the Repair flowchart refers you to any of the other flowcharts, you
should disassemble the transceiver only when this is indicated in the process.
WARNING
When taking measurements, keep the earth lead to the probe as short as
possible.
Flowchart See...
Repair flowchart Figure 29 on page 95
Disassembly flowchart Figure 30 on page 97
Power On fault diagnosis flowchart Figure 31 on page 99
Receive fault diagnosis flowchart 1 Figure 32 on page 101
Receive fault diagnosis flowchart 2 Figure 33 on page 103
Transmit fault diagnosis flowchart 1 Figure 34 on page 105
Transmit fault diagnosis flowchart 2 Figure 35 on page 107
