Overview
Manpack Transceiver 2110 series Repair Guide 13

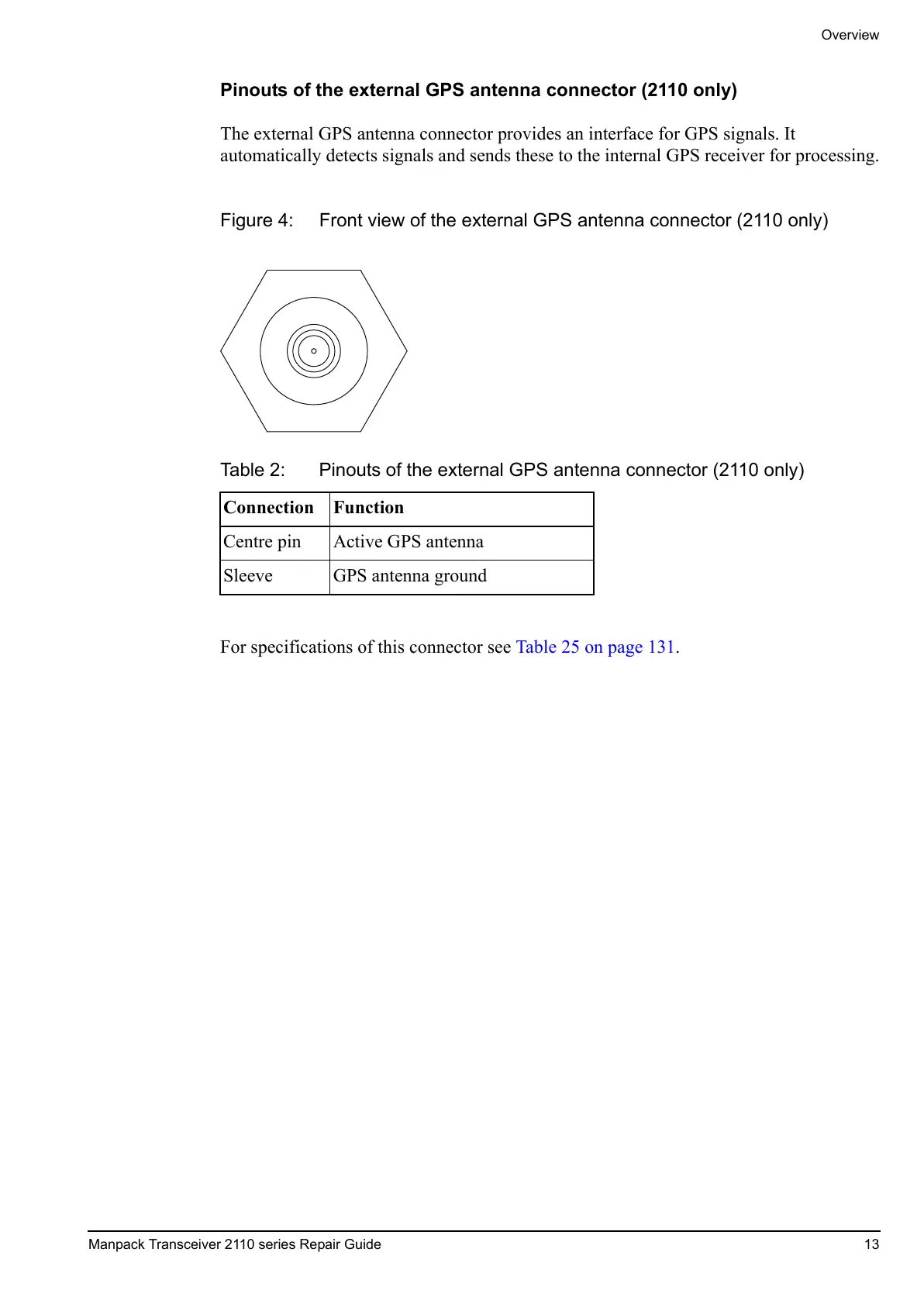

Pinouts of the external GPS antenna connector (2110 only)
The external GPS antenna connector provides an interface for GPS signals. It
automatically detects signals and sends these to the internal GPS receiver for processing.
Figure 4: Front view of the external GPS antenna connector (2110 only)
For specifications of this connector see Table 25 on page 131.
Table 2: Pinouts of the external GPS antenna connector (2110 only)
Connection Function
Centre pin Active GPS antenna
Sleeve GPS antenna ground
