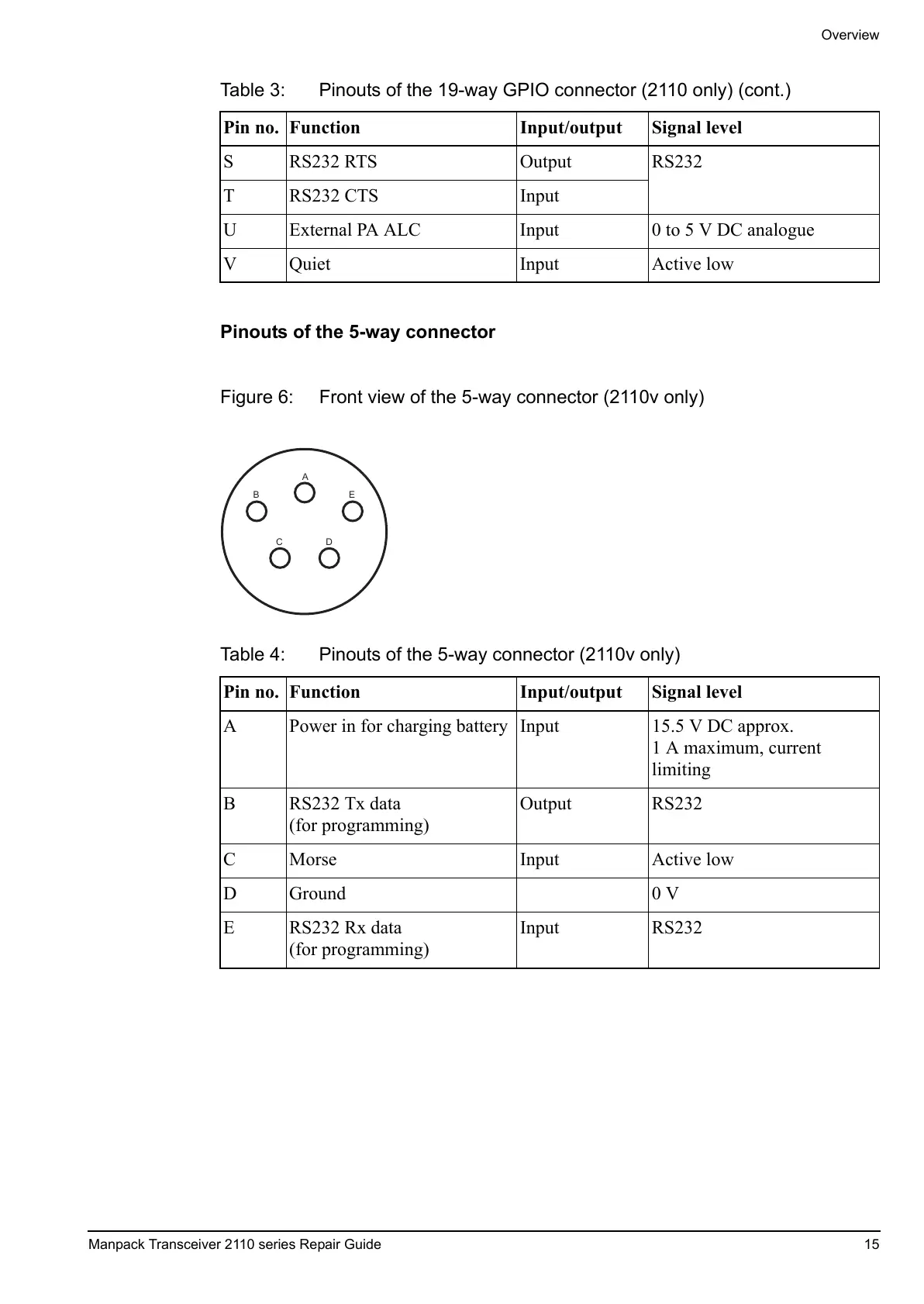

Manpack Transceiver 2110 series Repair Guide 15
Pinouts of the 5-way connector
Figure 6: Front view of the 5-way connector (2110v only)
S RS232 RTS Output RS232
T RS232 CTS Input
U External PA ALC Input 0 to 5 V DC analogue
V Quiet Input Active low
Table 4: Pinouts of the 5-way connector (2110v only)
Pin no. Function Input/output Signal level
A Power in for charging battery Input 15.5 V DC approx.
1 A maximum, current
limiting
B RS232 Tx data
(for programming)
Output RS232
C Morse Input Active low
D Ground 0 V
E RS232 Rx data
(for programming)
Input RS232
Table 3: Pinouts of the 19-way GPIO connector (2110 only) (cont.)
Pin no. Function Input/output Signal level
A
B
CD
E
