Pinouts of the battery connector on the transceiver unit

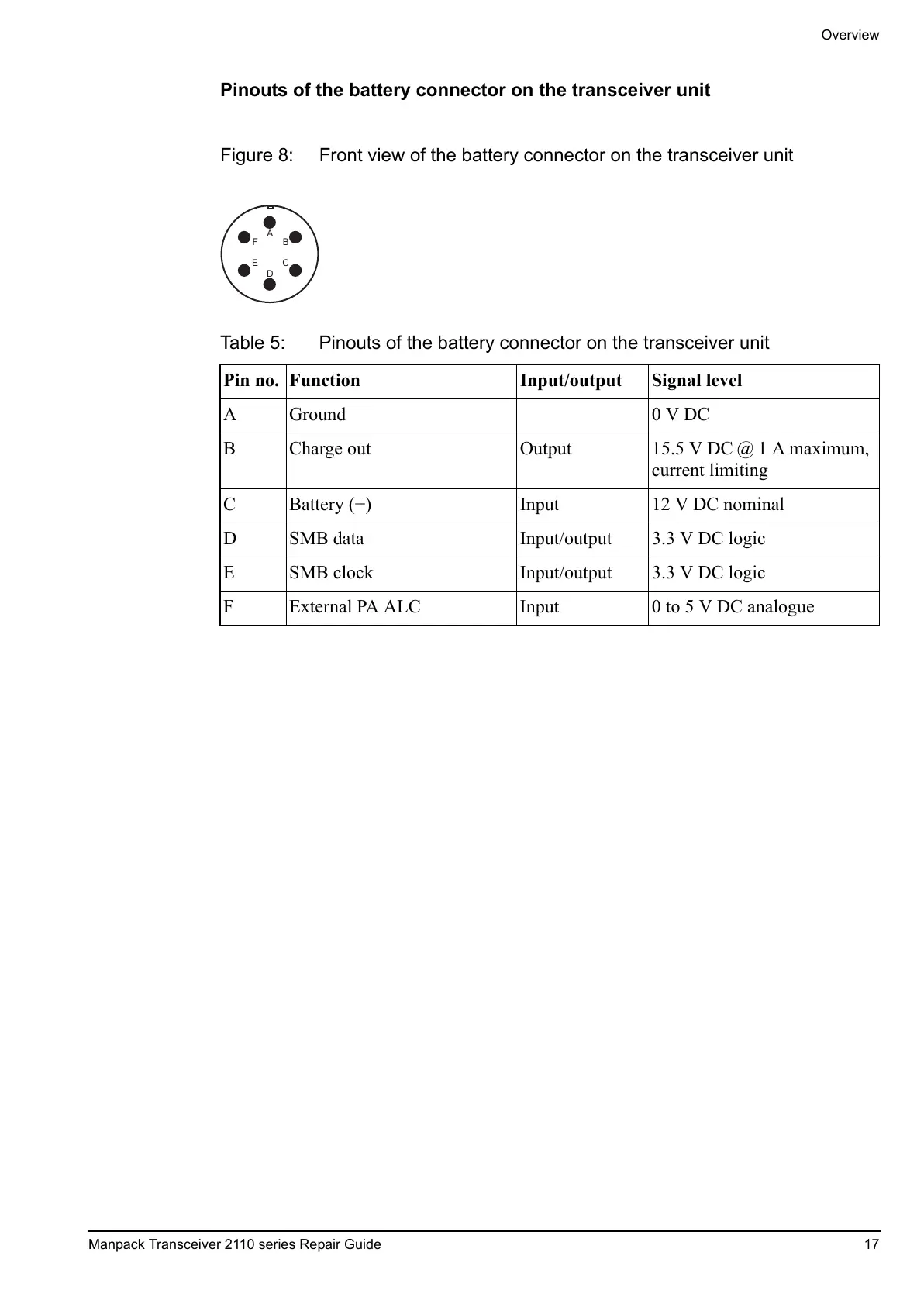

Figure 8: Front view of the battery connector on the transceiver unit
Table 5: Pinouts of the battery connector on the transceiver unit
Pin no. Function Input/output Signal level
A Ground 0 V DC
B Charge out Output 15.5 V DC @ 1 A maximum,
current limiting
C Battery (+) Input 12 V DC nominal
D SMB data Input/output 3.3 V DC logic
E SMB clock Input/output 3.3 V DC logic
F External PA ALC Input 0 to 5 V DC analogue
