2.7 - CR2 Lithium Ion Battery and CR2 Battery Blank
CR2 Battery Blank
All cabled CR2 units feature a battery blank. THE BATTERY BLANK NEEDS TO BE ATTACHED
AT ALL TIME WHEN USING THE CR2. Installing the battery blank is identical to installing the
battery. Please follow the instructions below.
Attaching and Detaching the Lithium Ion Battery
The CR2 is available with a 1400 mAH or 1950 mAH Lithium Ion battery. If you wish to purchase,
contact a Code representative. To install battery or battery blank in cradle or to detach battery from
unit, push the locking mechanism up toward the front of the scanner and insert or detach battery
(figures 2.19 & 2.20).
Charging the Lithium Ion Battery
The battery automatically charges everytime a cable inteface is attached to the unit and the host is
powered up
Note: The RS232 interface power adapter must be plugged into a wall socket for the unit to charge.
If you power-up the CR2 with a completely discharged battery using the USB or RS232 cable it will take
up to 10 minutes before the until will become operational. The unit is held off until the battery
has enough charge to operate...this can take up to 10 minutes.

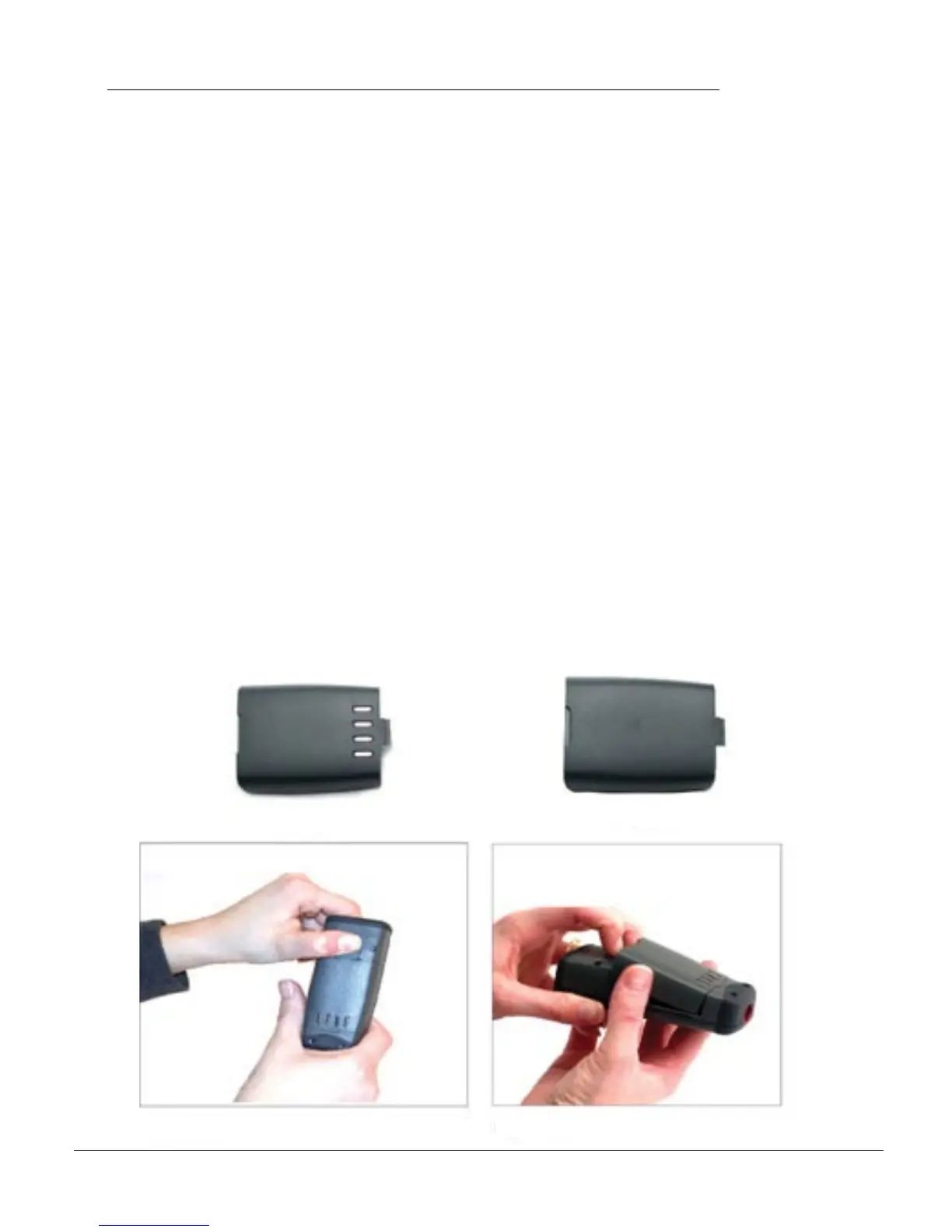

Figure 2.19
Figure 2.20
Battery
Battery Blank
