Save Settings
Near Field (NF): The nearest field of the CR2’s two image fields. The Near Field has the highest
resolution (1024 x 640 DPI). It has an optimal focal point of 4” (101.6 mm) away from the lens of the
reader. It has a size of 8.5” long (215.9 mm) by 4” wide (101.6 mm). It has an overall viewing angle of
21° x 12°.
Far Field (FF): The farthest field of the CR2’s two image fields. The Far Field has the lowest resolution
(480 x 320 DPI). It has an optimal focal point of 9” (228.6 mm) away from the lens of the reader. It has a
size of 4” wide (101.6 mm) at the optimal focal point.
Frame Rate: The number of decode attempts in a given amount of time.
Decode Try Time: The speed of decoding a given symbol. The time of decoding is dramatically
affected by the number of attempts at decoding images (frame speed) available. An attempt includes
the time used in the photographic exposure of an image, and includes the transfer of the image to the
CPU and the time taken to analyze the image, locate a symbol, and decode the symbol into data or
abandon the attempt because no data could be derived.
3.1 - Introduction (con’t)

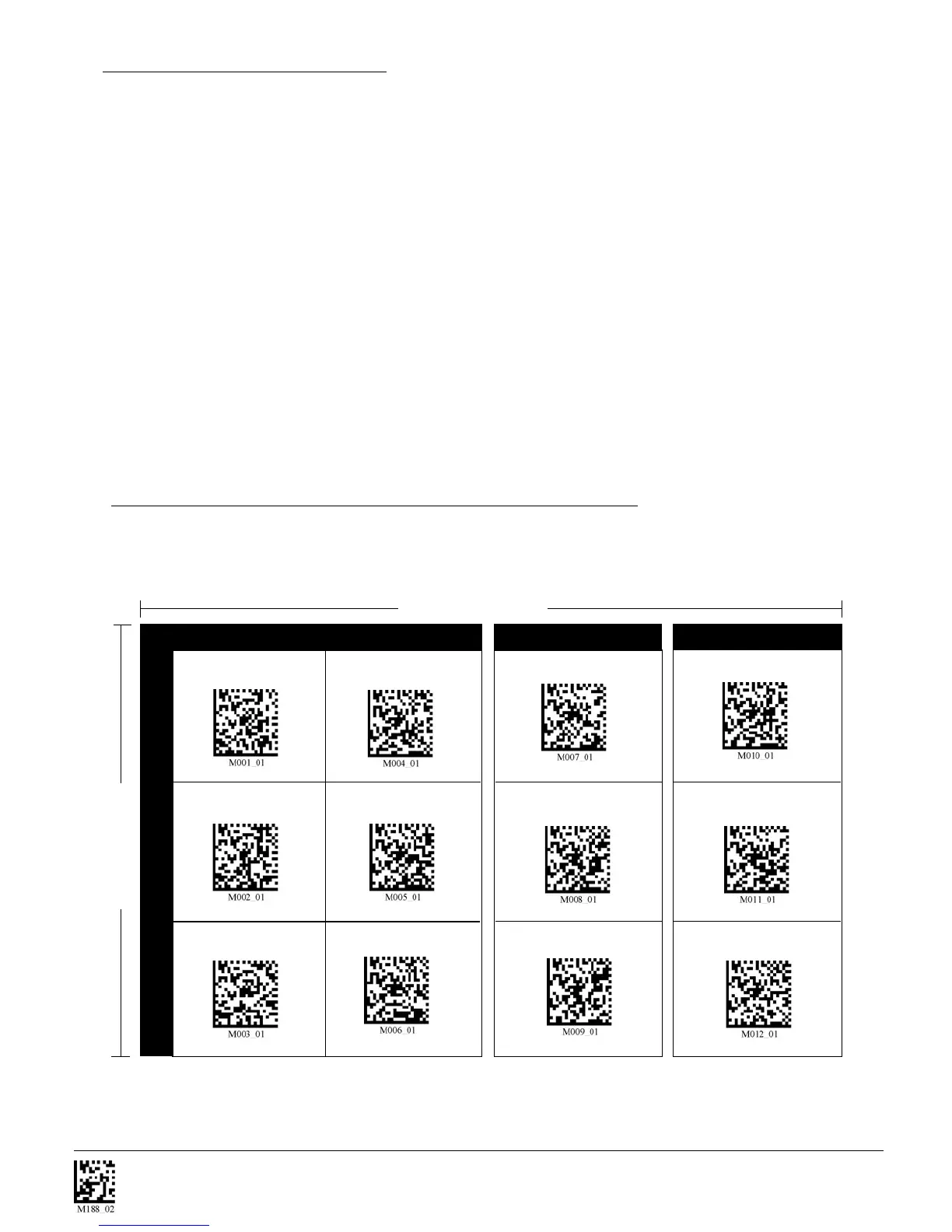

3.2 - Global Optimization Matrix (All Triggers)
Small
A1 B1 C1 D1
A2 B2 C2 D2
A3 B3 C3 D3
A B C
D
1
2
3
High
Low
Large
Symbol Density
Working Range
Scan one of the codes below to set all of the buttoms on the reader. You may also program each trigger
on the reader by scanning the charts on the next two pages.
* All triggers programmed to this setting at shipment.
After setting the configuration, you must scan the save settings code or your reader will lose its settings if the reader is powered off.
Small to Large Symbols
Near and Far Range
Small to Medium Symbols
(Close Range Only)
Medium to Large Symbols
(Far Range Only)
* Factory Default
To Next Page
