C001537_04_CR2 User Manual - 18
Save Settings
The CR2 may be easily optimized for any workplace. By setting a few parameters from your scanning
environment you can take advantage of the readers dual path 1.3 megapixel imager and 400 MHz processor.
If you are scanning large codes, small codes or even multiple sizes of different codes, by defining the working
range and the type of symbols the reader must process, the CR2 will offer lightning fast decodes.

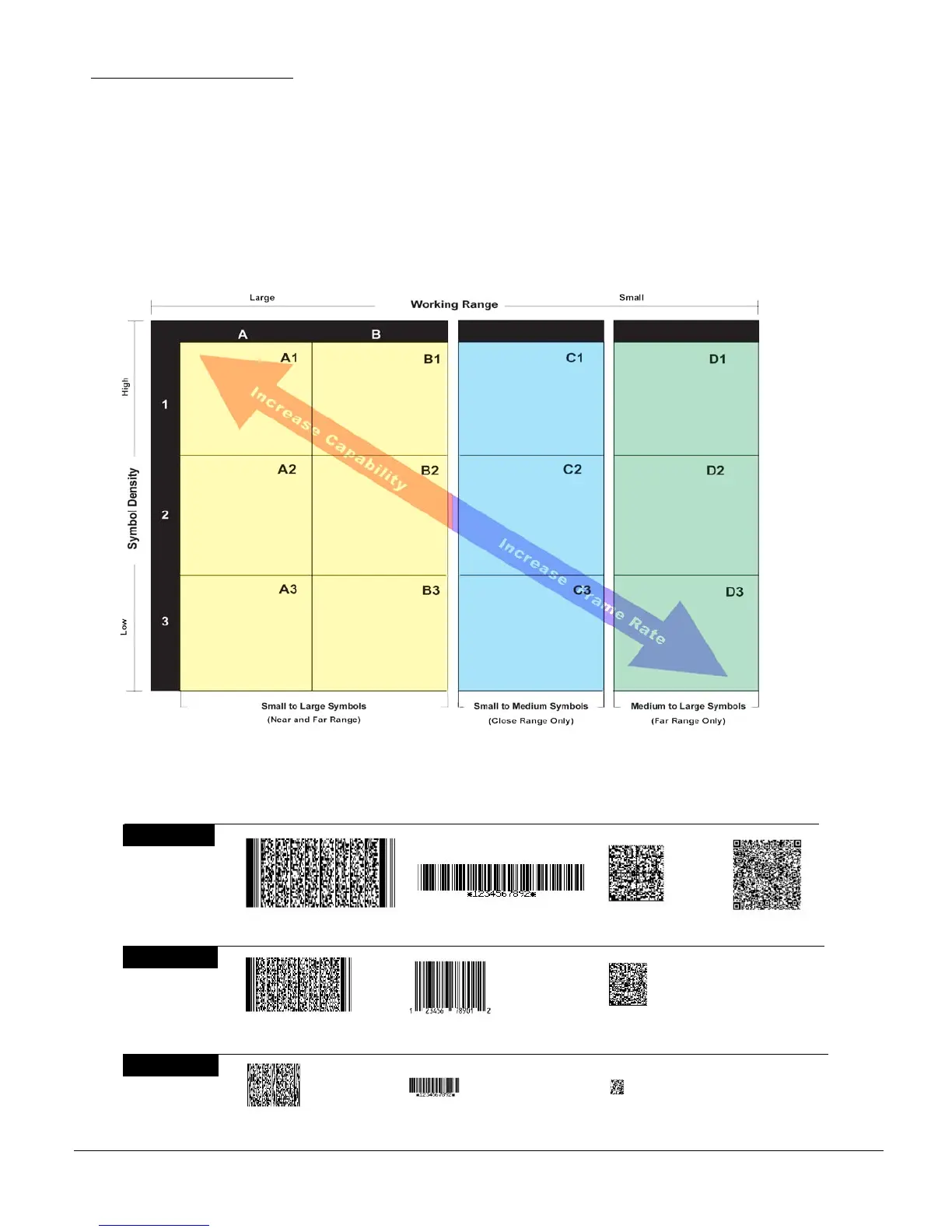

Look at the charts below to assess your environment. You may program each trigger on the CR2 unit for a
different environment by scanning codes from the next few pages.
3.1 - Introduction
Symbol Size - Here are a few approximate examples of large, medium and small symbols.
* Factory Default
Setting
* All triggers programmed to this setting at shipment
PDF 417 - 20+ mil Code 128 - 14.2+ mil Data Matrix - 15+ mil QR Code - 15+ mil
Large Symbols
Medium Symbols
Small Symbols
Data Matrix - 10+ milUPC/EAN/JAN - 12.5+ milPDF 417 - 15+ mil
Code 39 - 4.2+ milMicroPDF 417 - 7.5+ mil Data Matrix - 6.5+ mil
All of the codes below have been modified for representation purposes and do not scan.
Figure 3.1
