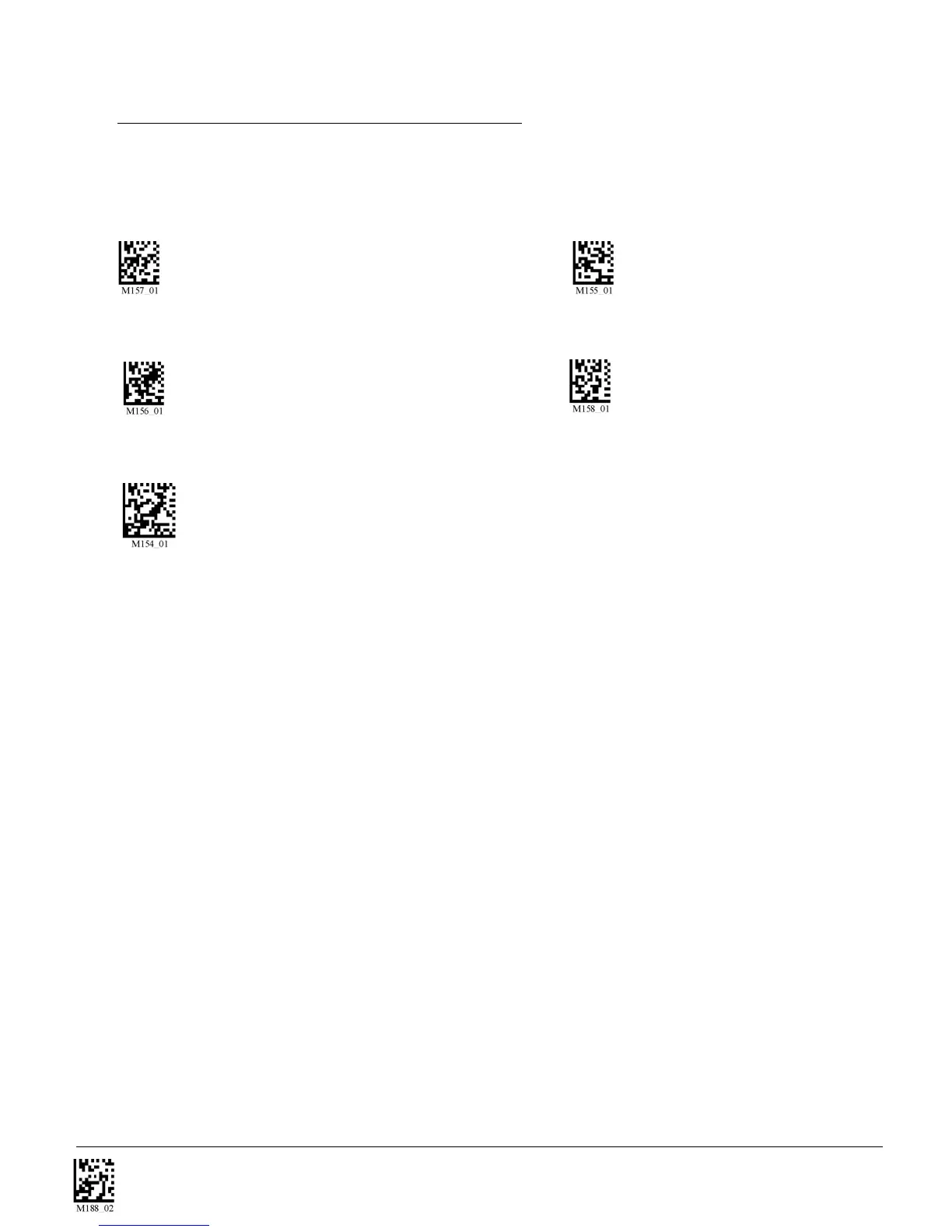

C001537_04_CR2 User Manual -
43
Save Settings
6.3 - Handle T
rigger Programming
Scan the following codes to set the handle trigger functionality:
Read Codes with Both Imagers (Default)
Read Code with Far-Field Imager ONL
Y
Read Code with Near-Field Imager ONL
Y
Upload Stored Data
Handle T
rigger T
ake Picture
Note:
If you program a trigger to another function, you will need to reset any performance code setting
from Chapter 3.
49
