Group: Load limit
Setpoint group ATTsettings Related FW 2.5.0
Range [units]
RPM, ECU:Load, CU:AI1, CU:AI2, CU:AI3, CU:AI4, CU:AI5, CU:AI6, CU:AI7,
CU:AI8, CU:AI9, AIO:IA1, AIO:AI2, AIO:AI3, AIO:AI4 [-]
Default value RPM YES
Step -
Comm object 11850 Related applications
Description

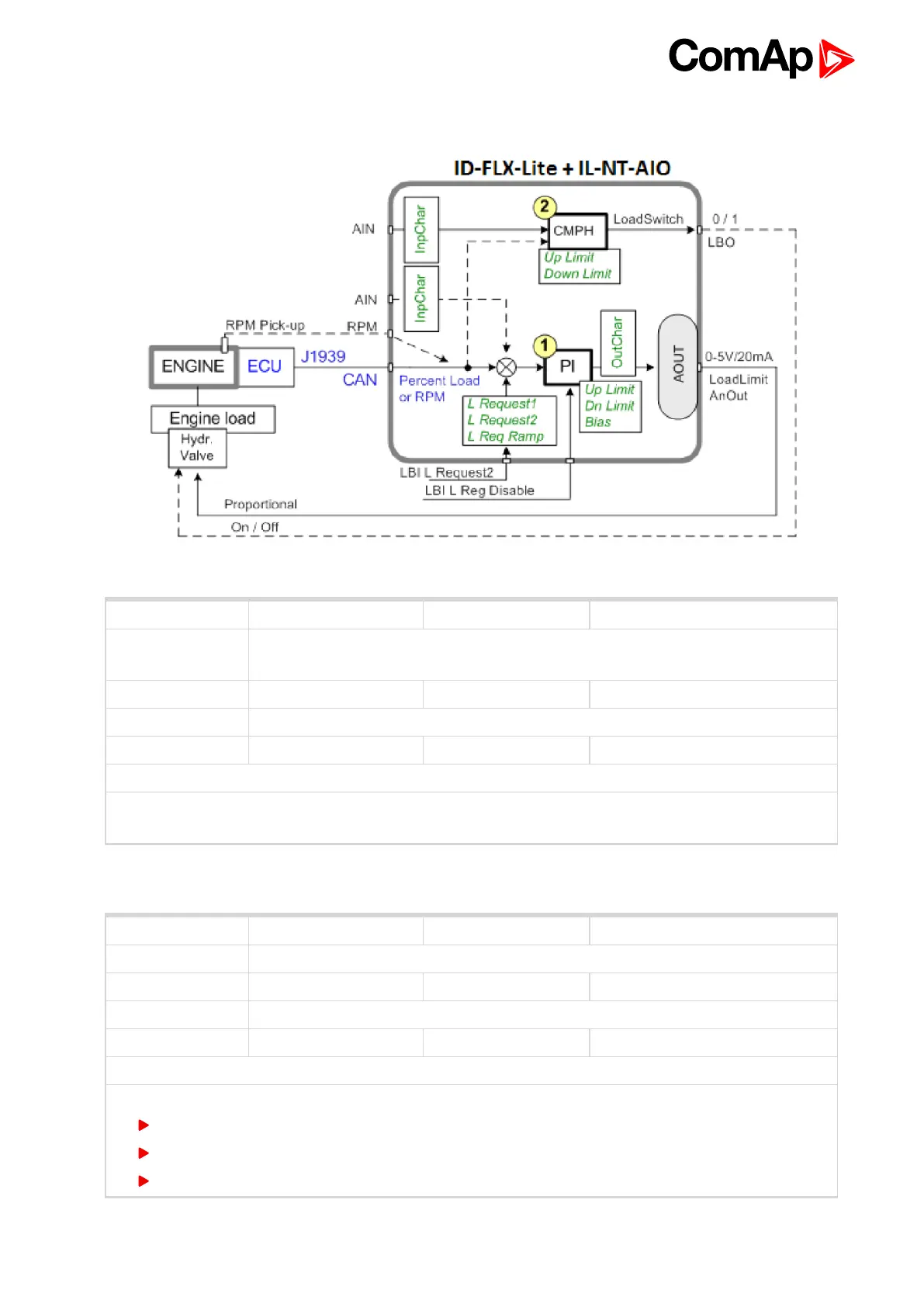

This setpoint is for Load limit PI loop analog input selection. Source can be adjusted from controller RPM
pick-up, ECU, analog inputs or from extension module inputs.
Load input
6 back to List of setpoints
Setpoint group Load limit Related FW 2.5.0
Range [units] 0 .. 10000 [-]
Default value 0 YES
Step 1
Comm object 11851 Related applications
Description
Constant Load limit PI regulator output. Load Bias is activated when:
Engine Sd protection is activated
LOADREGDISABLE (PAGE 191) = closed
Load input value is invalid (Sensor Fail)
Load Bias
6 back to List of setpoints
