When binary output breaker close/open is in steady state and breaker feedback is changed the breaker
failure is detected immediately (no delay).

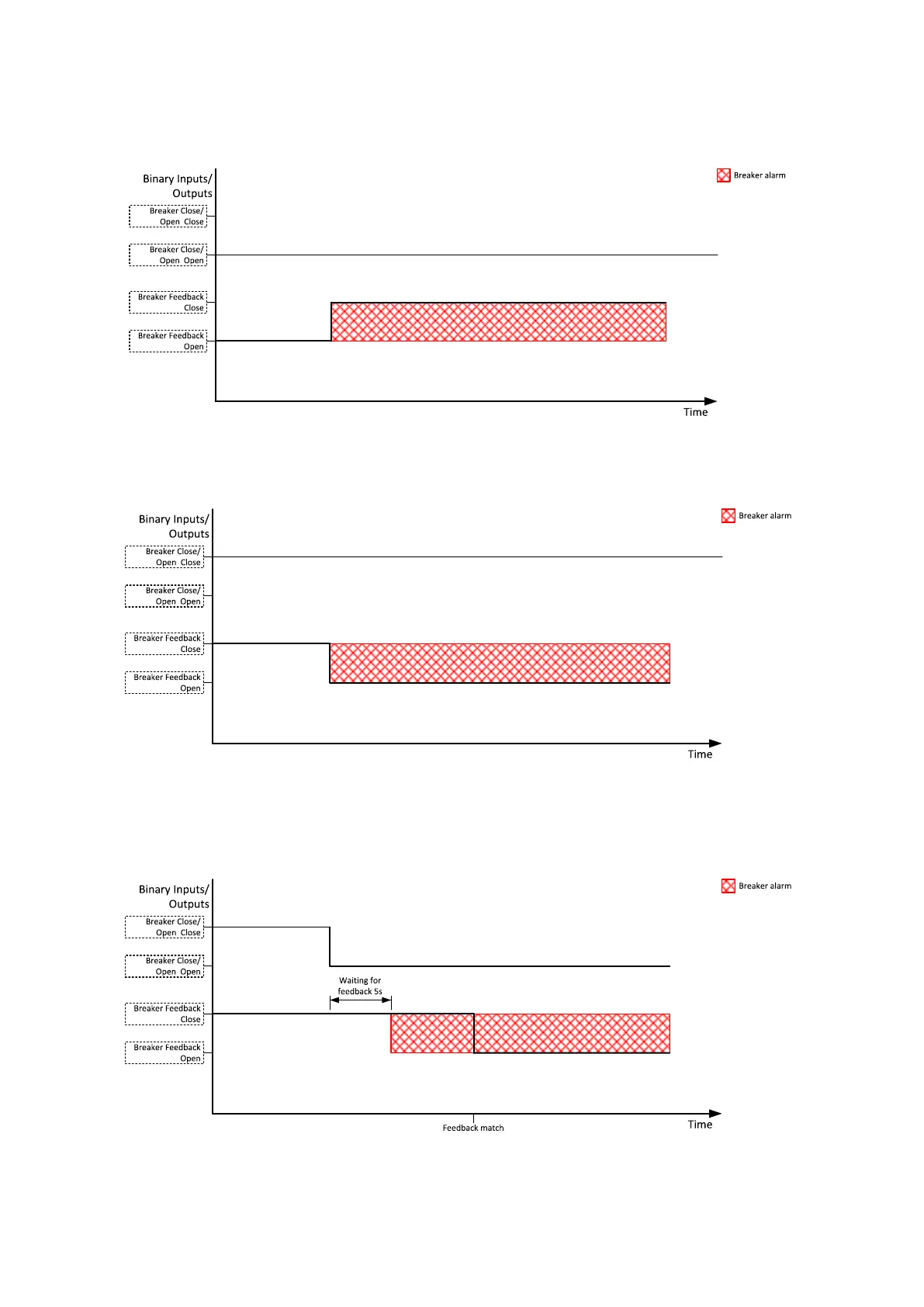

Image 5.20 Breaker failure – breaker close/open in steady position – open
Image 5.21 Breaker failure – breaker close/open in steady position – close
When binary output breaker close/open opens there is 5 sec delay for breaker failure detection.
Image 5.22 Breaker failure – breaker close/open opens
When binary output breaker close/open closes there is 5 sec delay for breaker failure detection.
