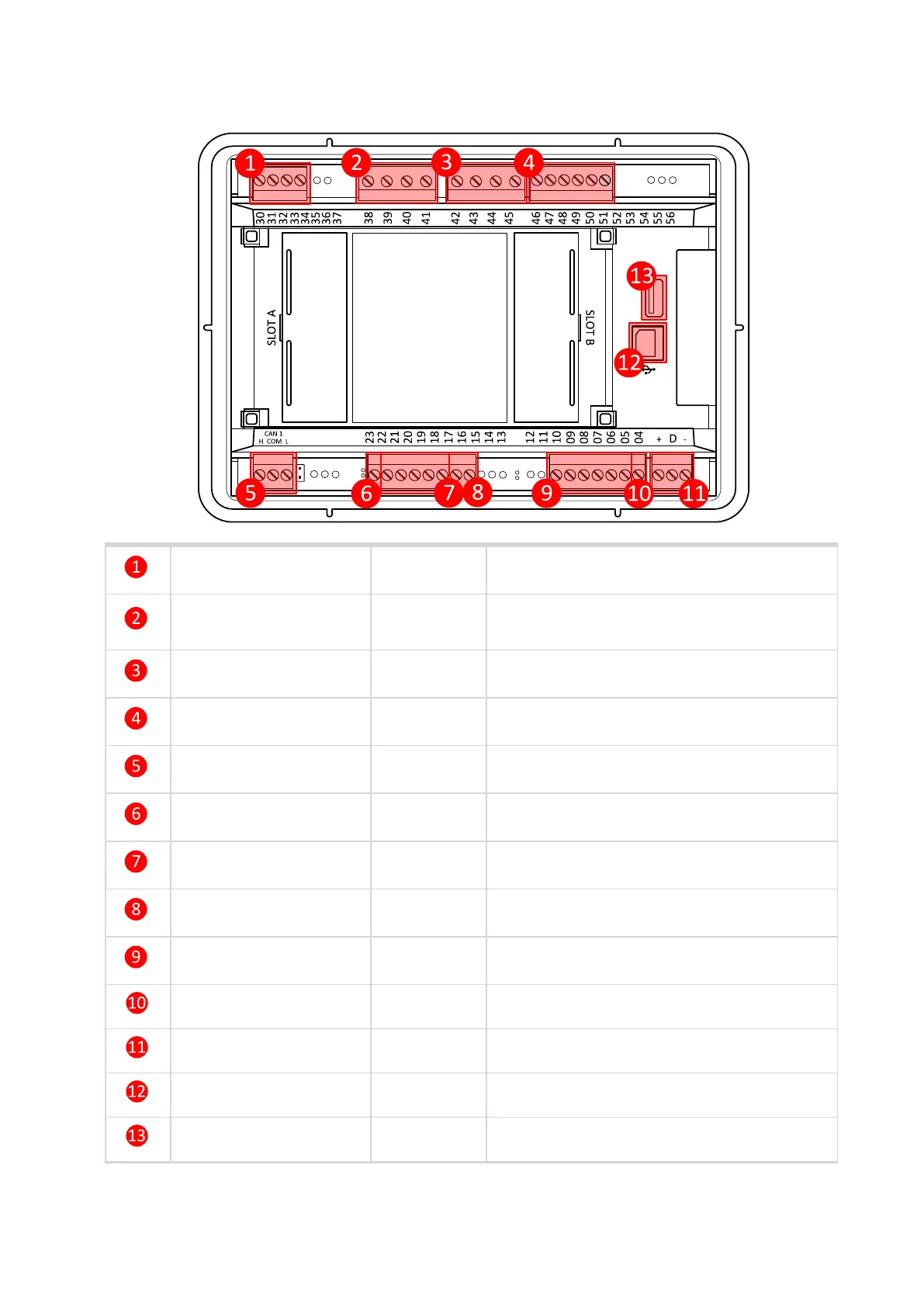

4.4 Recommended wiring
Current inputs 30-33 Current measurement wiring (page 29)
Generator voltage inputs 38-41
Voltage measurement AMF wiring (page 33)
Voltage measurement MRS wiring (page 41)
Mains voltage inputs 42-45 Voltage measurement AMF wiring (page 33)
Binary inputs 46-51 Binary inputs (page 49)
CAN1 H, COM, L CAN bus and RS485 wiring (page 53)
+5V 23
Analog inputs 18-22 Analog inputs (page 51)
RPM 16,17 Magnetic pick-up (page 48)
Binary outputs 05-10 Binary Outputs (page 50)
E-Stop 04 E-Stop (page 51)
Power supply "+", D, "-" Power supply (page 27)
