InteliLite4 AMF20 Global Guide
23
Note: Dimensions are in millimetres.
4.2.2 Mounting

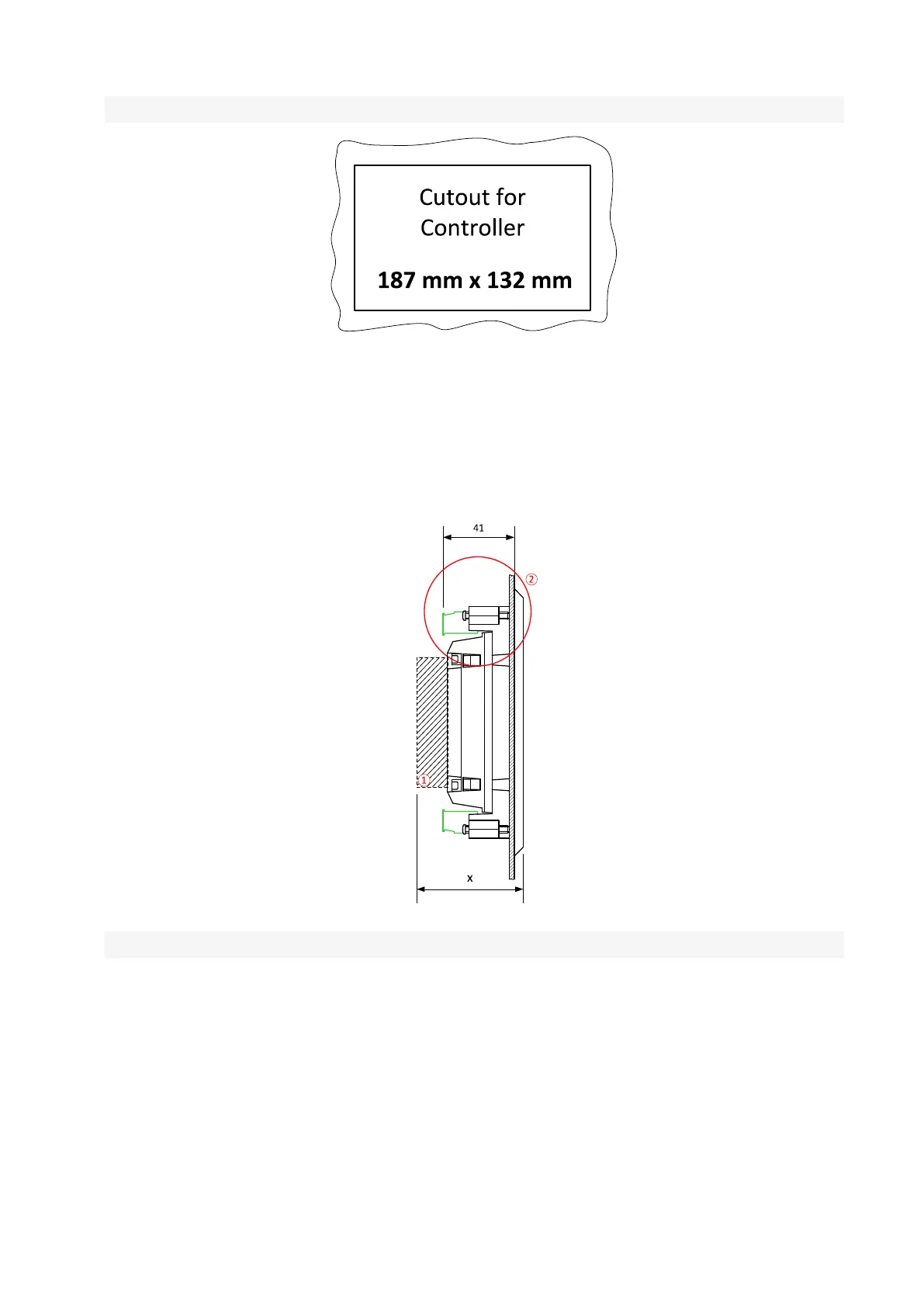

The controller should be mounted onto the switchboard door. Requested cutout size is 187 × 132mm. Use
the screw holders delivered with the controller to fix the controller into the door as described in pictures below.
Recommended torque for holders is 0.15N·m.
Panel door mounting
Note: Enclosure Type rating with mounting instruction – For use on a Flat surface of a type 1 enclosure.
