InteliLite4 AMF20 Global Guide
21
3.2 MRS – Manual Remote Start

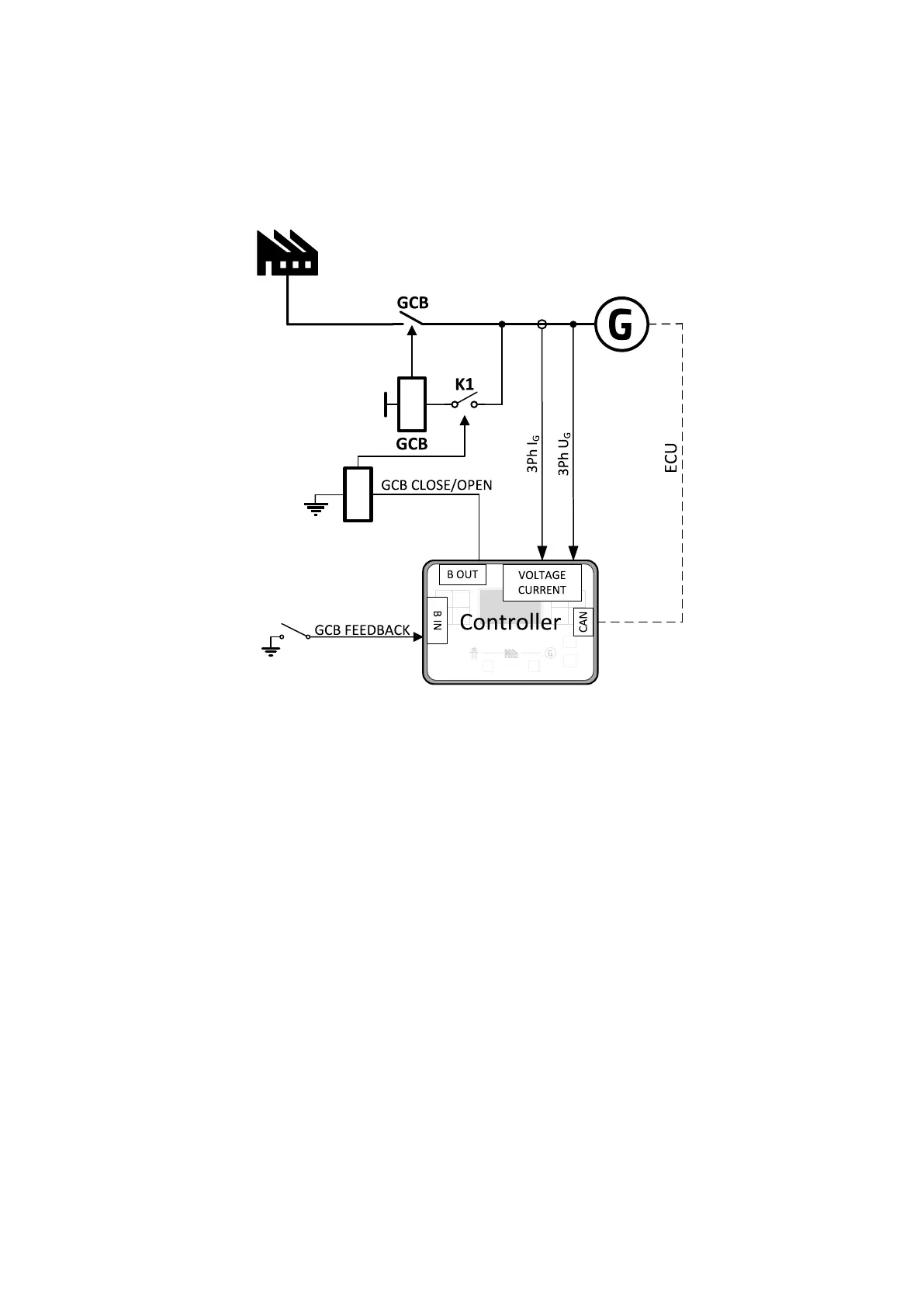

The typical schematic of Manual Remote Start application is shown below. The controller controls one
breaker – a generator breaker. Feedback from the breaker is not necessary. InteliLite 4 controllers can also
work without breaker feedback.
Image 3.2 MRS application overview
6 back to Applications overview
