Connection using WinScope1000

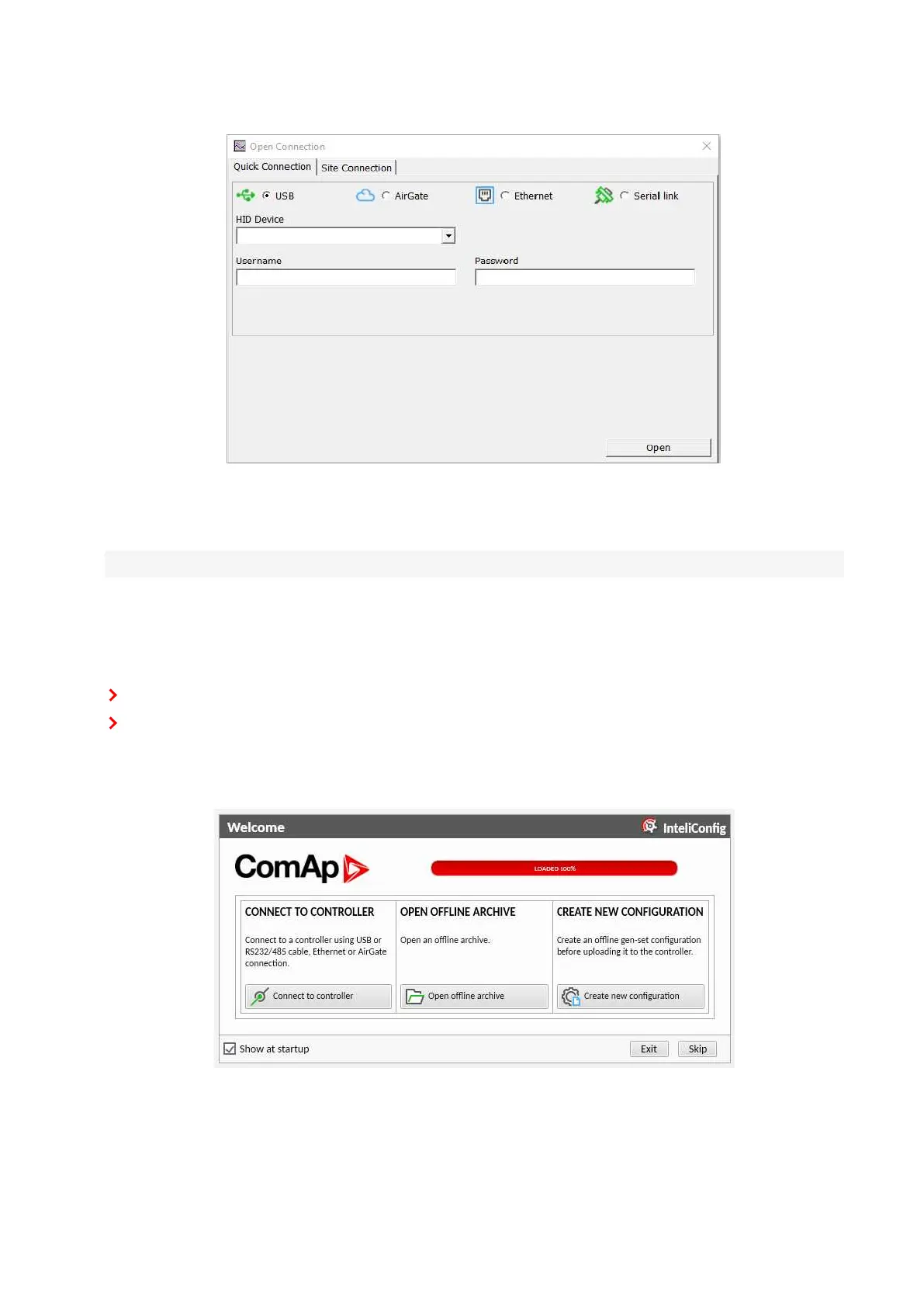

Image 5.3 WinScope1000 screen – select USB connection
Select your controller from the HIDDevice drop-down list.
Note: Username and password are not mandatory.
5.2.2 RS232/RS485
It is possible to connect to the controller using RS232 or RS485 direct connection (serial port or USB to
RS232/RS485 converter may be used). The following settings should be checked in the controller:
COM1 Mode (page 330) = Direct
Controller Address (page 224) must be set
Connection using InteliConfig
Image 5.4 First screen of InteliConfig – select connect to controller
